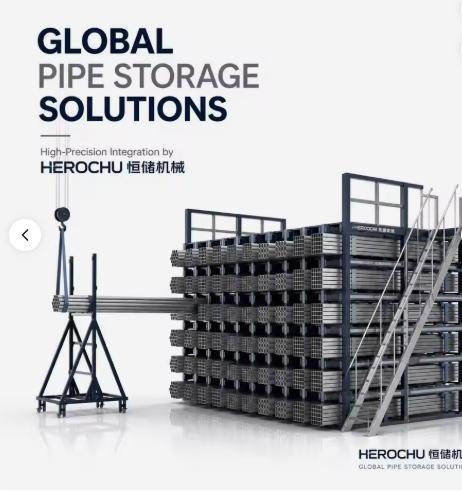

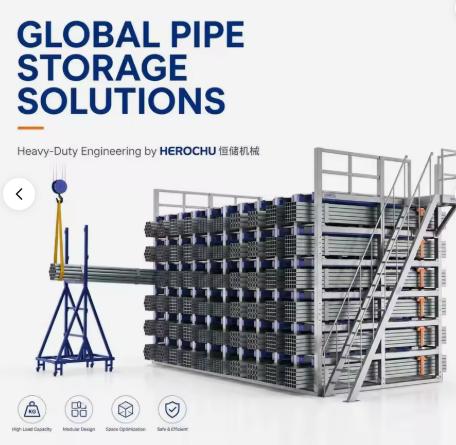

Vertical Space-Saving Honeycomb Pipe Profile Storage Rack

In high-density pipe storage environments, every square meter counts. The challenge of managing long-form inventory such as steel tubes, solid bars, and aluminum angles often leads to operational bottlenecks. Traditional floor stacking or standard cantilever systems frequently result in wasted vertical space and safety hazards.

The Vertical Space-Saving Honeycomb Pipe Profile Storage Rack from Herochu emerges as a definitive solution to these legacy storage issues, providing a high-density, vertical architecture that redefines warehouse efficiency.

The Engineering Behind the Honeycomb Design

The “honeycomb” geometry is an engineering marvel borrowed from nature to provide the highest strength-to-weight ratio possible. Herochu has adapted this hexagonal structural integrity into a heavy-duty steel framework.

By utilizing a Herochu honeycomb configuration, facilities can achieve a 45% increase in storage density compared to conventional racking. This system allows for the centralized storage of large quantities of single-dimension materials, ensuring that every square inch of the workshop is utilized effectively.

The honeycomb pattern arranges storage bays in a hexagonal geometry that minimizes gaps between pipes, allowing up to 45% more inventory in the same footprint compared to linear cantilever racks. This high-density storage approach eliminates wasted air space and organizes inventory into a precision-machined vertical grid.

Heavy-Duty Construction for Demanding Environments

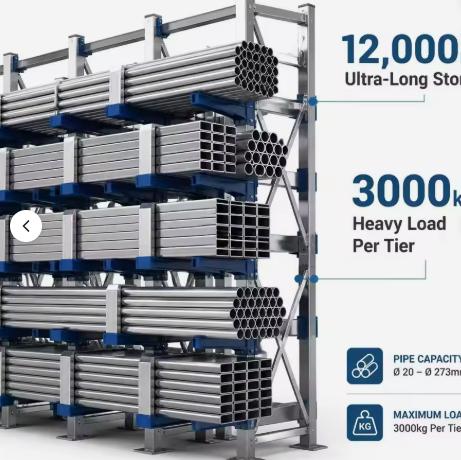

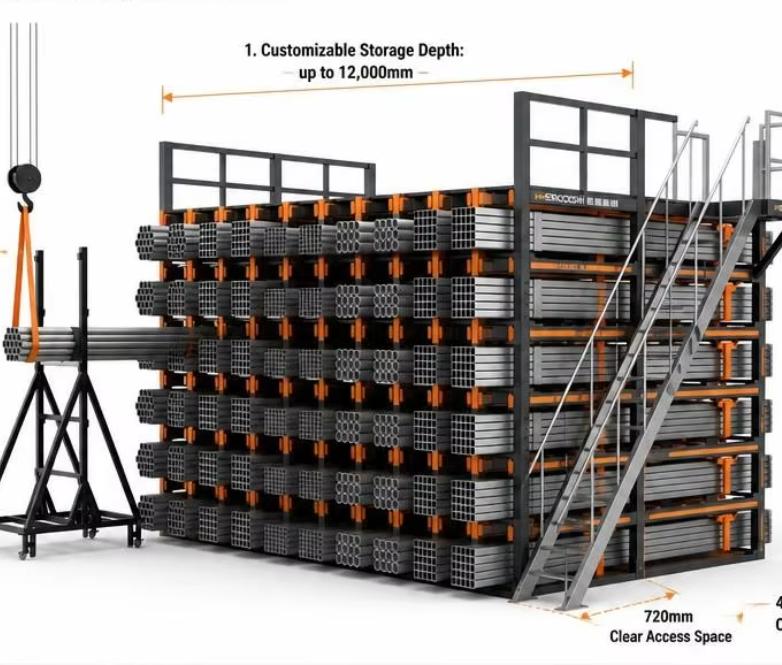

Herochu’s vertical honeycomb pipe profile storage rack is constructed from high-grade steel, designed to withstand the punishing environment of an active warehouse. Standard units are calibrated to store materials up to 6 meters in length with a robust loading capacity of 3 tons per storage unit. For specialized requirements, the system accommodates profiles up to 12,000mm in length with a maximum load of 3000kg per level.

The reinforced structural frame provides uncompromising support for oversized steel, aluminum, and structural alloy pipes, preventing material warping and sagging while ensuring permanent structural integrity under maximum load conditions.

Durable Powder Coated Finish for Long-Term Protection

The Herochu vertical honeycomb pipe profile storage rack features a durable electrostatic powder coating finish that provides exceptional corrosion resistance and long-term durability. This industrial-grade surface treatment protects against rust and environmental wear, making the system suitable for demanding industrial environments.

The powder coated finish not only extends the lifespan of the racking system but also maintains a professional appearance that reflects the quality standards of modern manufacturing facilities. The corrosion-resistant surface ensures that the rack remains functional and aesthetically pleasing even after years of heavy use in harsh warehouse conditions.

Vertical Space Optimization for Industry 4.0 Workflows

By organizing materials into a professional vertical grid, the Herochu honeycomb pipe profile storage rack effectively reclaims over 50% of valuable floor space, transforming cluttered warehouses into high-efficiency industrial hubs ready for Industry 4.0 workflows.

The vertical architecture eliminates hazardous floor piles, replacing them with orderly storage that improves safety, accessibility, and inventory management. This space-saving design is particularly valuable for facilities operating in high-cost real estate environments where every square meter of floor space represents significant operational expense.

Ideal for Diverse Industrial Applications

Herochu’s vertical honeycomb pipe profile storage rack is widely applied in diverse fields including military enterprises, electronics and electrical appliances, automotive manufacturing, aerospace, and logistics industries. It is the preferred solution for steel service centers, fabrication shops, and any facility requiring efficient, high-density storage of long profiles and pipes.
