Automatic Sheet Metal Vertical Storage System for Modern Fabrication Shops

For metal fabrication shops, job shops, and manufacturing facilities that process sheet metal and steel plates, floor space is perhaps the most valuable and constrained asset. Traditional ground stacking—where sheets are piled horizontally across the shop floor—consumes vast areas, creates safety hazards, and makes inventory tracking a perpetual challenge. The Automatic Sheet Metal Vertical Storage System from Herochu fundamentally changes this equation by building upward rather than outward, transforming underutilized vertical airspace into highly productive, densely packed storage capacity.

The Vertical Storage Revolution

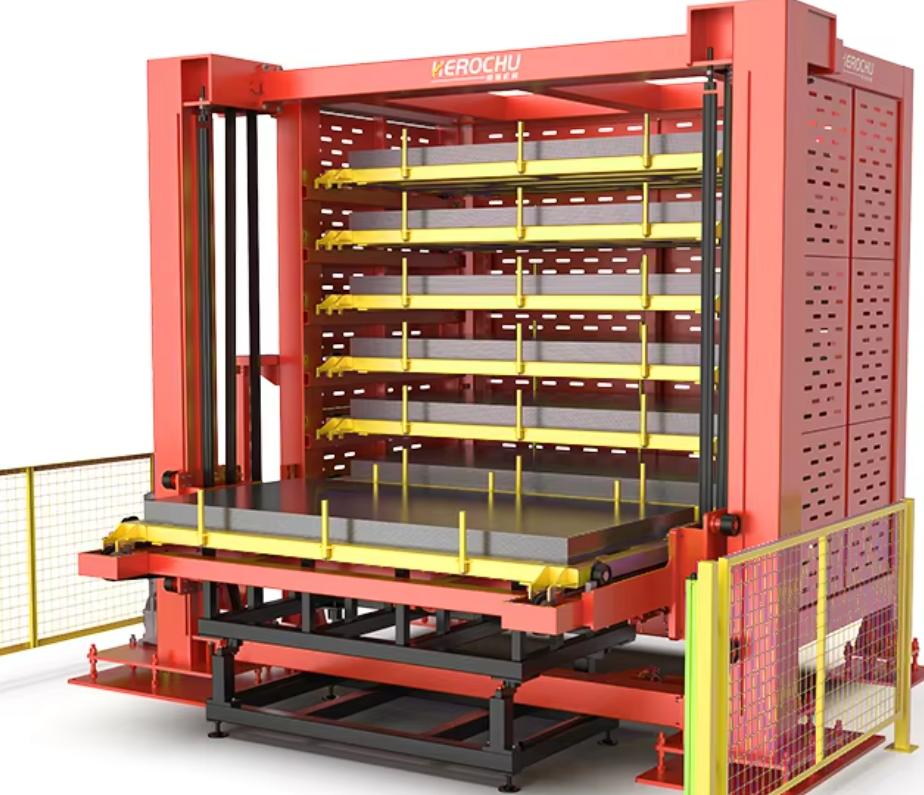

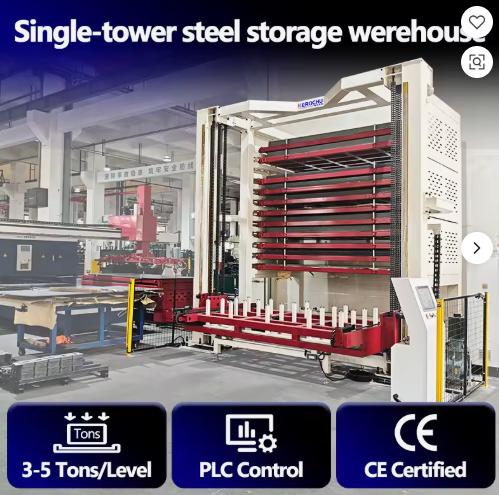

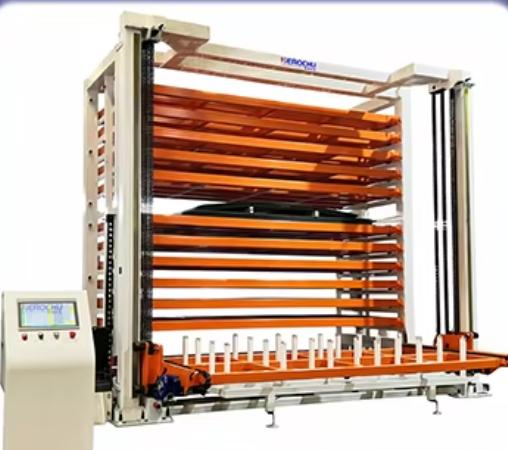

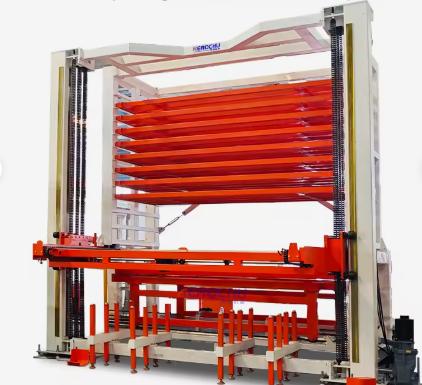

Herochu’s automatic sheet metal vertical storage system operates on a straightforward yet powerful principle: store vertically, retrieve horizontally. Each tower accommodates multiple storage trays arranged in tiers, with each layer engineered to support substantial loads. Standard configurations range from 8 to 13 floors, with the ability to expand up to 15 to 20 levels depending on ceiling height and throughput requirements. A fully loaded fifteen-tier tower with ten storage positions per face can hold 750 metric tons of plate material within a ground footprint smaller than a standard flatbed trailer.

This vertical approach delivers space savings that transform facility economics. By consolidating dozens of storage positions into a compact, height-optimized structure, the system reclaims up to 85 percent of floor area previously consumed by ground stacking or traditional racking. That reclaimed space can be redeployed for production equipment, value-added operations, material staging, or future expansion—directly improving the facility’s revenue-generating capacity per square meter.

Structural Engineering for Sustained Heavy Loading

The Herochu automatic sheet metal vertical storage system is not an overbuilt pallet rack with a motor bolted on. It is a purpose-engineered structural frame designed from the ground up for the unique demands of heavy plate storage. Primary columns are fabricated from Q235B high-strength steel in box-section profiles, sized to resist both vertical compression under full payload and lateral deflection during high-speed retrieval operations.

The system employs an integral bilateral frame combined with a triangular oblique span beam structure, with main load-bearing components manufactured from cold-rolled steel pipes that deliver high strength and excellent pressure resistance. This engineering approach ensures zero structural deformation even at maximum load capacities, maintaining positioning accuracy measured in single-digit millimeters throughout the system’s operational life.

Intelligent Control and Automated Retrieval

At the core of the automatic sheet metal vertical storage system is a sophisticated Programmable Logic Controller (PLC) paired with an intuitive touchscreen interface. This control architecture enables one-man operation for the entire storage and retrieval process—an operator can instantly locate, retrieve, or store plates through simple touchscreen commands.

The system incorporates several layers of intelligent automation:

Automatic weight detection ensures that each storage layer is never overloaded, preventing potential damage to both equipment and materials. Every sheet is scanned and weighed upon entry, with the system automatically verifying stock levels after each retrieval.

Real-time inventory tracking provides complete visibility into every sheet stored in the system—material type, gauge, dimensions, and precise location within the tower. This eliminates the manual counting, searching, and guesswork that plague traditional storage methods.

ERP and MES integration connects the storage system directly to the plant’s enterprise resource planning and manufacturing execution systems. Inventory updates occur automatically whenever material is added or removed, enabling accurate production scheduling, automated material reservations, and real-time consumption reporting.

Operational Performance Metrics

The automatic sheet metal vertical storage system delivers measurable operational improvements across multiple dimensions. Vertical lifting speed reaches 9 meters per minute, while the in-and-out exchange speed achieves 12 meters per minute. This translates to retrieval times measured in seconds rather than minutes—a requested plate can be delivered to the unloading station in under 90 seconds, four times faster than an average forklift cycle.

The system supports sheet dimensions including 3015, 4015, 4020, 6015, 6020, and 6025 mm, with per-layer load capacities ranging from 3 tons to 5 tons standard, customizable up to 10 tons for specialized applications. Heavy-duty chain drive with linear guide rails ensures smooth, reliable operation even under continuous 24/7 duty cycles.

Safety and Material Protection

Beyond space efficiency and operational speed, the automatic sheet metal vertical storage system delivers significant safety and quality benefits. By eliminating ground stacking, the system removes the tripping hazards, falling plate risks, and forklift congestion that characterize traditional sheet metal storage areas. Each sheet is cradled on dedicated adjustable supports that prevent surface scratching and internal stress, protecting material quality from receipt through production.

The system features roller tracks at both ends of each pallet, allowing easy movement even when fully loaded, with additional positioning safety devices ensuring secure, reliable operation. Traveling wheels and axles undergo blackening treatment to prevent rust and corrosion, extending service life in demanding industrial environments.

Integration with Automated Manufacturing

For facilities pursuing lights-out manufacturing or high-automation production lines, the automatic sheet metal vertical storage system serves as a critical enabler. The system is fully compatible with AGVs (Automated Guided Vehicles), RGVs (Rail Guided Vehicles), and 6-axis robotic loading arms for automated laser cutter feeding. This integration enables true 24/7 unmanned operation, with material flowing automatically from storage to production without human intervention.

Herochu (Jinan Constant Storage Machinery Co., Ltd.) has established itself as a trusted manufacturer in this specialized niche, delivering CE and ISO 9001-certified solutions backed by comprehensive pre-shipment load testing and global on-site installation support. With a manufacturing facility exceeding 10,000 square meters, Herochu brings both engineering expertise and production capacity to every project.
