Automatic Sheet Material Handling Equipment – Herochu 3‑Axis Robot for Metal, Wood & Plastic

Across industries—from automotive stamping to furniture manufacturing—sheet materials are the fundamental feedstock. Yet, moving these sheets from storage to processing remains stubbornly manual in many facilities. Operators lift heavy plates, stack them on carts, and feed them into saws, presses, or routers. This manual approach introduces risks of injury, surface damage, and inconsistent production rhythm. Herochu introduces a new class of automatic sheet material handling equipment: a three‑axis Cartesian robot designed specifically for flat sheets of metal, wood, and plastic. This article explores the engineering, benefits, and applications of this versatile handling system.

What Defines Automatic Sheet Material Handling Equipment?

True automatic sheet material handling equipment must perform five core functions autonomously:

• Pick – securely grasp a single sheet from a stack or pallet without double‑picking or dropping.

• Lift – raise the sheet vertically to clear surrounding obstacles.

• Translate – move the sheet horizontally over distance (from storage to machine bed or conveyor).

• Place – position the sheet with repeatable accuracy onto a target surface.

• Rotate (optional) – reorient the sheet for optimal processing orientation.

Herochu’s automatic sheet material handling equipment executes all these functions using a four‑axis kinematic chain: three linear axes (X, Y, Z) plus a rotating end‑actuator. Unlike gantry systems that require overhead steel structures, Herochu’s robot is floor‑mounted with a compact 300 mm total height, making it retrofittable into existing shops without modifying building columns or roof trusses.

Herochu Equipment Specifications for Diverse Materials

The equipment’s versatility comes from interchangeable grippers:

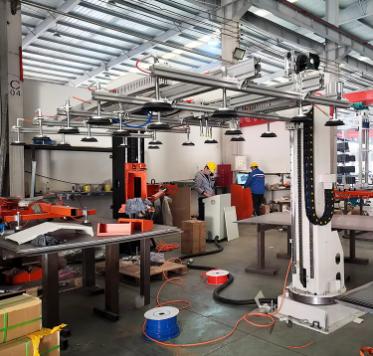

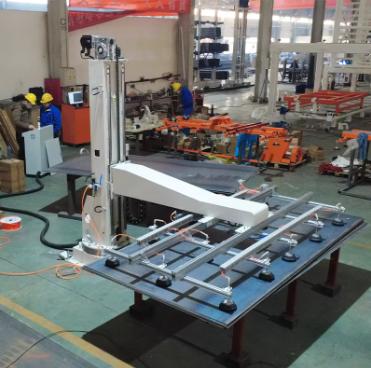

• Vacuum suction cups – best for non‑porous sheets: painted metal, glass, plastic, aluminum composite panels. Cup diameter and spacing are customized based on sheet weight and surface roughness.

• Mechanical clamp – recommended for wood panels, perforated metal, or sheets with oil contamination. Clamping force is servo‑controlled to prevent edge crush.

Why Choose Herochu Over Traditional Handling Methods?

1. Elimination of Sheet Scratches and Marring

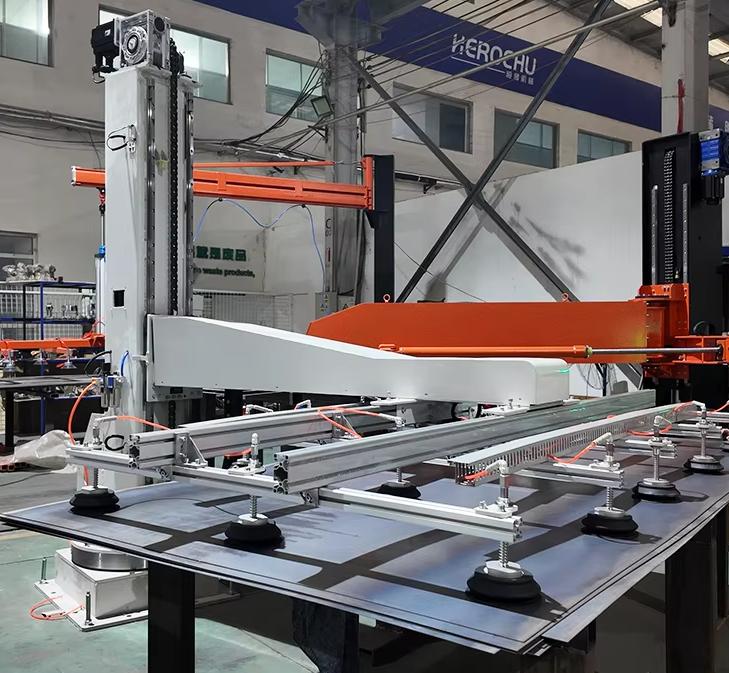

In industries like pre‑painted steel or polished stainless steel, surface quality is paramount. Manual handling using metal hooks or even gloved hands often leaves visible scratches. Herochu’s automatic sheet material handling equipment uses soft vacuum cups (made of nitrile rubber or silicone) that never contact the sheet’s face in a way that slides. The suction cup array is designed to lift the sheet vertically without dragging, preserving the surface finish. For wood and plastic, the mechanical clamp features polyurethane‑coated jaws that grip without denting.

2. Heavy Sheet Handling Without Worker Injury

Back injuries are the most common lost‑time injury in sheet fabrication. Herochu’s 300 kg model lifts plates that would otherwise require a crane and two workers. By automating the lifting and translation, the equipment removes workers from ergonomic hazards. The sprocket chain lift transmission provides smooth vertical motion without sudden drops, even under full load.

3. Precision Placement for Downstream Processes

Many sheet processing machines (press brakes, laser cutters, CNC routers) require the sheet to be positioned within ±0.5 mm for proper operation. Herochu’s ±0.05 mm repeatability exceeds these requirements. The equipment can be integrated with vision guidance or mechanical stops to fine‑tune placement. For example, when feeding a shear, the robot places the sheet against backgauge fingers automatically.

4. 24/7 Operation with Minimal Supervision

Once programmed, Herochu’s automatic sheet material handling equipment runs continuously. The servo drives and gear‑based transmission require no daily lubrication or adjustment. The equipment alerts the operator only when the source stack is empty or when a suction cup loses vacuum. With a 1‑year warranty and factory machinery test report provided, reliability is guaranteed.

Application Scenarios Across Materials

Metal Sheets (Steel, Aluminum, Copper)

In a metal stamping press line, Herochu equipment picks blanks from a destacker and feeds them into the press’s automatic centering station. For laser cutting, the robot loads raw sheets and unloads finished parts. The 360° base rotation allows the same robot to serve two machines: pick from a left‑side rack, place onto a right‑side laser bed.

Wood Panels (Plywood, MDF, Particle Board)

Woodworking shops often handle 4×8 ft (1.22×2.44 m) MDF sheets weighing up to 70 kg. Herochu’s 100 kg model is ideal. Mechanical clamps with wide padded jaws prevent edge crushing. The robot can feed a CNC router or edge banding machine. Because wood dust is present, Herochu equips the robot with sealed linear guides and vacuum filters for the suction cups.

Plastic Sheets (Acrylic, Polycarbonate, PVC)

Plastic sheets are prone to scratching and static cling. Herochu’s vacuum system includes anti‑static nozzles and soft silicone cups. The Z‑axis lift speed is adjustable to avoid suction marks on soft plastics. The equipment handles sheet thicknesses from 0.5 mm to 20 mm.

Technical Deep Dive: The Four Axes of Herochu Handling Equipment

Understanding the robot’s motion axes helps engineers integrate it into production lines:

• Axis 1 – Base Rotation (360°) : Provides the ability to swing between multiple workstations. For example, a single Herochu unit can pick from two different material racks and place onto one processing machine, or pick from one rack and place onto two alternating machines (reducing idle time).

• Axis 2 – Elbow Lift (270°) : This is the main vertical motion for accessing different stack heights. The sprocket chain transmission offers high force density, lifting 300 kg at speeds up to 1000 mm/s. The 270° range means the arm can reach from floor level (lowest pallet) up to above the machine bed.

• Axis 3 – Wrist Tilt (270°) : Tilts the gripper assembly to approach sheets from an angle. This is essential when sheets are stored on inclined racks or when clearance is limited. It also allows the robot to “sweep” sheets off a stack after picking to ensure single‑sheet separation.

• Axis 4 – End‑Actuator Rotation (360° continuous) : Rotates the gripped sheet in the horizontal plane. This feature enables the robot to align the sheet’s orientation to match the nest layout on a laser cutter or the grain direction on a wood router. It also allows picking from multiple stacks with different sheet orientations in one cycle.

Operational Parameters and Customization

Herochu’s automatic sheet material handling equipment is available with X/Y/Z working ranges of 50×50×50 mm, 100×100×100 mm, 150×150×150 mm, 200×200×200 mm, 250×250×250 mm, or 300×300×300 mm. The “working range” refers to the fine positioning envelope after the gross motion—essentially the robot’s ability to adjust placement within that cube.

Horizontal load capacity is up to 30 kg for auxiliary tools (e.g., a camera or sensor mounted on the wrist). Side‑mounted load up to 10 kg allows attaching cable carriers or air lines.

The equipment undergoes a video outgoing‑inspection before shipment. Each unit is tested with a full‑load cycle (100/200/300 kg depending on model) to verify accuracy and stability. Production capacity of Herochu’s facility is 98% on‑time delivery, with origin in Shandong, China.

Economic Justification

For a typical shop handling 500 sheets per week (average weight 150 kg), manual handling consumes 40 labor hours at $25/hour=$1,000 per week. A Herochu 200 model automatic sheet material handling equipment costs approximately $35,000–45,000dependingonoptions.Simplepaybackisunderoneyearwhenfactoringinreducedinjuryclaims(averagebackinjurycost$40,000+), reduced scrap (scratch elimination saves 2–5% material cost), and increased throughput (robot runs 24/7).

Final Recommendation

Herochu’s automatic sheet material handling equipment is not a compromise—it is a purpose‑built solution for flat sheet logistics. With three payload capacities, four axes of motion, sub‑millimeter accuracy, and a footprint that fits tight spaces, it outperforms manual handling, gantry systems, and even many six‑axis robots for sheet‑specific tasks. For operations processing metal, wood, or plastic sheets, Herochu delivers a reliable, ROI‑positive automation platform.
