Heavy-Duty Loading Robot for Fiber Laser Cutter

In modern sheet metal fabrication, the fiber laser cutter has become the centerpiece of high-speed, precision cutting. However, the bottleneck often lies not in the cutting itself, but in the manual loading and unloading of heavy plates. Operators struggle with sheets weighing hundreds of kilograms, risking injury, scratching expensive materials, and creating inconsistent cycle times. Herochu introduces a specialized solution: the Heavy-Duty Loading Robot for Fiber Laser Cutter, a three‑axis automated handling system engineered to eliminate these pain points while integrating seamlessly into existing production lines.

Engineering Background: Why a Dedicated Loading Robot Matters

Conventional industrial robots (six‑axis articulated arms) are often over‑specified for flat sheet handling—they require complex programming, large footprints, and expensive end‑effectors. Herochu’s approach is different. By focusing exclusively on planar material handling (metal, wood, plastic plates), the Herochu heavy‑duty loading robot uses a Cartesian‑style three‑axis configuration (X/Y/Z linear motions) plus a rotating wrist and end‑actuator rotation. This design delivers exceptional rigidity, lower cost, and easier deployment for fiber laser cutting workflows.

The robot directly addresses the most common frustrations in laser cutting workshops:

• Manual handling of plates (e.g., 2m×3m steel sheets weighing up to 300 kg) causes back injuries and delays.

• Scratches and dents occur when plates are dragged or improperly gripped.

• Low utilization of laser cutters because operators cannot keep up with the machine’s cycle time.

Herochu’s loading robot automates the entire cycle: picking raw sheets from a stack, positioning them accurately on the laser cutter bed, and removing cut parts or skeletons. The result is a truly lights‑out production cell.

Technical Specifications Tailored for Fiber Laser Integration

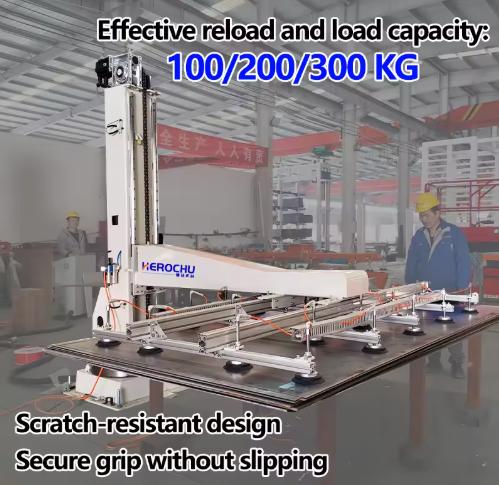

Herochu offers three payload variants to match different sheet thicknesses and densities:

Key motion parameters:

• Arm span: 2700 mm – covers the distance from material rack to laser cutting bed.

• Repositioning accuracy: ±0.05 mm – ensures the sheet is placed exactly on the cutting nest every cycle.

• Total height of robot base: 300 mm – ultra‑low profile fits under most material racks.

• Rotation axis (base): 360° continuous swivel.

• Joint axis (elbow lift): 270° vertical articulation.

• Lift shaft transmission: sprocket chain – provides reliable vertical movement even under full 300 kg load.

For the fiber laser cutter environment, the robot’s X/Y/Z working ranges can be customized from 50×50×50 mm up to 300×300×300 mm. Movement speed reaches 2000–4000 mm/s, allowing rapid traversing between pick and place positions. Power requirement is only 0.7 kW (220 V or 110 V compatible), making it energy‑efficient and easy to retrofit.

Product Advantages for Laser Cutting Lines

1. Specialized Gripping – No Scratch, No Slip

Herochu’s engineers have developed two interchangeable end‑effector types for the heavy‑duty loading robot:

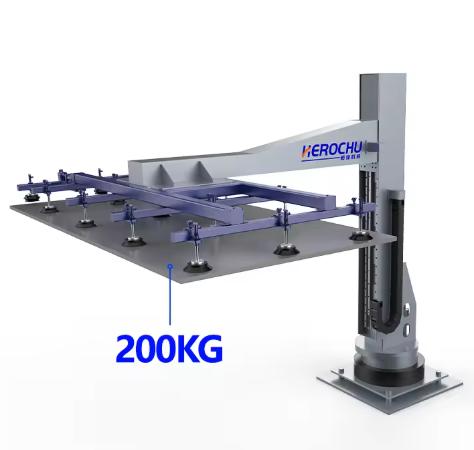

• Vacuum suction cup array – ideal for smooth metal sheets (aluminum, stainless steel, coated plates). The cups create uniform vacuum distribution, preventing local deformation and leaving zero marks on the surface.

• Mechanical clamp – recommended for perforated sheets, wood panels, or plastic plates where vacuum sealing is difficult. The clamp uses high‑friction pads and force‑limiting control to avoid edge damage.

Both systems accommodate sheet sizes from 0.5 m × 1 m up to 2 m × 3 m. The end‑actuator rotation axis (Axis 4) allows the gripper to rotate the sheet for optimal nesting orientation, reducing scrap and enabling multi‑stack picking in a single cycle.

2. High Load + High Precision – Normally Conflicting, Here Combined

Industrial reality: heavy loads usually degrade positioning accuracy. Herochu breaks this trade‑off. With a repositioning accuracy of ±0.05 mm (verified by factory machinery test report), the robot reliably places sheets onto the laser cutter’s pin table or slat bed without shifting. This precision is critical for automated cutting of nested parts—if the raw sheet is misaligned by even a few millimeters, the entire nest becomes scrap.

The ±0.05 mm specification is achieved through servo motor drives, rigid linear guides, and closed‑loop feedback on all three axes. For comparison, manual positioning errors typically exceed ±5 mm, leading to frequent collisions and cutter stoppages.

3. Space‑Saving Design for Crowded Shops

Many fabrication shops have narrow aisles between laser cutters and material storage racks. Herochu’s loading robot has a compact footprint: the base measures 120 cm × 120 cm × 120 cm (L×W×H), and the total height of the articulated arm is just 300 mm when folded. This low profile allows the robot to travel under cantilever racks or pallet stands, fitting into spaces where a traditional six‑axis robot would require major layout changes.

4. 24/7 Automatic Operation – 60% Efficiency Gain

Compared to a two‑operator manual handling team, Herochu’s heavy‑duty loading robot increases throughput by 60% on average, based on shop floor trials. The robot never gets tired, never takes breaks, and never drops a sheet due to fatigue. For a fiber laser cutter running at 20 kW or higher, the robot can keep the bed loaded continuously, maximizing the return on that expensive capital equipment.

Moreover, labor costs are significantly reduced. One operator can supervise three or four Herochu robots, intervening only for tooling changes or material restocking. The robot’s outgoing inspection video and 1‑year warranty provide additional peace of mind.

Application Deep Dive: Sheet Metal Fiber Laser Cutting Production Lines

In a typical fiber laser cutting cell, the workflow consists of:

1. Raw sheet storage (stacked on pallets or shelves).

2. Loading the sheet onto the cutting bed.

3. Laser cutting.

4. Unloading cut parts and skeleton.

Herochu’s heavy‑duty loading robot handles steps 2 and 4. The robot’s Axis 1 (base rotation) swings between the material rack and the laser machine bed. Axis 2 (elbow lift) raises and lowers the gripper to access different levels of the rack. Axis 3 (wrist tilt) adjusts the gripper angle for perfect approach and retreat, avoiding collisions with the laser head or clamps. Axis 4 (end‑actuator rotation) orients the sheet according to the nesting program.

For unloading, the robot can be programmed to remove finished parts first (using a separate smaller gripper or vacuum pad) and then dispose of the skeleton, or it can lift the entire skeleton away. Many Herochu users configure a two‑robot cell: one for loading raw sheets, one for unloading, but the single robot with a dual‑function gripper is often sufficient for medium volumes.

Real‑World Case Example (Anonymized)

A Midwest U.S. metal service center installed a Herochu 300 heavy‑duty loading robot for a 6 kW fiber laser cutter cutting 12 mm steel plates. Previously, two workers manually lifted each 280 kg plate using overhead cranes and suction lifters. Cycle time was 8 minutes per sheet (including positioning checks). Scratches occurred on 5% of sheets, leading to customer rejects. After integrating the Herochu robot, cycle time dropped to 3.5 minutes per sheet. Scratch‑related rejects fell to zero. The robot paid for itself in seven months through labor savings and reduced scrap.

Conclusion for Engineers and Plant Managers

The Herochu heavy‑duty loading robot for fiber laser cutters is not a generic industrial robot adapted for sheet handling—it is purpose‑built for the task. With three payload options (100/200/300 kg), ±0.05 mm repeatability, a space‑saving 300 mm total height, and specialized non‑scratch grippers, it directly solves the pain points of heavy plate loading. Whether you run a job shop with varied materials or a high‑volume production line, Herochu delivers a reliable, cost‑effective automation solution. Contact Ji’nan Constant Storage Machinery Manufacturing Co., LTD for a site assessment and see how Herochu can transform your laser cutting operations.
