Automated Flat Sheet Handling Systems – Herochu 4‑Axis Robot for Unmanned Factories

Flat sheet processing—whether cutting, bending, stamping, or welding—is the backbone of countless manufacturing sectors. Yet, for decades, the handling of flat sheets has remained a partially manual operation. Even shops with CNC machines often rely on workers to load and unload sheets. The arrival of fully automated flat sheet handling systems changes this paradigm. Herochu has developed a compact, high‑precision four‑axis robot system specifically designed for flat sheets (metal, wood, plastic, composite) that integrates with existing production lines to create truly unmanned workflows. This article provides a comprehensive technical overview of Herochu’s automated flat sheet handling systems, including architecture, performance data, application examples, and ROI analysis.

Defining Automated Flat Sheet Handling Systems

An automated flat sheet handling system is a material transport solution that picks, lifts, moves, positions, and releases flat sheet goods without human intervention. Unlike generic palletizers or gantry loaders, a dedicated flat sheet handling system must accommodate:

• Sheet dimensions ranging from small blanks (0.5×1 m) to large formats (2×3 m).

• Sheet thicknesses from 0.5 mm (thin gauge) to 20+ mm (heavy plate).

• Diverse materials with different surface properties (magnetic vs non‑magnetic, porous vs non‑porous).

• High cycle rates (one pick/place every 15–30 seconds).

• Integration with machine controllers (laser, plasma, punch, shear, press brake).

Herochu’s automated flat sheet handling systems meet all these requirements through a four‑axis robot architecture (X/Y/Z linear plus rotation) plus a specialized end‑actuator.

Herochu System Architecture

The Herochu automated flat sheet handling system consists of these core modules:

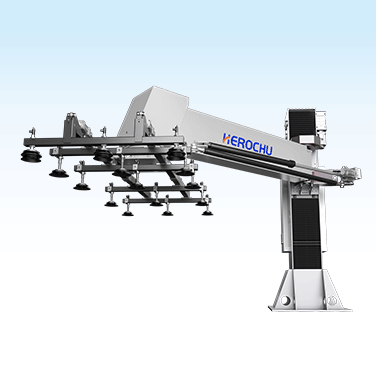

1. Robot Manipulator

• Three linear axes (X, Y, Z) driven by servo motors and precision ground gears.

• Base rotation axis (360° continuous) for multi‑station service.

• Elbow joint (270°) for vertical reach.

• Wrist tilt (270°) for angled approach.

• End‑actuator rotation (360° continuous) for sheet orientation.

2. End‑Effector (Gripper)

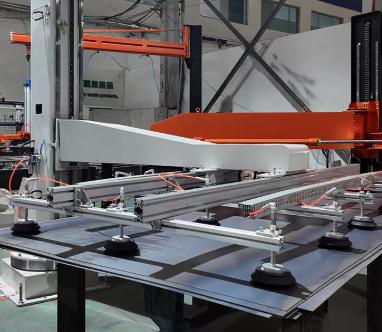

• Vacuum suction cup array (custom cup count and pattern) – for smooth, non‑porous sheets.

• Mechanical clamp with force feedback – for perforated, oily, or rough sheets.

• Quick‑change interface – swap grippers in under 2 minutes.

3. Control Cabinet

• Integrated PLC with touchscreen HMI.

• Ethernet/IP, Profinet, or Modbus TCP communication.

• Safety relays (category 3, PL d).

4. Peripheral Integration Kit

• Sheet separation blower (for thin sheets that stick).

• Double‑sheet detector (ultrasonic or magnetic).

• Centering station with adjustable guides.

Technical Performance Data

The ±0.05 mm repeatability is verified by a machinery test report provided with each unit. The video outgoing‑inspection documents the robot performing a full cycle at rated load.

Unique Capabilities of Herochu Automated Flat Sheet Handling Systems

1. Scratch‑Free Handling Across Materials

Surface quality is a primary concern for flat sheet processors. Herochu’s vacuum gripper system uses multiple independent vacuum circuits. If one cup loses suction (e.g., over a hole), the remaining cups hold the sheet. Cup materials are selected per application:

• Nitrile rubber for oily steel sheets.

• Silicone for high‑temperature sheets (e.g., just after laser cutting).

• Anti‑static conductive cups for electronics enclosures.

For mechanical clamping, the jaws are coated with polyurethane or nylon. Clamping force is regulated by the servo motor torque, preventing edge crushing on soft aluminum or plastic.

2. Handling of Diverse Sheet Sizes Without Changeover

The robot’s gripper is designed with a movable frame. For small sheets (0.5×1 m), only the inner cups activate. For large sheets (2×3 m), all cups engage. The system automatically detects sheet dimensions via laser sensors and adjusts cup activation pattern. This eliminates manual changeover when switching product sizes—critical for job shops with high mix.

3. Multi‑Stack Picking in One Cycle

Because Axis 4 (end‑actuator rotation) can rotate the gripper head continuously, the robot can pick one sheet from Stack A, rotate 180°, pick another sheet from Stack B (if within arm span), and then place both sheets onto a processing machine. This feature doubles throughput for dual‑pallet laser cutters or press lines that process two blanks simultaneously.

4. Seamless Integration with Laser Cutters, Punches, and Shears

Herochu provides pre‑configured communication protocols for major machine brands. The robot receives a “request sheet” signal from the machine, retrieves the specified sheet, and sends a “sheet placed” confirmation. For laser cutters, the robot can also unload cut parts by switching to a smaller suction cup tool stored on a tool rack.

Application Deep Dive: Unmanned Flat Sheet Processing Cell

A typical Herochu automated flat sheet handling system operates as follows:

1. Start condition: A pallet of raw sheets (e.g., 200 sheets of 1.5 mm stainless steel, 1×2 m) is placed in the pick zone. The robot’s inventory is updated via barcode scan.

2. Machine trigger: The fiber laser cutter completes its previous cycle and sends a “request load” signal over Ethernet.

3. Pick sequence:

   • Robot moves Axis 1 (base rotation) to align with pallet.

   • Axis 2 (elbow lift) lowers the gripper to the top sheet.

   • Air blast separates the top sheet from the stack (prevents double pick).

   • Vacuum cups engage; sensor confirms sheet attached.

   • Axis 2 lifts the sheet; Axis 1 rotates toward the laser cutter.

4. Place sequence:

   • Axis 3 (wrist tilt) adjusts gripper angle to match the laser bed’s pin table.

   • Axis 4 (rotator) turns the sheet to correct nesting orientation.

   • Z‑axis fine positioning (within the selected working range, e.g., 100×100×100 mm) places sheet onto pins.

   • Vacuum releases; robot retracts.

5. Unload sequence (optional):

   • After cutting, the robot returns with a different gripper (or the same gripper with smaller cups) to remove finished parts and skeleton.

The entire load/unload cycle takes 20–40 seconds, depending on distance. The laser cutter achieves >95% utilization, compared to 60–70% with manual loading.

Space‑Saving Design for Factory Floors

Many automated flat sheet handling systems require overhead gantries or large six‑axis robots with heavy bases. Herochu’s system has a total folded height of just 300 mm. The robot can be mounted on a mobile base or fixed to the floor. The small 120 cm × 120 cm footprint (L×W×H of the control cabinet and base) fits into existing layouts. For narrow aisles, the 360° base rotation allows the robot to “reach around” obstacles.

Installation and Factory Acceptance

Herochu automated flat sheet handling systems are manufactured in Shandong, China, by Ji’nan Constant Storage Machinery Manufacturing Co., LTD. Each system undergoes:

• Machinery test report – verifying all safety circuits and motion accuracy.

• Video outgoing‑inspection – recording a full production cycle at rated load.

• Burn‑in test – 24 hours continuous operation.

Production capacity is 98% on‑time delivery. Core components (gears, servo motors, chain drives) are sourced from ISO‑certified suppliers. The 1‑year warranty covers parts and labor.

Conclusion

Herochu’s automated flat sheet handling systems represent a leap forward in material automation. With three payload classes (100/200/300 kg), four motion axes, ±0.05 mm repeatability, and a compact 300 mm folded height, these systems outperform manual handling and traditional robots in speed, precision, and flexibility. Whether you operate a laser cutting job shop, a stamping plant, or a woodworking facility, Herochu delivers a turnkey solution that pays for itself in under three months. Contact Herochu (Ji’nan Constant Storage Machinery Manufacturing Co., LTD) for a customized layout and see how automated flat sheet handling can transform your factory into a 24/7 unmanned production cell.
