The modern supply chain demands fluidity. The disconnect between static storage and dynamic transportation is a bottleneck that costs companies time and money. Vertical Storage Integrated with Palletizing Robots offers a remedy to this disjointed workflow, creating a seamless loop where storage and movement are synchronized. Herochu has engineered a solution that bridges this gap, combining high-density vertical storage with the agility of automated material handling to create a truly integrated logistics environment.
The Synergy of Storage and Transport
At the heart of this integration is the relationship between the vertical storage tower and the automated lift system. The Herochu system is designed not just to store goods, but to actively manage their flow. The “lift” acts as the vertical conveyor, while the “material trolley” acts as the horizontal transporter. This integration allows for a continuous stream of materials to move from deep storage to the point of action without human intervention.
The system supports various configurations to match the throughput requirements of the facility. For instance, the Double Tower configuration presents an excellent middle ground for operations needing enhanced throughput. This setup typically features two parallel storage towers served by a single, centrally located automated lift. A transfer trolley or shuttle system allows the lift to retrieve a load in one tower and move horizontally to service the second. This effectively doubles storage capacity without doubling the cost of the lift mechanism, providing a balance of compartment diversity and high total load capacity.
Heavy-Duty Capabilities for Industrial Palletizing
Palletizing in an industrial context often involves significant weight and bulk. The Herochu system is built to handle these demands. The material trolley is rated for a load of 3000kg, making it suitable for heavy pallets, dense sheet metal stacks, or large industrial components. The integration of a robust gantry robot ensures that these heavy loads are moved with precision.
The technical specifications of the Herochu system highlight its industrial grade capabilities. The lifting operating speed of ≤12m/min and the material car running speed of 10m/min ensure that the “palletizing” or movement of goods is swift. The system operates on a 380V supply with a supply pressure of 0.6-0.7Mpa, indicating a design meant for rigorous, continuous industrial application. The single loading and unloading cycle takes less than 180 seconds, a testament to the efficiency of the integrated servo drive systems.
The Multi-Tower Complex: A Centralized Hub

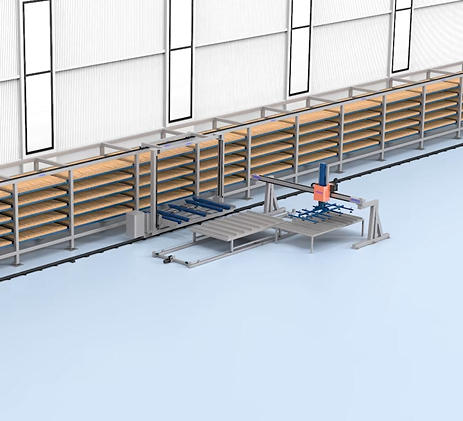

For larger operations, the integration extends beyond a single unit. The Multi-Tower Complex serves as the heart of an automated central warehouse. This system links several individual towers—often arranged in rows or blocks—into a cohesive Automated Storage and Retrieval System (ASRS).
In this configuration, the “palletizing robot” function is distributed across a network. Sophisticated horizontal transport systems, such as rail-guided vehicles or conveyors, connect the towers. This creates a vast storage matrix where the system automatically routes materials to different discharge stations. Whether feeding an assembly line or preparing a shipment for the dock, the system manages the logistics flow intelligently. The central computer oversees the entire operation, ensuring that the right pallet reaches the right station at the right time.
Precision Engineering and Reliability
Reliability is the cornerstone of any integrated system. Herochu ensures this through superior engineering. The main body of the loading and unloading manipulator is made of high-strength steel pipe and high-quality steel plate. The use of large-scale CNC gantry milling machines for processing guarantees high precision, which is essential when integrating with other automated systems like conveyors or production machines.
Furthermore, the forks used for handling the loads are crafted from high-strength steel, heat-treated and hard-chromium-plated. This polishing ensures a smooth surface with a small contact area, preventing scratches on the materials being moved—a critical feature when handling finished goods or polished metal sheets.
Conclusion
Herochu Vertical Storage Integrated with Palletizing Robots is more than just a storage rack; it is an active participant in the logistics process. By integrating high-capacity vertical storage with precise, automated transport mechanisms, it eliminates the friction between storing a product and using it. From the cost-effective Double Tower to the expansive Multi-Tower complex, Herochu provides a scalable, robust solution that keeps materials moving efficiently, safely, and intelligently.
