The modern fabrication shop is under constant pressure to produce more with less—less space, less time, and fewer resources. The PLC-Controlled Automated Sheet Metal Storage Tower for Laser Cutting represents the pinnacle of vertical integration. It is a specialized piece of equipment designed to act as the “material depot” for high-speed laser cutting centers.
This “tower” concept moves away from the sprawling horizontal footprint of traditional warehouses. Instead, it concentrates storage vertically, creating a compact, high-throughput unit that sits adjacent to the production machinery. This article examines the mechanics, software, and operational impact of this innovative storage tower.
The Tower Concept: Maximizing Cube Efficiency

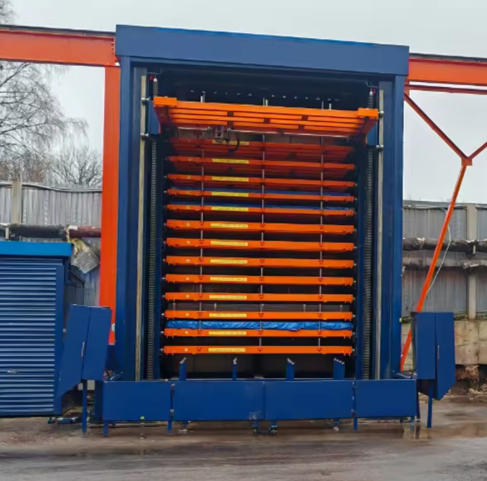

The “Tower” is defined by its vertical lift mechanism. Unlike horizontal carousels that require significant floor space, the tower utilizes the Z-axis to store materials. A typical Herochu storage tower can hold dozens of trays, stacked one above the other, reaching heights that utilize the full clearance of a factory building.
The structure is an assembly-type steel framework, designed for rigidity and ease of installation. Inside the tower, a lifting machine travels up and down the mast. This lift is the workhorse of the system, capable of vertical travel speeds of 9 meters per minute. It retrieves the specific tray requested by the operator or the production software and brings it down to the access level. This vertical retrieval method is significantly faster and more space-efficient than sending a forklift driver to the back of a warehouse to find a specific sheet.
PLC Control: The Brain of the Operation
The efficiency of the tower is driven by its Programmable Logic Controller (PLC). The PLC is responsible for the precise coordination of the lift motor, the extraction mechanism, and the safety sensors.
When integrated with a laser cutter, the PLC operates in “handshake” mode. The laser requests material; the PLC acknowledges the request, retrieves the tray, and presents it. The PLC also manages the logic for inventory organization. It can group similar materials together to minimize retrieval time or organize sheets by thickness to balance the load on the lift. The Herochu system utilizes high-performance PLCs that ensure millimeter-level positioning accuracy, ensuring that every tray is perfectly aligned for extraction.
Automated Loading and Unloading
The primary function of the storage tower is to feed the laser. The system features an automated loading and unloading interface. This interface is equipped with suction cups or grippers that handle the sheets.
Crucially, the system includes a “sheet separator” or “de-stacker” function. Using pneumatic suction, it can separate individual sheets from a stack to ensure only one sheet is loaded at a time. This prevents the “double-sheet” error, which can damage the laser lens. The loading process is smooth and silent, contributing to a quieter, cleaner factory environment. The ability to load and unload without human intervention allows for “lights-out” processing, where the laser cuts through the night while the tower silently feeds it material.
Intelligent Warehouse Management (WMS)
The tower is not just a physical structure; it is a digital database. The integrated WMS tracks every item stored within the tower. It supports real-time inventory queries, meaning a manager can see exactly how much 3mm mild steel is left without leaving their office.
The system supports batch traceability, which is vital for quality assurance. If a specific batch of material is found to be defective, the WMS can instantly identify which parts were cut from that batch. It also features expiration warnings for materials that have shelf lives, such as pre-painted coils. This level of data integration connects the physical world of the warehouse with the digital world of the ERP system, facilitating intelligent decision-making.
Customization and Flexibility
Every fabrication shop is different. The PLC-Controlled Automated Sheet Metal Storage Tower is highly customizable. The height of the tower, the number of storage levels, and the size of the trays can all be tailored to the customer’s specific requirements.
For example, a shop that primarily cuts small parts might opt for a tower with more levels and smaller trays, while a shop cutting large structural beams might need fewer levels with higher load capacities (up to 1800kg). The modular design allows for future expansion. If a business grows, additional tower modules can be added or the system can be reconfigured to handle different sheet sizes.
Safety and Surface Protection
In a tower system, materials are moving vertically above the factory floor. Safety is paramount. The Herochu tower is equipped with multiple safety devices, including limit switches, emergency stops, and physical barriers to prevent unauthorized access.
Moreover, the handling mechanism is designed to protect the surface of the metal. Scratches and dents are the enemy of high-quality fabrication. The automated handling system uses non-marking pads and smooth conveyors to ensure that the aesthetic quality of stainless steel or aluminum sheets is preserved from the moment they enter the tower until they are cut.
Conclusion
The PLC-Controlled Automated Sheet Metal Storage Tower for Laser Cutting is a vital component of the modern smart factory. It solves the spatial constraints of urban manufacturing while providing the high-speed material flow required by modern lasers. With its robust construction, intelligent control, and seamless integration capabilities, the Herochu storage tower is an investment in productivity, safety, and precision.
