Intelligent Mobile Three-dimensional Profile Warehouse – High-Density Storage for Industrial Profiles

Industrial warehousing faces a persistent challenge: how to store long, bulky profiles such as steel beams, aluminum extrusions, and copper tubing without surrendering vast areas to access aisles. Conventional solutions using forklifts and bridge cranes consume floor space for maneuvering, leaving a substantial portion of the warehouse volume unutilized. Herochu introduces the Intelligent Mobile Three-dimensional Profile Warehouse, a system engineered to eliminate these inefficiencies through vertical stacking, precision gantry robotics, and a mobile racking architecture.

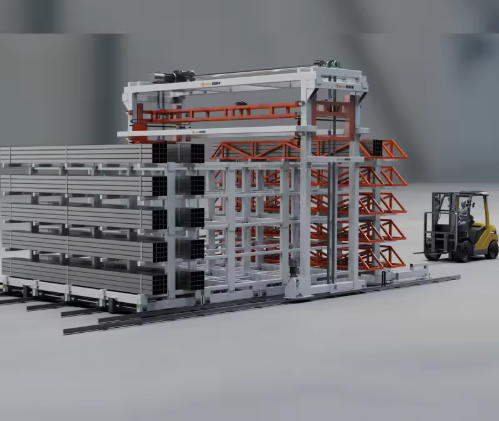

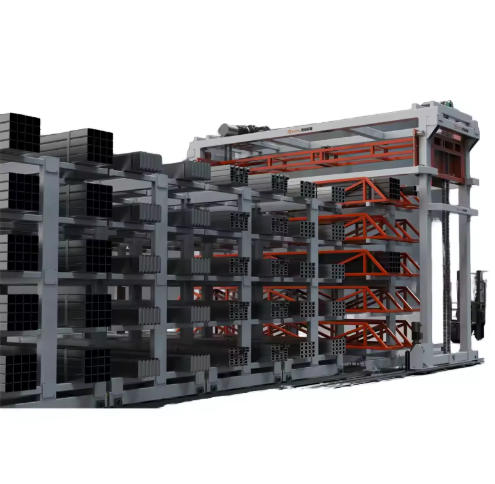

The Herochu system comprises a loading and unloading gantry system, profile material racks, material frames, and guide rails. Every component works in concert to transform a standard factory floor into a dense, three-dimensional storage matrix. The main structure boasts a high load-bearing capacity, ensuring durability even when storing single or bundled profiles of varying types. Crucially, the number of layers and the quantity of racks are fully customizable according to the factory’s existing dimensions and production requirements.

Technical Specifications That Define Performance

Herochu’s Intelligent Mobile Three-dimensional Profile Warehouse operates within a clear set of engineering parameters. The main structure is available in widths of 6015 mm, 6020 mm, and 6025 mm, allowing integration into different building envelopes. Storage layers range from 8 to 13 levels, directly translating ceiling height into usable storage positions. Each layer supports a load of 3 tonnes or 5 tonnes, accommodating both lightweight bundled materials and heavy single-section profiles. The mode of movement relies on linear guide rails combined with chain transmission, a pairing chosen for its reliability under continuous industrial cycles. Vertical lifting speed is set at 9 meters per minute, while horizontal inlet and outlet movement runs at 12 meters per minute. Profile support options are selectable based on the specific shape and dimensions of the stored material.

These specifications are not arbitrary. The moderate lifting and traversal speeds prevent load sway—a common problem when moving long, flexible materials. By prioritizing stability over raw speed, Herochu achieves consistent throughput of 15 to 20 picks per hour, a rate that often surpasses manual forklift operations when accounting for positioning time and safety adjustments.

Radical Spatial Efficiency

The fundamental value proposition of the Herochu system lies in its radical approach to spatial efficiency. In standard warehousing, a significant percentage of the total volume is sacrificed to access aisles and safety margins required for forklifts and bridge cranes to maneuver. These “flue spaces” are non-revenue generating areas that nonetheless consume expensive square footage. Herochu challenges this inefficiency by utilizing a high-density vertical configuration that transforms the warehouse structure itself into the storage medium. By employing a sophisticated gantry-based retrieval system, the need for wide external access lanes is eliminated. The result is a staggering capacity density: a single Herochu installation can house up to 500 tonnes of mixed profiles within a compact footprint of approximately 200 square meters. For facility managers weighing the capital expenditure of a building expansion against the optimization of current assets, this system offers a compelling, cost-effective alternative to construction.

This density is achieved through a footprint-optimized design that assumes standard bar lengths, typically around 12 meters, and utilizes verticality to its fullest extent. With configurations supporting up to 13 storage levels, Herochu effectively doubles or triples the storage density per square meter compared to standard racking.

Precision Gantry Robotics as the Core

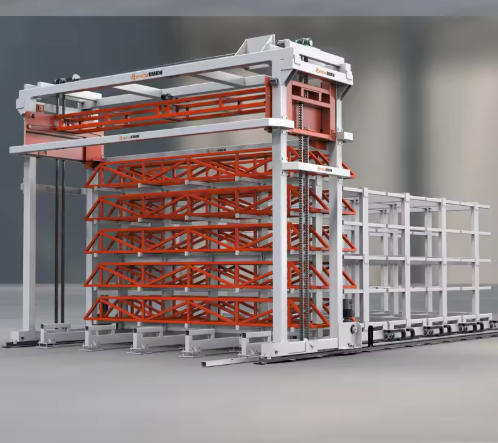

High-density storage is only viable if the retrieval mechanism is precise. At the heart of the Herochu Intelligent Mobile Three-dimensional Profile Warehouse lies the loading and unloading gantry robot. Unlike standard overhead cranes that may induce load swing or require excessive safety zones, the Herochu gantry operates on precision linear guide rails. This design choice is critical for handling long, awkward loads like steel beams or aluminum extrusions, ensuring that materials are placed with millimeter accuracy.

The transmission mode of the gantry utilizes a robust chain drive, a component selected specifically for its durability and ability to handle high torque at low speeds. While the operational speeds—9 meters per minute for vertical lifting and 12 meters per minute for horizontal inlet/outlet—may appear moderate when compared to high-speed parcel sorters, they are calculated specifically for the physics of heavy industrial loads. Moving 3 to 5 tonnes per layer requires stability over velocity. The moderate speed prevents load sway, ensuring that a bundle of pipes does not shift or slide during the pick-and-place cycle. This precision results in a consistent throughput that far exceeds manual retrieval times when factoring in the travel time and positioning adjustments required by forklift operators.

Customization and Mobility

The term “mobile” in Herochu’s Intelligent Mobile Three-dimensional Profile Warehouse refers not only to the moving gantry but also to the adaptability of the racking system itself. The profile material racks and material frames can be reconfigured as production needs change. The linear guide rails enable smooth traversal of the gantry along the entire length of the stored profiles, while the chain drive provides positive engagement without slippage. Facilities handling multiple profile types—round bars, square tubes, angles, channels—can select different profile supports to match each material’s geometry. This flexibility ensures that the same system serves a steel service center, an aluminum extrusion plant, or a copper tubing distributor without requiring dedicated machinery for each product category.

Operational Benefits for Industrial Users

Adopting the Herochu system translates into measurable operational improvements. First, floor space freed from access aisles can be repurposed for production lines, assembly areas, or additional processing equipment. Second, inventory accuracy improves because every stored profile occupies a defined position within the three-dimensional matrix, reducing the risk of misplaced bundles. Third, worker safety increases as the gantry system handles heavy lifting and precise placement, eliminating the need for forklifts to navigate narrow lanes with long overhanging loads. Fourth, energy consumption decreases because the chain drive and linear guide system are more efficient than repeated forklift trips across a sprawling warehouse floor.

Conclusion

The Herochu Intelligent Mobile Three-dimensional Profile Warehouse represents a departure from conventional long-material storage. By combining high load-bearing structures, customizable layer counts, precision linear guide rails, and chain drive transmission, Herochu delivers a system that maximizes cubic volume while maintaining retrieval accuracy. For any industrial operation dealing with profiles, pipes, or bars, this system offers a direct path to higher density, lower operating costs, and safer material handling.
