Herochu Intelligent Mobile Profile Vertical Warehouse – Vertical Storage Solution for Heavy Profiles

When a factory’s floor space is fixed but inventory continues to grow, the only direction to expand is up. Traditional profile storage methods fail to exploit overhead volume effectively, leaving vast airspace unused. Herochu addresses this gap with the Intelligent Mobile Profile Vertical Warehouse, a system engineered specifically to stack heavy profiles in a dense vertical configuration while retaining rapid, accurate retrieval. This article examines the technical architecture, performance specifications, and economic rationale behind Herochu’s vertical warehouse solution.

System Architecture and Core Components

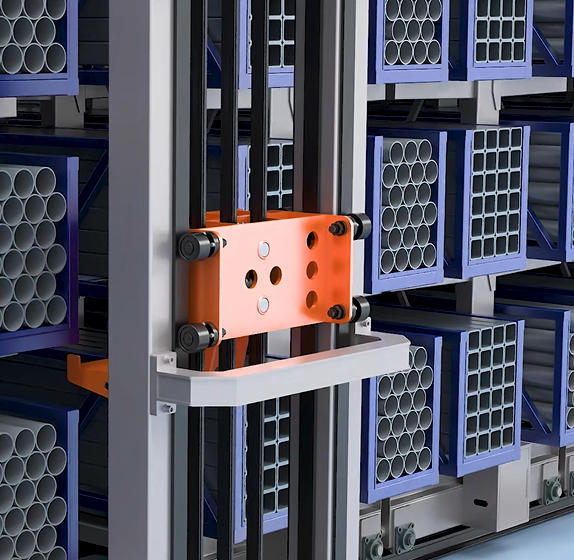

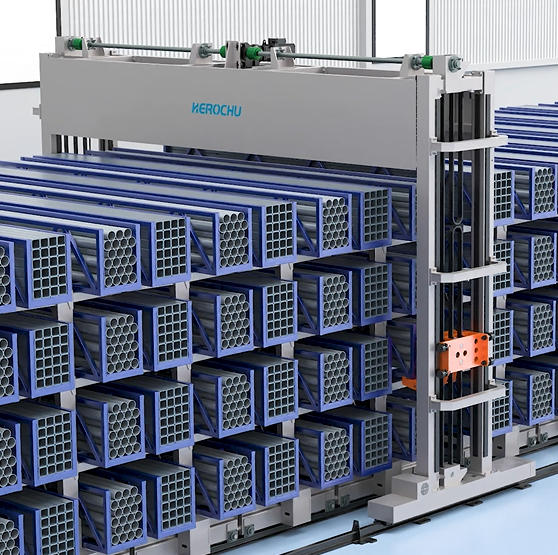

The Herochu Intelligent Mobile Profile Vertical Warehouse consists of a loading and unloading gantry system, profile material racks, material frames, and guide rails. Each component serves a distinct function. The gantry system traverses along guide rails, picking and placing profiles from any level of the vertical rack structure. The profile material racks hold individual or bundled profiles, with each tier designed to support substantial weight. Material frames keep profiles separated and prevent contact damage, while the guide rails ensure straight, friction-reduced movement of the gantry.

The main structure is built for high load-bearing capacity. It is sturdy and durable, capable of storing single or bundled profiles of different types without deflection or fatigue over years of service. The number of layers and the quantity of racks are not fixed; they are customized according to the factory’s ceiling height and throughput requirements. This customization is essential because no two industrial facilities share identical dimensions or material flow patterns.

Detailed Specifications

Herochu provides clear technical parameters for the Intelligent Mobile Profile Vertical Warehouse. The main structure width comes in three options: 6015 mm, 6020 mm, and 6025 mm. The number of floors ranges from 8 to 13, directly correlating with available building clearance. Load per layer is rated at either 3 tonnes or 5 tonnes, allowing the system to handle everything from lightweight aluminum extrusions to solid steel rounds. Mode of movement is linear guide rail combined with chain. Transmission mode is chain drive, selected for its positive engagement and resistance to shock loads. Vertical lifting speed is 9 meters per minute. Inlet and outlet horizontal speed is 12 meters per minute. Profile support is an optional selection, meaning the end user can choose V-rests, flat supports, or custom saddles depending on the profile geometry.

Why Vertical Warehousing for Profiles

The concept of vertical warehousing is not new, but applying it to long profiles—materials that often measure 6 to 12 meters in length—presents unique engineering challenges. A standard vertical lift module designed for small parts cannot accommodate a 12-meter steel beam. Conversely, a cantilever rack serviced by a forklift wastes the vertical space between levels because the forklift’s mast must extend upward while the operator maintains visibility. Herochu solves this problem by decoupling the retrieval mechanism from the storage positions. The gantry system moves independently along guide rails, accessing any level without requiring a human operator to navigate at height. This design allows the vertical warehouse to achieve its full theoretical density.

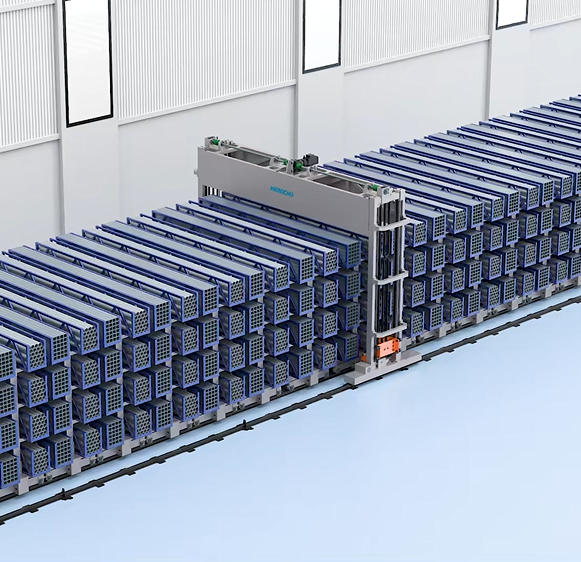

The fundamental value proposition of the Herochu system lies in its radical approach to spatial efficiency. In standard warehousing, a significant percentage of the total volume is sacrificed to access aisles and safety margins required for forklifts and bridge cranes to maneuver. These “flue spaces” are non-revenue generating areas that nonetheless consume expensive square footage. Herochu challenges this inefficiency by utilizing a high-density vertical configuration that transforms the warehouse structure itself into the storage medium. By employing a sophisticated gantry-based retrieval system, the need for wide external access lanes is eliminated. The result is a staggering capacity density: a single Herochu installation can house up to 500 tonnes of mixed profiles within a compact footprint of approximately 200 square meters. For facility managers weighing the capital expenditure of a building expansion against the optimization of current assets, this system offers a compelling, cost-effective alternative to construction.

This density is achieved through a footprint-optimized design that assumes standard bar lengths, typically around 12 meters, and utilizes verticality to its fullest extent. With configurations supporting up to 13 storage levels, Herochu effectively doubles or triples the storage density per square meter compared to standard racking.

The Gantry and Drive System

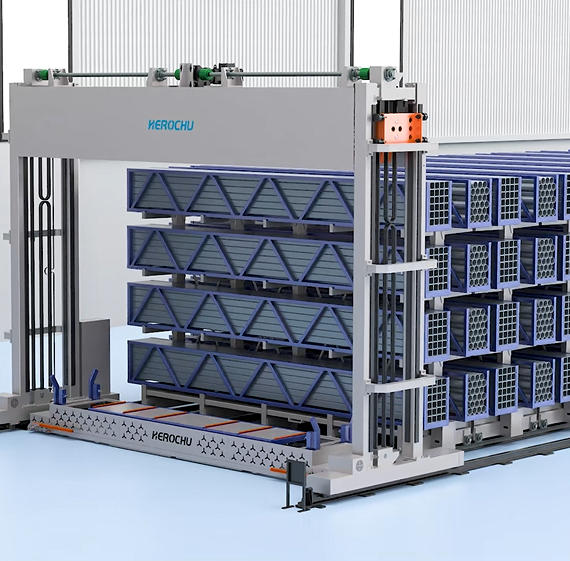

High-density vertical storage is only viable if the retrieval mechanism is precise. At the heart of the Herochu Intelligent Mobile Profile Vertical Warehouse lies the loading and unloading gantry robot. Unlike standard overhead cranes that may induce load swing or require excessive safety zones, the Herochu gantry operates on precision linear guide rails. This design choice is critical for handling long, awkward loads like steel beams or aluminum extrusions, ensuring that materials are placed with millimeter accuracy.

The transmission mode of the gantry utilizes a robust chain drive, a component selected specifically for its durability and ability to handle high torque at low speeds. While the operational speeds—9 meters per minute for vertical lifting and 12 meters per minute for horizontal inlet/outlet—may appear moderate when compared to high-speed parcel sorters, they are calculated specifically for the physics of heavy industrial loads. Moving 3 to 5 tonnes per layer requires stability over velocity. The moderate speed prevents load sway, ensuring that a bundle of pipes does not shift or slide during the pick-and-place cycle.

Practical Applications

Consider a steel service center storing 12-meter lengths of round bar in diameters from 20 mm to 150 mm. Using conventional cantilever racks, the facility dedicates wide aisles for forklift turning radius. Switching to the Herochu Intelligent Mobile Profile Vertical Warehouse compresses the same inventory into a fraction of the footprint. The 13-level configuration stores 13 layers of bars, each layer holding multiple bundles. The gantry system retrieves any bundle in under two minutes, delivering it to the unloading station for cutting or shipping. Similarly, an aluminum extrusion plant storing thousands of unique die shapes can use the selectable profile supports to prevent bending or scratching during storage and retrieval.

Conclusion

The Herochu Intelligent Mobile Profile Vertical Warehouse delivers on the promise of high-density vertical storage for long, heavy profiles. With customizable layer counts from 8 to 13, load capacities of 3 or 5 tonnes per layer, and a precision chain-driven gantry on linear rails, Herochu provides a system that maximizes cubic utilization without sacrificing retrieval speed or accuracy. For industrial operations facing space constraints, this vertical warehouse represents a practical, proven solution.
