Storage System Featuring Roll-Out Levels for Storing Sheet Steel: Accessible High-Density Solution

The gap between theoretical storage density and practical accessibility has historically plagued sheet steel warehouses. Static racks may store material efficiently, but accessing bottom layers requires moving upper tiers. Cantilever racks offer accessibility at the cost of density. The Herochu storage system featuring roll-out levels for storing sheet steel bridges this gap through an innovative telescoping carriage design that brings the steel to the operator without sacrificing vertical space utilization.

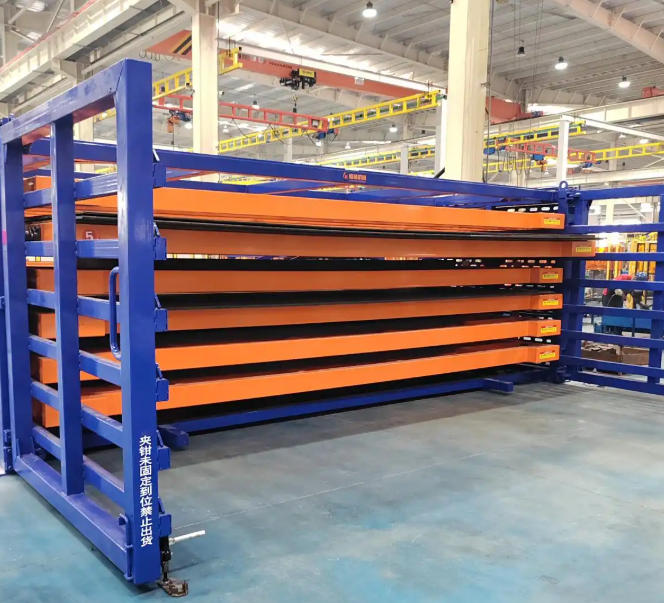

At the operational level, the Herochu system transforms how warehouses interact with flat steel inventory. Each roll-out level functions as an independent tray that glides forward on precision bearings, exposing the entire sheet surface for inspection, measurement, or retrieval. This design proves particularly valuable for laser cutting operations that frequently switch between material grades and thicknesses. Instead of maintaining multiple dedicated racks for different materials, a single Herochu tower can store steel, stainless steel, and aluminum on separate roll-out levels, with each level accessible independently.

The corrosion-protected and powder-coated steel rack system ensures longevity in demanding industrial environments. Sheet steel often arrives with residual mill oil or protective coatings that can degrade unprotected rack surfaces. The Herochu powder-coated finish provides enhanced resistance against rust and corrosion, extending the operational lifespan of the equipment beyond fifteen years in normal service. This finish also prevents material contamination—critical for food-grade stainless steel or aerospace aluminum that cannot tolerate rack-induced surface staining.

Multilayer structural design within the Herochu system ensures efficient use of vertical space for optimal organization. Unlike floor-stacked steel where sheets settle into difficult-to-separate bundles, the roll-out levels maintain distinct separation between stored plates. This separation eliminates the “stickiness” common with thin-gauge steel sheets, where surface tension or oil adhesion makes separating individual sheets difficult. Operators simply roll out the desired level and lift the top sheet using suction cups, magnetic lifters, or manual lifting aids.

The skeletal structure of the Herochu rack provides robust stability and durability for heavy loads while minimizing material usage in the frame. This structural efficiency reduces the rack’s own weight, allowing more of the floor load capacity to be dedicated to stored steel. Finite element analysis confirms that the Herochu design achieves uniform force distribution across all structural members, preventing local overloading and associated deformation or bending. For warehouses storing high-value tool steel or thick armor plate, this structural integrity protects both the rack and the stored material.

Operational safety features on the Herochu storage system include anti-tipping structures at the base that stabilize the rack even when multiple roll-out levels are extended simultaneously. Spring-loaded locking pins engage automatically at full extension and full retraction, preventing unintended movement during loading or unloading. Limit devices provide positive stops that prevent over-travel, while the anti-slip design prevents plates from sliding or scratching as the level moves. These safety features work together to create a system that can be operated confidently by personnel without specialized heavy equipment training.

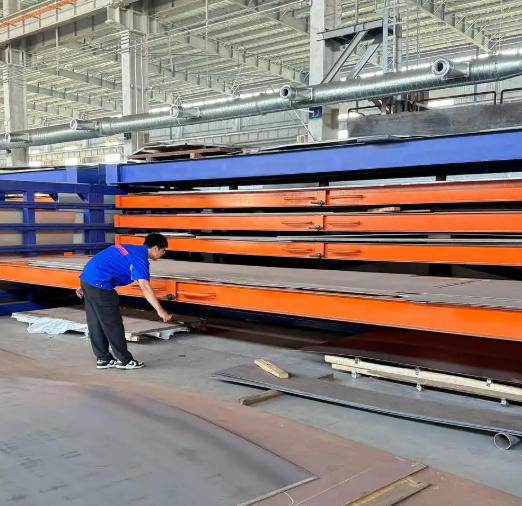

The Herochu system is ideal for laser cutting metal sheet storage and easy forklift loading. The roll-out levels can be positioned to align with forklift tine height, allowing direct plate transfer from receiving to storage without intermediate handling. For lighter gauge materials, overhead cranes or vacuum suction cup systems can access the fully extended level from above, pulling sheets straight up without dragging them across the level surface—a feature that preserves surface finish on polished or coated sheets.

Technical parameters for Herochu storage systems are fully customizable to meet specific facility requirements. Number of roll-out levels per tower is configurable from two to six, depending on sheet thickness and weight. Maximum storage dimensions reach 12,000 millimeters in length and 2,500 millimeters in width, with per-level load capacities up to 10,000 kilograms. Clearance space between levels adjusts based on handling equipment requirements, including clearance for suction cup frames or mechanical sheet lifters. Material discharge methods include roll-out (manual), electric-assisted roll-out, or fully motorized operation with remote pendant control. For motorized configurations, power ratings range from 200 to 400 watts with input voltages of 220V or 380V at 50Hz or 60Hz.

The Herochu commitment to quality begins before production. Each rack design undergoes precise analysis using three-dimensional finite element stress analysis. Only after stress analysis validates the design do engineers proceed to production drawings. Comprehensive structural and performance analysis is conducted on core components including main frames, drawer slides, and bottom supports to ensure that the design meets load-bearing and usage standards for the specific application.

Pre-installation inspection provides final quality assurance. Every Herochu rack undergoes complete assembly at the factory before disassembly for shipping. Assembly deviations are checked and corrected in real time, with performance parameters verified against specifications. This pre-shipment validation eliminates on-site surprises and ensures that installation proceeds smoothly without rework or adjustment.

For workshops processing aluminum sheets, stainless steel, or specialized alloys, the Herochu storage system featuring roll-out levels provides the organization required for efficient material flow. The flexible design adapts to different sheet thicknesses and storage demands, with customization available for size, height, load capacity, color, and corporate logo. Factory direct supply ensures competitive pricing, fast delivery, and reliable after-sales support including installation guidance and operator training.

Ultimately, the Herochu system reduces plate damage and material waste while improving material handling efficiency and workshop management level. By eliminating ground stacking and the associated damage from sheet-to-sheet contact, the system preserves material quality through every stage of the production cycle. For fabrication shops, steel service centers, and manufacturing plants seeking to improve their lean material flow, the Herochu roll-out level storage system delivers measurable operational improvements from the first day of installation.
