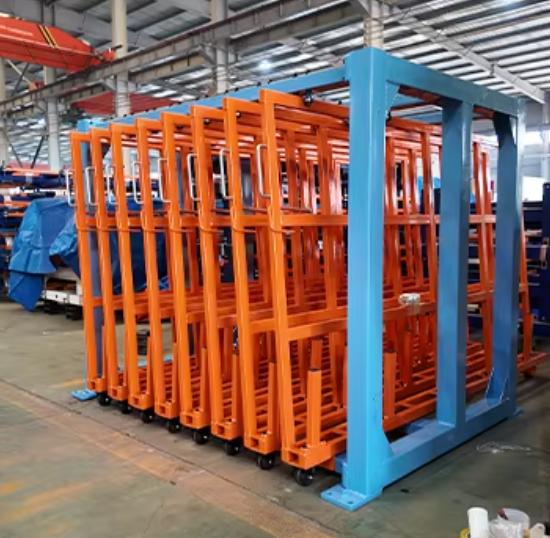

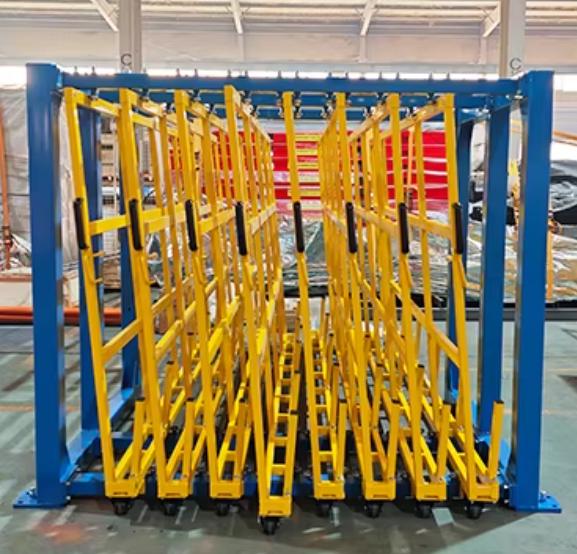

Heavy Duty Vertical Roll-Out Sheet Metal Rack for Industrial Workshops

In the demanding environment of modern metal fabrication, the storage of heavy steel plates, dense alloys, and thick industrial scraps presents a persistent operational challenge. Flat stacking—the traditional approach—consumes vast floor areas, creates safety hazards, and makes material retrieval a labor-intensive ordeal. The Heavy Duty Vertical Roll-Out Sheet Metal Rack represents a fundamental departure from these outdated methods, engineered specifically to support the rigorous demands of industrial manufacturing environments.

The Heavy-Duty Construction Standard

The term “heavy-duty” carries substantial weight in industrial storage, and for the Herochu Heavy Duty Vertical Roll-Out Sheet Metal Rack, it is a foundational engineering promise. Constructed from premium-grade structural steel, these racks are built to support substantial loads that would compromise lesser storage systems. The standard configuration supports a single-layer load of up to 1 ton (1000kg), making it suitable for the heaviest steel plates, dense alloy remnants, and thick industrial scraps that accumulate daily in laser cutting and fabrication operations.

This load-bearing capacity is not merely a specification—it is a guarantee of operational reliability. Each drawer in the heavy-duty vertical roll-out sheet metal storage rack carries a standard capacity of 2000 pounds with a 2-inch loading space. The drawer slides feature hardened steel ball bearings rated for 100,000 cycles under full load, ensuring that the rack maintains its performance integrity even after years of continuous use.

Vertical Storage: Reclaiming the Overlooked Dimension

The core philosophy behind the Herochu vertical roll-out system is the maximization of cubic space rather than just floor space. In many warehouses and fabrication shops, the vertical air rights above the floor remain unused while the ground level becomes congested with bulky, heavy materials. By storing sheets vertically—on their edge rather than laid flat—the system consolidates what would be a sprawling collection of materials into a compact, organized storage tower.

The mathematics are compelling. A standard sheet of steel occupies significant square footage when laid flat. Stack multiple sheets, and the floor space consumption multiplies rapidly. The vertical roll-out rack fundamentally changes this equation by leveraging the vertical dimension—the space that most facilities leave completely unused. This approach reduces the horizontal footprint required for material storage by up to 50% compared to traditional flatbed storage systems.

The 15-Layer Architecture

The Heavy Duty Vertical Roll-Out Sheet Metal Rack from Herochu is available in three standard configurations—HC-V2010-15, HC-V2513-15, and HC-V3015-15—each featuring 15 independently operating pull-out drawers. This multi-layer design maximizes vertical space utilization, accommodating a wide range of sheet sizes from 2000×1000mm up to 3000×1500mm.

The available height of each partition layer is 50mm, providing adequate clearance for stacked materials while maintaining efficient vertical density. Each drawer operates as an independent storage unit, allowing facility managers to sort remnants by size, material type, or thickness. When a specific piece of steel is needed for a job, the operator simply pulls out the relevant drawer and retrieves the material directly—no digging through unstable piles, no shifting heavy stacks to access the piece at the bottom.

Adjustable Shelving for Customized Organization

Recognizing that no two fabrication shops have identical material inventories, the Herochu Heavy Duty Vertical Roll-Out Sheet Metal Rack incorporates adjustable shelves that allow operators to customize compartment heights according to their specific storage needs. This flexibility ensures that the rack accommodates everything from thin gauge sheets to thick plate remnants without wasted space.

The adjustable partition height means that operators can configure the rack to store materials of varying thicknesses efficiently. Thinner sheets can be grouped in shallower compartments, while thicker plates occupy deeper ones. This level of customization transforms the rack from a generic storage solution into a precision tool for inventory management.

Powder Coated Finish: Corrosion Protection for Longevity

Industrial environments are unforgiving. Moisture, dust, and corrosive elements are ever-present threats to storage equipment. The Herochu Heavy Duty Vertical Roll-Out Sheet Metal Rack addresses this challenge with a durable powder-coated finish that provides long-lasting protection against corrosion and wear.

This surface treatment is not merely cosmetic—it is a critical protective layer that extends the rack’s lifespan in harsh industrial settings. The powder coating resists chipping, scratching, and chemical degradation, ensuring that the rack maintains its structural integrity and professional appearance through years of heavy use. For facilities storing materials that may have residual oils, coolants, or other industrial fluids, this corrosion resistance is particularly valuable.

Integrated Mobility for Workshop Flexibility

Modern manufacturing facilities require storage solutions that can adapt to changing workflows. The Herochu Heavy Duty Vertical Roll-Out Sheet Metal Rack addresses this requirement with integrated wheels that enable easy relocation within the workshop or warehouse.

This mobility feature allows facility managers to position the rack exactly where it is needed most—alongside laser cutters, near shearing stations, or adjacent to press brakes. When production layouts change or new equipment is installed, the rack can be moved to maintain optimal material flow. The mobility feature transforms the rack from a fixed installation into a dynamic component of the workshop’s operational infrastructure.

Operational Safety and Worker Protection

Beyond the tangible benefits of space efficiency and organization, the Heavy Duty Vertical Roll-Out Sheet Metal Rack delivers substantial safety improvements. Traditional flat stacking of heavy metal sheets creates unstable piles that can shift, collapse, or cause injury during retrieval. The vertical roll-out design eliminates these hazards by keeping each sheet separated and stable within its own drawer compartment.

Workers can access materials without the physical strain of lifting heavy sheets from the bottom of a stack or navigating around precarious piles. The roll-out drawers extend fully, giving operators a clear view of all stored pieces and allowing them to select the exact material they need with minimal effort. This organized access substantially lowers the risk of workplace injuries associated with manual material handling.
