Gantry Type Material Warehouse for Profile Storage: A Technical Overview

The evolution of industrial automation has progressed from individual machines to fully integrated production cells. In the segment of heavy profile storage, the bottleneck has consistently been the interface between the storage yard and the production line. Herochu has engineered a solution specifically designed to bridge this gap: the Gantry Type Material Warehouse. This system represents a synthesis of mechanical engineering, automation technology, and information systems. It is designed not merely to store profile materials but to actively manage them in a three-dimensional space, ensuring that the right material reaches the right production station at the right time. The gantry-type architecture, distinguished by its use of a moving bridge or portal structure, offers distinct advantages in terms of stability, load capacity, and floor area utilization. This overview delves into the technical nuances that make the Herochu Gantry Type Material Warehouse a superior choice for modern profile storage.

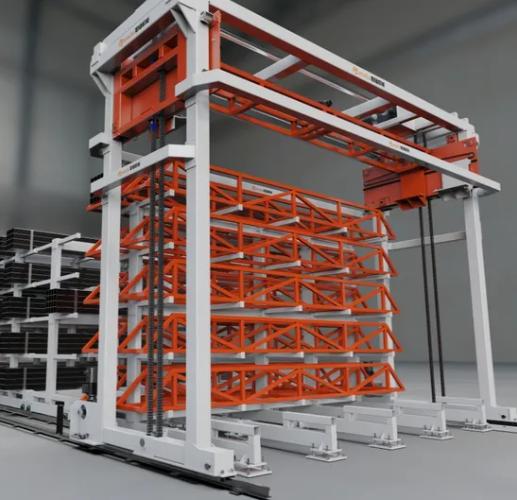

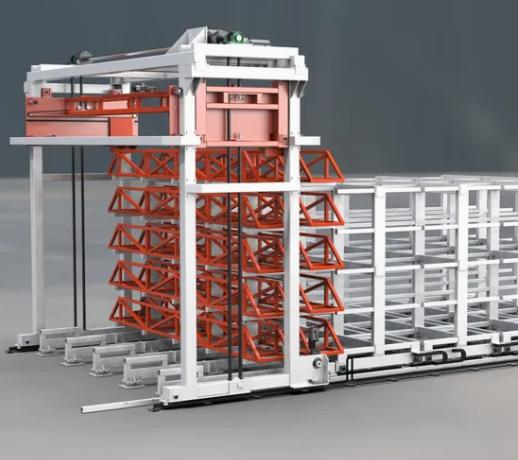

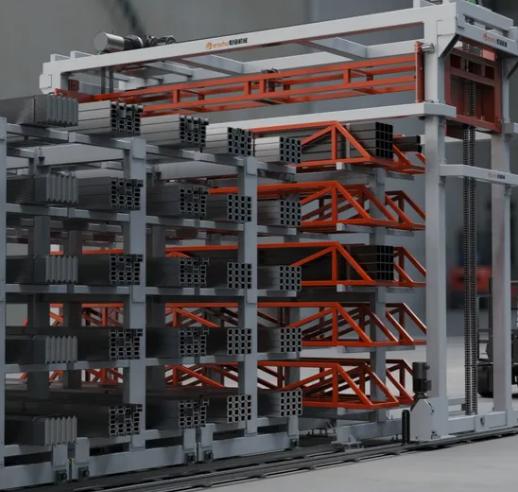

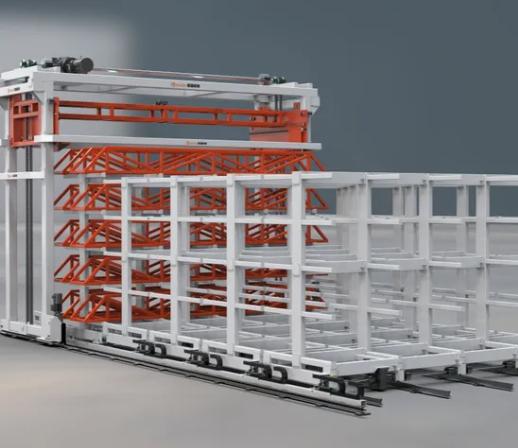

Understanding the engineering of the gantry type material warehouse requires examining its core components and their integration. The system is anchored by the Loading/Unloading Gantry System, which incorporates a robust, latticed steel structure to minimize deflection during heavy lifting. This gantry is powered by a chain drive transmission that engages with linear guide rails, providing the traction necessary to move heavy loads of steel or aluminum. The gantry is equipped with a specialized lifting device that can be configured with cradles, adjustable arms, or suction cups depending on the profile type. The Profile Material Racks are constructed using high-tensile steel sections and are bolted to the factory floor to ensure absolute stability. These racks are divided into compartments with engineered dimensions, typically starting at 600×500 mm per grid, which can be further customized. The Material Frames, which include pallets and baskets, are designed to interface seamlessly with the gantry’s gripping mechanism. The entire system is monitored and controlled by a central console that interfaces with the factory’s broader Warehouse Management System (WMS), ensuring that data flows smoothly between storage and production.

A critical technical specification of the Herochu Gantry Type Material Warehouse is its adaptability to different factory environments. The standard design accommodates storage lengths of up to 8000mm, making it suitable for most structural profiles used in construction and heavy machinery. The number of floors, which is customizable based on ceiling height, allows facilities to optimize vertical space utilization. In terms of performance, the gantry achieves a walking speed of 5 to 30 meters per minute, which ensures rapid repositioning along the long axis of the warehouse. The lifting speed of the gantry crane, ranging from 5 to 15 meters per minute, is carefully calibrated to balance productivity with safety, ensuring that heavy loads are raised and lowered without excessive oscillation. The single-layer material storage loading weight is rated up to 5000kg, which provides ample capacity for carrying bundles of smaller profiles or single heavy beams. The power equipment increase is specified at 15kw, which delivers the necessary torque and acceleration without causing power surges that could disrupt plant operations. This carefully balanced set of specifications ensures that the system operates within optimal parameters for both efficiency and longevity.

The operational benefits of the Gantry Type Material Warehouse are evident when analyzing the workflow of a typical profile processing plant. Before automation, a common workflow involved a forklift operator retrieving bundles from a sprawling yard, often requiring multiple trips and significant travel time. The Herochu system compresses this workflow into a series of precise, automated commands. The gantry travels along the guide rails to the coordinate of the required material. The Z-axis lifts the material, the Y-axis moves it to the exit point, and the material is then lowered onto a buffer station. The entire sequence from command to delivery takes a fraction of the time required for manual operation. This efficiency is directly measurable in terms of cost savings and increased production capacity. The reliability of the chain drive transmission ensures that maintenance intervals are extended, reducing downtime. The repeatability of positioning accuracy, maintained at ±2mm, ensures that the handling of expensive and sensitive profiles does not result in damage or waste.

Herochu’s approach to customization is one of its strongest attributes. The fact that the number of storage units, inventory quantity of materials, and single-story floor height are all subject to customization means that the system fits the factory, rather than the factory having to adapt to the system. This design philosophy extends to the input voltage, which can be configured for 220V or 380V, accommodating different regional electrical standards and power requirements of 50Hz/60Hz. The system’s scalability allows a facility to start with a moderate number of racks and expand as their business grows, protecting the initial investment. This modularity is crucial for businesses that anticipate growth or fluctuations in product mix.

When considering the engineering challenges of storing long profiles, the significance of the loading and unloading gantry system and profile material racks cannot be overstated. The gantry system acts as the dynamic heart of the operation. In the Herochu design, the Y-axis (horizontal movement) and Z-axis (vertical lifting) of the gantry are driven separately. This independent drive mechanism provides significant advantages. It simplifies the control algorithms, allows for more precise tuning of speed and acceleration for each axis, and, crucially, saves warehouse space by optimizing the mechanical footprint. This design choice eliminates the complex mechanical linkages required in some older designs, reducing points of failure and simplifying maintenance. The result is a more robust system that can be easily serviced by plant technicians.

The Herochu Gantry Type Material Warehouse is an answer to the demands of Industry 4.0. It combines data, automation, and mechanical engineering to create a storage solution that is intelligent, adaptable, and robust. The ability to retrieve items as needed and place them neatly into an organized inventory system provides a clearer picture of stock levels, enabling just-in-time inventory management. This system is not merely a storage unit; it is a key component of a smart factory, integrating with ERP systems to provide real-time inventory data that drives production planning. It liberates manpower from mundane retrieval tasks, allowing skilled workers to focus on value-added activities. With its high load-bearing capacity, versatile customization options, and rapid operational speeds, the Herochu Gantry Type Material Warehouse stands as a testament to what modern engineering can achieve in the realm of heavy material handling.
