Integrated Automated Storage & Retrieval for Profile Warehouses

In the modern industrial landscape, material handling and storage efficiency directly influence production throughput, operational costs, and workplace safety. For manufacturers dealing with long, heavy, and diverse metal profiles—such as pipes, tubes, beams, channels, and extrusions—traditional flat storage methods are no longer viable. These methods consume vast floor spaces, create logistical bottlenecks, and increase labor dependency. Addressing these challenges head-on, Herochu has engineered a comprehensive Integrated Automated Storage & Retrieval system specifically tailored for profile materials. This solution merges advanced mechanical design with intelligent control software, offering a paradigm shift in how profile warehouses operate. It is not merely a storage unit; it is a fully synchronized material ecosystem designed to maximize density, minimize retrieval times, and enhance overall operational fluidity.

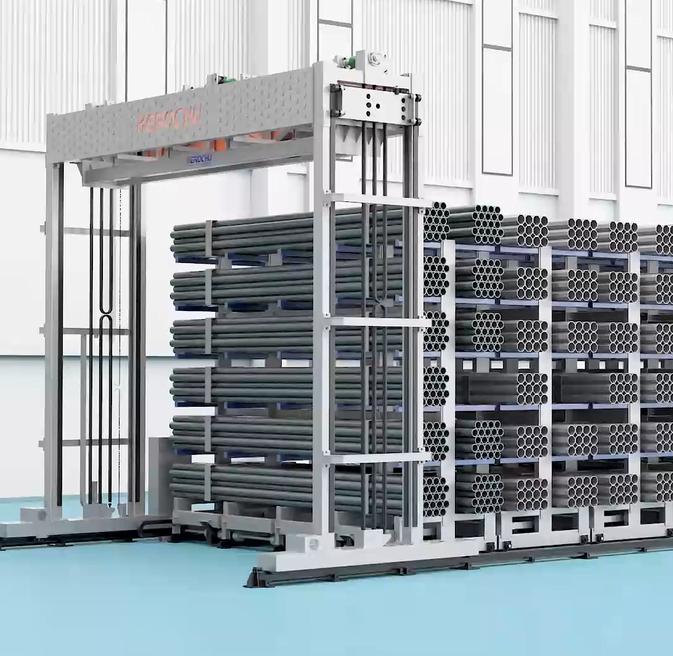

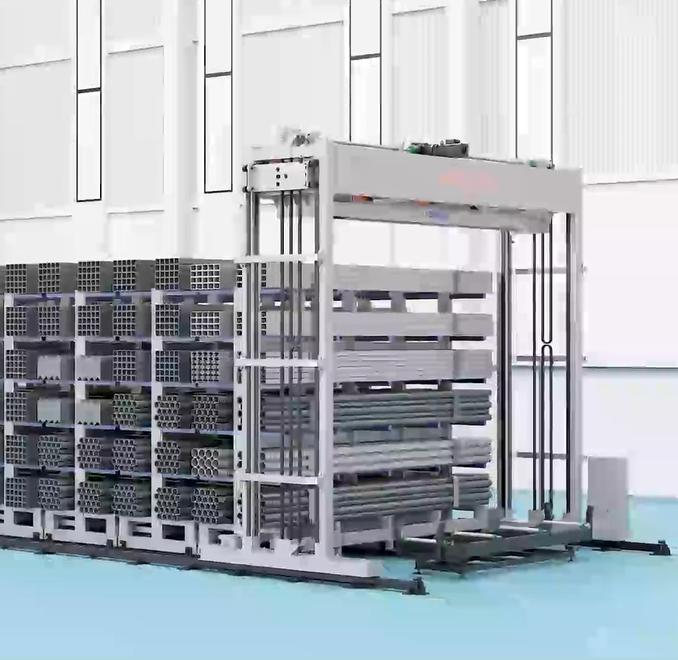

The architecture of the Herochu solution is built upon four core pillars: the Loading/Unloading Gantry System, High-Capacity Profile Material Racks, Material Frames (pallets or baskets), and Precision Guide Rails. Together, these components form a cohesive unit where each element is optimized for the others. The Loading/Unloading Gantry System acts as the automated workhorse of the warehouse. It traverses the storage aisles via robust linear guide rails, executing precise retrieval and placement operations. This gantry is not a simple crane; it is a sophisticated Cartesian robot equipped with a Z-axis lifting mechanism and a Y-axis traversing mechanism. The High-Capacity Profile Material Racks are custom-engineered vertical structures designed to maximize vertical space. Unlike standard shelving, these racks are built with heavy-duty steel and feature multiple compartments. Material Frames, which include specialized pallets and baskets, serve as the secure holding units for single items or bundled profiles. Finally, the Precision Guide Rails ensure smooth, accurate gantry movement, providing the mechanical foundation upon which all dynamic operations rest.

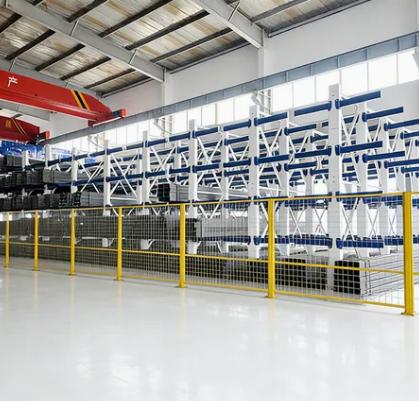

Regarding robust construction and flexibility, the Herochu system sets a new standard for resilience. The main structure is engineered with an exceptionally high load-bearing capacity, ensuring sturdy and durable operation even under the most demanding industrial loads. Each layer of the storage rack is capable of supporting up to 3 tons in standard configurations, with an enhanced capacity of 5 tons per layer available for specific heavy-load requirements. This structural integrity allows the system to handle the accumulated weight of hundreds of tons of profiles distributed across multiple tiers. Material versatility is another hallmark of this design. The system efficiently stores single or bundled profiles of various types, sizes, lengths, and weights. Whether dealing with delicate thin-walled tubes or massive structural beams, the adjustable nature of the material frames and the careful handling algorithms of the gantry ensure safe and damage-free storage. Furthermore, the system offers customizable density to suit any factory layout. The number of layers, which can range from 8 to 13 or more, and the total quantity of racks, which determines the number of storage positions, are meticulously tailored to the factory’s dimensions, volume requirements, and specific profile mix. This ensures that the system is not a “one-size-fits-all” product but a perfectly integrated component of the facility.

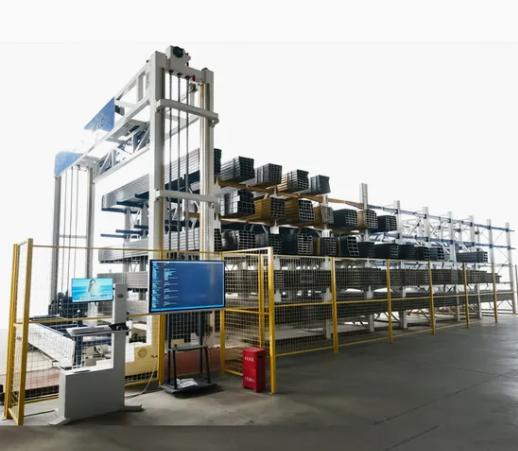

The operational efficiency of the Herochu Integrated Automated Storage & Retrieval system is driven by its fully automated operation and intelligent material handling. The gantry operates on linear guide rails with a reliable chain drive transmission system that guarantees precision and longevity. Optimized speeds are central to minimizing cycle times and maximizing throughput. The system achieves rapid vertical lifting at 9 meters per minute for raising profiles to the higher tiers, and a horizontal inlet/outlet movement speed of 12 meters per minute for transferring materials to and from the buffer zones. This rapid movement is balanced with smooth acceleration and deceleration curves to prevent load swinging. A significant feature that enhances safety and stability is the optional profile support system, which includes cradles and adjustable arms. These support mechanisms ensure that long profiles remain stable during storage and transport, preventing bending or deformation that could compromise material integrity. The integration of a centralized console provides a single point of control for all operations, allowing operators to manage inventory, initiate retrieval cycles, and monitor system status with unparalleled ease.

The economic and operational advantages of implementing the Herochu Integrated Automated Storage & Retrieval are profound. By transitioning from floor-based storage to high-density vertical racks, manufacturers can dramatically reduce their warehouse footprint, often by 60% or more. This space recovery allows for the expansion of production lines or the consolidation of operations into a smaller facility, directly impacting capital expenditure. Simultaneously, the system liberates manpower from mundane and physically demanding retrieval tasks. Operators are no longer required to operate forklifts in narrow aisles or manually sort long bars. The intelligent control system ensures that items are retrieved as needed and placed in their designated inventory locations with surgical precision. This process provides a clearer and more accurate picture of inventory quantity and stock levels in real-time, enabling better production planning and procurement decisions. The system not only saves space but also enhances workplace safety by removing the risk of accidents associated with manual material handling.

Beyond the immediate benefits of space saving and labor reduction, the Herochu system represents a strategic investment in long-term operational excellence. The independently developed material library, comprising the upper-lower loading/unloading gantry system, material racks, material frames, and guide rails, is a testament to Herochu’s commitment to vertical integration and quality control. The Y-axis and Z-axis of the loading/unloading gantry are driven separately, a design choice that optimizes the utilization of warehouse space and allows for independent movement paths. This design increases the system’s agility and makes it highly adaptable to varying operational demands. With the ability to handle storage lengths of goods up to 8000mm (and customizable beyond that), and single-layer storage loading weights up to 5000kg, the system covers a vast array of industrial applications. The walking speed of the gantry, adjustable from 5 to 30 meters per minute, and the lifting speed, adjustable from 5 to 15 meters per minute, allow operators to fine-tune the system’s performance to match their specific material handling needs.

In conclusion, the Herochu Integrated Automated Storage & Retrieval system is more than an equipment set; it is a strategic enabler for modern manufacturing. It solves the complex equation of high-volume storage, quick retrieval, and safe handling through meticulous engineering and intelligent design. The system’s high load-bearing capacity, customizable architecture, and lightning-fast operation make it indispensable for any manufacturer serious about optimizing their logistics and production chain. By ensuring secure support, precise positioning with a repeatability accuracy of ±2mm, and robust power systems compatible with 50Hz/60Hz and 220V/380V inputs, Herochu demonstrates its readiness to integrate seamlessly into any global industrial environment, delivering reliability and performance that define the future of profile storage.
