Vertical Offcut Storage Rack for Laser Cutting Shops

Laser cutting shops operate on thin margins of efficiency. A fiber laser running at high power can cut a full sheet in minutes, but every nesting run leaves skeletons, drops, and partial sheets that represent real material value. The question for every laser shop is what happens to those offcuts between cuts. Herochu’s vertical offcut storage rack answers that question by bringing organized, point-of-use storage directly to the laser bay.

Point-of-Use Storage Beside the Laser

The economics of laser cutting favor keeping usable offcuts close to the machine. When remnants sit in a remote storage area, operators default to fresh sheet stock because retrieval is faster. A vertical offcut rack placed within reach of the laser bed reverses that calculation. Loaded offcuts stay sorted by thickness and grade, visible, and retrievable in seconds rather than minutes.

Herochu designs these racks with footprints compact enough to sit alongside laser cutters, CNC punch presses, and press brakes without obstructing material handling aisles. The vertical orientation means a rack holding 8 to 15 tiers of offcuts occupies the floor space of a single pallet, not a row of shelving. That density is what makes point-of-use placement realistic in a busy laser bay.

Handling Semi-Finished Sheets and Skeletons

Laser cutting generates more than small drops. Semi-finished sheets — partial cuts held for a second operation, nested remnants awaiting a follow-up job, and large skeletons with usable remaining area — all need staging that keeps them flat, identifiable, and protected from scratching. Horizontal stacking fails here: sheets slide, surfaces scratch against each other, and labels disappear under the next load.

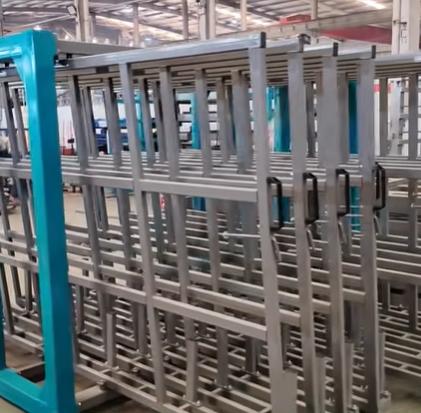

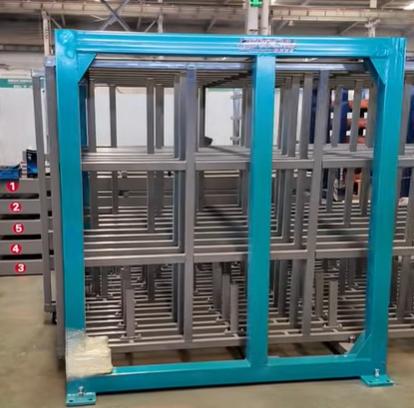

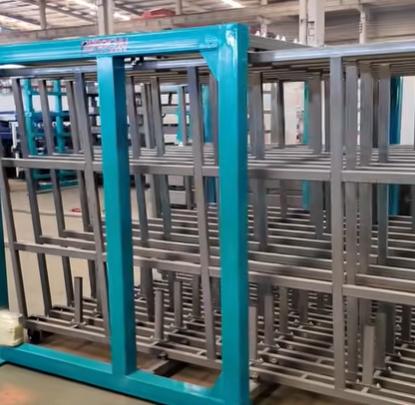

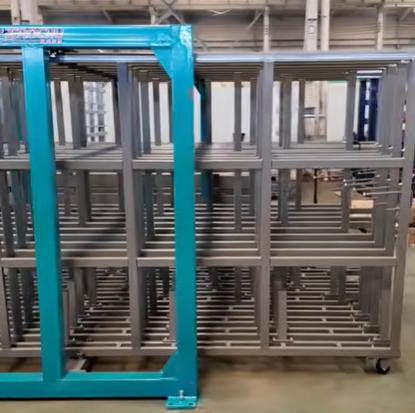

Herochu’s vertical pull-out drawers keep each offcut on edge, separated from neighboring sheets by the drawer structure itself. Non-skid strips on drawer surfaces prevent shifting during extension. Because each drawer operates independently on guided tracks, an operator retrieving a specific semi-finished sheet does not disturb the remnants stored above or below it. That selective access matters in a laser shop running mixed jobs across multiple shifts.

Full-Extension Drawers for Full Visibility

Nesting programmers work best when they can see available material. A remnants rack that only extends partway leaves the back of each drawer hidden — exactly where the most useful offcut often sits. Herochu builds 100% full-extension drawers that roll out beyond the rack frame, exposing the full contents of every tier. The programmer can scan an entire drawer of stainless drops, identify the piece that fits the next nest, and pull it without guessing.

This visibility integrates directly with nesting software workflow. When remnants are organized by material grade and thickness and visibly accessible, operators can feed known offcut dimensions back into the nesting program, closing the loop between storage and cutting. The result is a laser bay that cuts more parts per prime sheet because the offcut inventory is actually used.

Load Capacity and Sheet Size Coverage

Laser cutters handle a range of sheet sizes, and Herochu’s rack lineup matches them:

• HC-V2513-8: sheets to 2500 × 1000 mm, 8 customizable layers, 1000 kg per level, 60 mm clear space
• HC-V3015-8: sheets to 3000 × 1500 mm, 8 customizable layers, 1000 kg per level
• HC-V2010-15, HC-F2513-15, HC-F3015-122: 15-layer configurations for 2000×1000, 2500×1500, and 3000×1500 mm sheets

Clear space between layers is customizable from 30 mm upward, so a rack can be tuned for thin laser-cut drops or heavier plate remnants. Layer count expands from 8 to 15 tiers based on ceiling clearance, and load ratings adjust from 100 kg to 2000 kg per level. Mechanical assistance in the drawer mechanism reduces operator effort, allowing single-person operation even under maximum load.

Recovering Material Value at the Laser Bay

Every offcut reused is prime stock not purchased. For a laser cutting shop running hundreds of sheets a week, the cumulative value of recovered offcuts is significant over a fiscal year. A vertical offcut storage rack from Herochu makes recovery practical — not by adding storage volume, but by turning the space beside the laser into an organized, accessible remnants inventory that operators actually use instead of bypassing.
