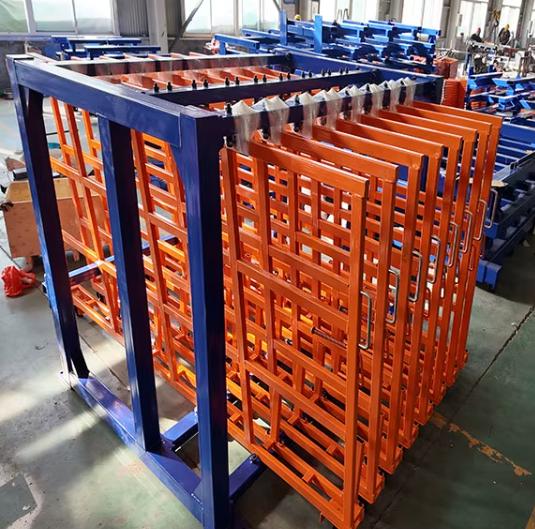

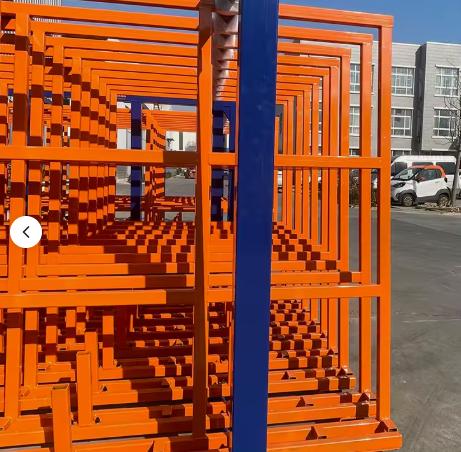

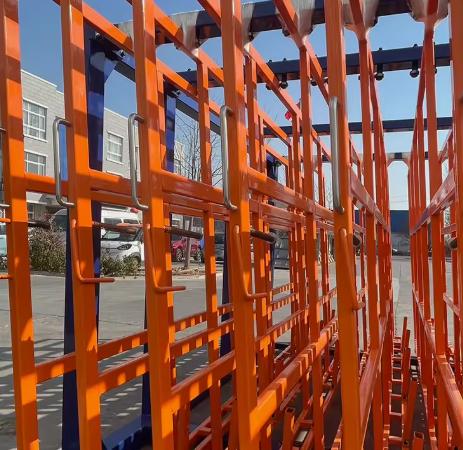

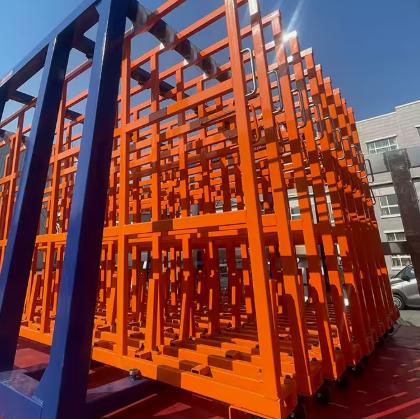

Heavy-Duty Vertical Sheet Metal Surplus Material Rack for Industrial Use

Sheet metal surplus accumulates in every fabrication facility. Production runs end with partial sheets, job orders leave behind odd dimensions, and material returns from rejected parts all contribute to a growing inventory of usable stock that defies conventional storage. The Herochu heavy-duty vertical sheet metal surplus material rack is engineered to bring that inventory under control — with structural capacity, vertical density, and pull-out accessibility designed for continuous industrial operation.

The Surplus Storage Problem in Heavy Fabrication

Surplus sheet material differs from scrap. Scrap goes to the recycling bin; surplus is material with residual production value — partial sheets large enough for secondary parts, setup pieces, or prototype work. The problem is that surplus behaves like scrap when it lacks dedicated storage: it gets stacked, lost, and eventually discarded because nobody can find it when needed.

Horizontal stacking of surplus sheets creates three operational deficits:

1. Access penalty: Reaching the bottom sheet requires removing everything above it, which takes labor time and risks surface damage to the material.
2. Inventory blindness: Once sheets are stacked four or five deep, nobody tracks what exists. Operators cut fresh material rather than search the stack.
3. Floor consumption: Horizontal surplus storage consumes floor area proportional to sheet count — a commodity that no expanding shop can spare.

The Herochu vertical rack resolves all three deficits by rotating storage 90 degrees and giving each surplus sheet its own accessible tier.

Load Capacity Engineered for Plate-Grade Material

Surplus sheet metal is heavy. A single 3000×1500 mm steel plate at 10 mm thickness weighs approximately 353 kg. Eight such plates on a conventional rack would concentrate 2,824 kg on the structure — a load that demands engineering-grade construction, not light-duty shelving.

The Herochu HC-V3015-8 handles this load profile with a 1000 kg per-level rating across eight tiers. The frame utilizes Q235B structural steel with welded joints and reinforced upright members. Slide rails are hardened and pre-loaded to maintain smooth operation at full capacity — a drawer weighing 1000 kg must extend and retract without racking, binding, or sudden drop. Herochu achieves this through precision-machined guide tracks and dual-row bearing carriages that distribute load across the full rail length, not just the extended portion.

For workshops storing lighter surplus such as aluminum sheet or thin-gauge stainless, the HC-V2513-8 model covers 2500×1000 mm dimensions with the same 1000 kg per-level capacity, providing headroom for future material upgrades without requiring a rack replacement.

Vertical Pull-Out Mechanics

The core operational advantage of the Herochu surplus rack is the pull-out tier system. Each level functions as an independent drawer that extends on mechanical-assist slides, exposing the full sheet surface for selection and retrieval. This is fundamentally different from fixed-shelf vertical storage, where sheets are accessible only at the front edge.

When the drawer extends, the operator can:

• Visually inspect every sheet in the tier without moving any other material
• Select by dimension and grade — pulling the correct sheet directly without disturbing adjacent tiers
• Use mechanical lifting aids — a hoist, crane, or vacuum lifter can engage the sheet from above once the drawer is extended, enabling single-operator handling of heavy plates
• Return surplus material to the correct tier after a partial cut, maintaining the categorized inventory

The mechanical-assist discharge method reduces the force required to extend a fully loaded drawer. Operators are not wrestling with 1000 kg of dead weight; the guided slide system carries the load while the operator provides directional input. This ergonomic design protects workers from strain injuries that accumulate with repetitive heavy-material handling.

Customization for Variable Surplus Profiles

No two fabrication shops generate the same surplus profile. A stainless steel shop may produce narrow offcuts from coil-fed operations. An aluminum fabricator may have large-format remnants from architectural panel work. A job shop handling both steel and aluminum needs separation between material grades to prevent galvanic contamination.

Herochu configures each surplus rack to the specific material profile:

UHMW polyethylene strips on tier surfaces protect sheet finishes from scoring during slide operation — critical for stainless, aluminum, and pre-painted materials where surface integrity determines part acceptance. For shops storing mixed gauges, additional slat dividers within each tier separate individual sheets, preventing edge damage from metal-on-metal contact.

Workshop Safety and Material Protection

Stacked surplus sheets present a documented safety hazard. A shift in the stack, a vibration from nearby equipment, or an accidental bump can send heavy plates sliding off the stack edge — a serious risk to personnel working in the area.

The Herochu rack contains each sheet within a structural drawer envelope. Sheets cannot slide off because the tier walls and drawer geometry prevent lateral movement. When the drawer is retracted, the material is fully enclosed within the rack footprint. When extended, the load is supported across the full slide rail length, preventing tip-forward instability.

Deployment and Return on Investment

The economic case for vertical surplus storage is direct: the rack pays for itself in recovered material value and reduced fresh-sheet purchasing. Workshops that previously wrote off surplus as “unusable” discover, after implementing categorized vertical storage, that a significant percentage of their offcuts are production-ready. The Herochu rack makes that material visible, accessible, and accountable — converting storage cost into material recovery.

For heavy fabrication operations where surplus sheet metal represents real money sitting on the floor, the Herochu heavy-duty vertical surplus material rack provides the structural capacity, tier density, and ergonomic access needed to reclaim that value from day one of installation.
