Herochu Fixed Rotary Loading Manipulator: Heavy-Duty Electric Servo Solution

The manufacturing sector faces persistent pressure to reduce manual handling injuries while improving throughput. Sheet metal fabrication shops, in particular, struggle with repetitive plate loading tasks that consume labor hours and create bottlenecks before cutting or punching operations. Herochu addresses this challenge directly with its Fixed Rotary Loading Manipulator series, a family of electrically driven, servo-controlled material handling systems engineered for feeding widths from 1250×1000 mm up to 4000×2000 mm and plate weights reaching 1000 kg.

Architectural Advantages of the Fixed Rotary Loading Manipulator

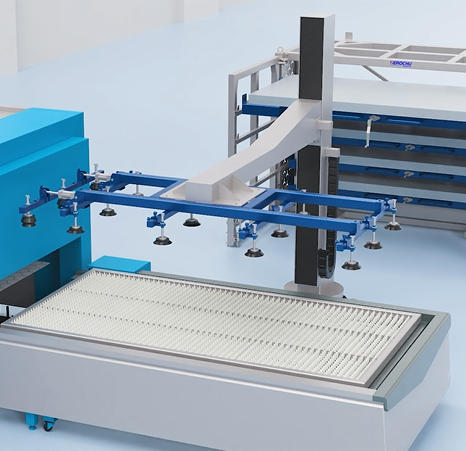

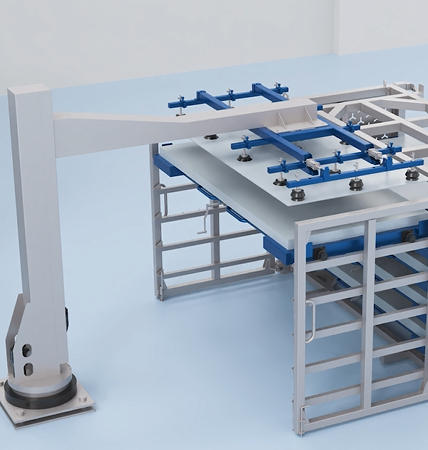

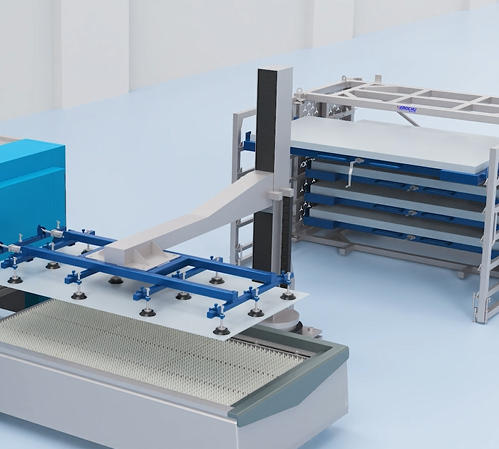

Unlike gantry-style loaders that require extensive floor space and overhead clearance, the Herochu Fixed Rotary Loading Manipulator employs a compact rotary base combined with a servo-driven swing arm. This configuration minimizes the machine’s footprint while maintaining full access to the work envelope. The rotary axis provides 180-degree or configurable positioning, allowing the manipulator to serve multiple stations or to alternate between raw material pallets and finished part tables.

The manipulator’s stationary mounting base eliminates the reliability concerns associated with rail-guided or mobile loaders. Once bolted to the factory floor, the Herochu Fixed Rotary Loading Manipulator maintains consistent positional accuracy over years of operation. No cable management systems for moving carriages, no rail alignment maintenance, and no recalibration after floor cleaning procedures. This stationary rotary architecture proves particularly valuable in high-vibration environments, such as facilities with multiple stamping presses or heavy HVAC equipment operating nearby.

Electric Servo Drive System Versus Pneumatic Alternatives

Many loading manipulators on the market rely on pneumatic cylinders for actuation. Pneumatic systems require compressed air infrastructure, which typically operates at 30-40% energy efficiency. Air leaks, pressure drops, and moisture contamination further degrade performance over time. Herochu’s Fixed Rotary Loading Manipulator uses electric servo motors for all axes, converting nearly all input energy into useful mechanical work.

The electric servo architecture delivers tangible operational benefits. Speed and acceleration profiles become fully programmable, enabling the manipulator to move slowly when handling surface-sensitive materials like pre-coated steel or brushed aluminum. When moving structural plates with rough finishes, operators can increase traverse speeds without worrying about slippage. The servo system also provides real-time torque and position feedback, allowing the manipulator to detect unexpected resistance—such as a plate edge catching on a stack separator—and respond by backing off before attempting a different approach angle.

Suction Cup Configuration Across the HC Series

Herochu offers five standard models under the HC-R3015 and HC-R4020 designations. The Fixed Rotary Loading Manipulator lineup includes the HC-R3015-500, HC-R3015-750, HC-R3015-1000, HC-R4020-500, and HC-R4020-750. Each model specifies a maximum feeding plate thickness ranging from 8 mm to 20 mm, though Herochu can customize end effectors for thicker materials upon request.

The suction cup arrangement varies intelligently across models. The HC-R3015-500 and HC-R3015-750 carry 15 suction cups each, with diameters of 150 mm and 200 mm respectively. This configuration suits typical automotive stamping blanks and general fabrication plates. The HC-R3015-1000 model, designed for 1000 kg plates, deploys 118 suction cups of 250 mm diameter. This high cup count distributes lifting forces across the entire plate surface, preventing localized deflection that could damage thin materials or cause uneven vacuum distribution.

For wide-format applications, the HC-R4020-500 and HC-R4020-750 models maintain 15 suction cups each while increasing the feeding plate thickness capacity to 8 mm and 12 mm respectively. The larger 4000×2000 mm maximum feeding width accommodates standard 4×8 foot sheets as well as metric-sized plates common in European and Asian markets.

Modular Assembly for Rapid Deployment and Reconfiguration

The manipulator’s modular assembly structure deserves special attention. Fabrication shops often rearrange equipment as product mixes change. A loading manipulator that requires welded bases or permanent structural modifications becomes an obstacle to future reorganization. Herochu designed its Fixed Rotary Loading Manipulator with bolted subassemblies that separate into transportable modules. The rotary base, vertical column, swing arm, and suction cup tooling all disconnect using standard hand tools.

This modularity reduces installation time significantly. A two-person crew can complete mechanical assembly within a single shift. Electrical connections use standardized industrial connectors, eliminating the need for on-site wiring certifications beyond basic power hookups. When production requirements shift—for example, moving from small laser-cut brackets to large architectural panels—operators can swap the suction cup tooling or adjust the arm reach without replacing the entire manipulator.

Safety Systems Built for Industrial Environments

Herochu integrated two critical safety features directly into the Fixed Rotary Loading Manipulator’s control architecture. The emergency stop protection circuit operates independently of the main controller, providing a failsafe mechanism that removes power from all servo drives within milliseconds of activation. Multiple e-stop buttons are positioned on the manipulator’s base, arm, and handheld pendant, ensuring operators can always reach a stop control regardless of their position relative to the machine.

The automatic braking system engages whenever the servo drives lose power or receive a stop command. Mechanical brakes on each axis hold the arm position against gravity, preventing the drop hazard common with pneumatic systems that rely on air pressure for holding torque. This braking system also enables safe manual intervention during setup. Operators can power down the manipulator, and the arm remains stationary rather than drifting downward under its own weight.

Return on Investment Calculations for Fabrication Shops

Replacing manual plate loading with a Herochu Fixed Rotary Loading Manipulator typically generates payback periods between 12 and 24 months for shops processing more than 500 plates per week. The calculation considers three primary factors: labor reduction, throughput improvement, and damage reduction.

Labor reduction is the most direct benefit. A single manipulator can replace two to three material handlers per shift. At a fully burdened labor cost of $35perhourperworker,eliminatingtwohandlersonatwo-shiftoperationsavesapproximately$291,000 annually. The manipulator’s electric power consumption adds only $1,200to$2,500 per year depending on local electricity rates and duty cycle.

Throughput improvement comes from consistent cycle times. Manual loading introduces variability—fatigued workers move slower, and even attentive operators take longer when handling heavy plates. The Herochu Fixed Rotary Loading Manipulator completes each cycle within the programmed time window, enabling machine tools like laser cutters or punch presses to operate at maximum utilization.

Damage reduction often surprises new owners. Manual plate handling frequently produces edge dings, surface scratches, and corner bends that render parts nonconforming. The manipulator’s servo-controlled gentle placement and vacuum gripping eliminate handling damage entirely for properly configured applications.

Integration with Existing Machine Tools

The Herochu Fixed Rotary Loading Manipulator communicates with downstream equipment through standard I/O interfaces. Digital signals for cycle start, cycle complete, part present, and fault conditions integrate with most CNC controllers from manufacturers such as Amada, Trumpf, Mazak, Bystronic, and Prima Power. For older machines without automation interfaces, the manipulator can operate in semi-automatic mode where the operator pushes a confirmation button after the manipulator loads each plate.

This flexibility makes the Fixed Rotary Loading Manipulator suitable for retrofits as well as new machine purchases. Shops protecting existing capital equipment investments can automate loading without replacing their installed base of cutting and punching machinery.
