Heavy Duty Pneumatic Handling System for 500kg Sheet Metal Lifting

Metal fabrication facilities processing thick plates and large-format sheets need material handling equipment that sustains heavy loads through continuous shift cycles. Electric hoists and overhead cranes move weight, but they require trained operators, dedicated floor space, and constant chain or sling changes when switching material types. The Herochu heavy duty pneumatic handling system — also functioning as a pneumatic manipulator for sheet metal crane material lifter operations — takes a different approach. It uses compressed air to balance loads up to 500 kg, letting a single operator maneuver large steel plates with minimal physical effort while maintaining full control over positioning and rotation.

Pneumatic Load Balancing for Heavy Materials

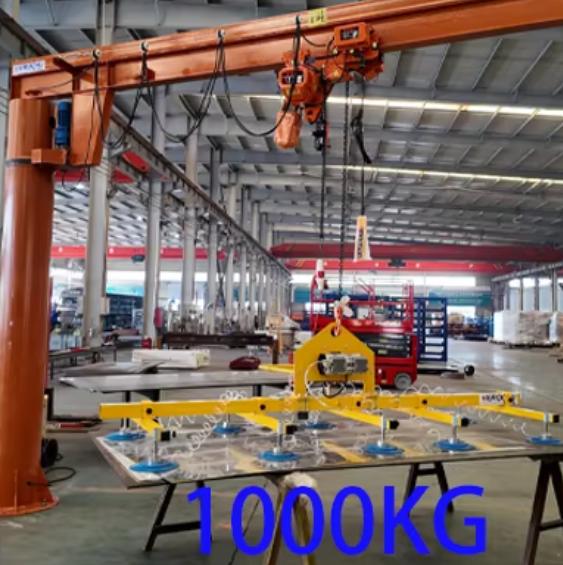

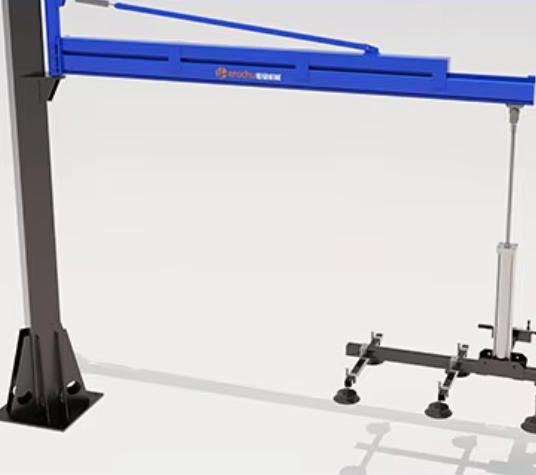

The operating principle behind the Herochu HC-RP series is pneumatic equilibrium. Compressed air enters a cylinder that counterbalances the combined weight of the sheet and the lifting arm assembly. When the system is balanced, the load floats — the operator applies gentle directional force to move the sheet through the working area, and the manipulator stops and holds wherever the operator releases. This balance is what distinguishes a pneumatic manipulator from a crane or hoist: there is no pendulum swing, no brake engagement delay, and no creep under load.

For a 500 kg carbon steel plate at 4000 x 2000 mm, this means one person can lift, rotate 220 degrees, and position the sheet on a machine table without strain. The same operation performed with a jib crane and chain sling requires two workers — one to operate the crane and one to guide the load, attach slings, and steady the plate during rotation. The labor savings compound across a production shift where sheet changes happen every few minutes.

Two Model Tiers for Different Load Classes

Herochu offers the pneumatic manipulator in two primary configurations to match different sheet handling requirements:

The HC-RP3015-300 handles sheets up to 3000 x 1500 mm with a 300 kg maximum load capacity. This model suits fabrication shops cutting thin to medium gauge plate — 1 to 8 mm thickness — on laser or plasma cutting beds. The 300 kg ceiling covers most standard sheet sizes in this thickness range, including full 3 x 1.5 meter carbon steel plates at 6 mm gauge.

The HC-RP4020-500 extends the envelope to 4000 x 2000 mm sheets at 500 kg maximum load. This tier targets shops processing thicker plates — 1 to 12 mm or up to 20 mm — where individual sheet weights push past the 300 kg threshold. The larger boom length and column height accommodate the wider material dimensions without reducing the 700 mm lifting stroke that positions sheets at varying machine table heights.

Both tiers share the same 3600 mm column height and 3600 mm boom length, meaning floor space requirements and installation preparation remain consistent regardless of the selected load class.

Safety Architecture for Continuous Operation

Heavy material handling carries inherent risk. A 500 kg plate dropped from any height causes severe equipment damage and personnel injury. The Herochu manipulator integrates multiple safety layers that address these risks at the pneumatic system level.

The emergency air-cut protection system is the primary safety mechanism. When air supply pressure drops below the threshold — whether from compressor failure, hose rupture, or intentional shutoff — a non-return valve immediately seals the vacuum circuit. The sheet remains gripped and suspended, not dropped. Operators can then guide the load down manually at a controlled descent rate. This fail-safe design means a sudden air loss never results in an uncontrolled drop.

The anti-collision device provides a secondary protection layer. When the boom or cup frame contacts an obstruction during movement, the device triggers an immediate stop, preventing the operator from driving the sheet into a machine table edge, storage rack, or adjacent equipment. Combined with the stop-at-any-position holding capability, these protections allow operators to work at sustained pace without the constant vigilance that crane operation demands.

Multi-Material Handling Without Reconfiguration

Metalworking shops rarely process a single material type. A typical day might involve carbon steel sheets in the morning, stainless steel plates after lunch, and aluminum blanks for a rush order in the afternoon. Each material has different surface characteristics, weight profiles, and handling sensitivities.

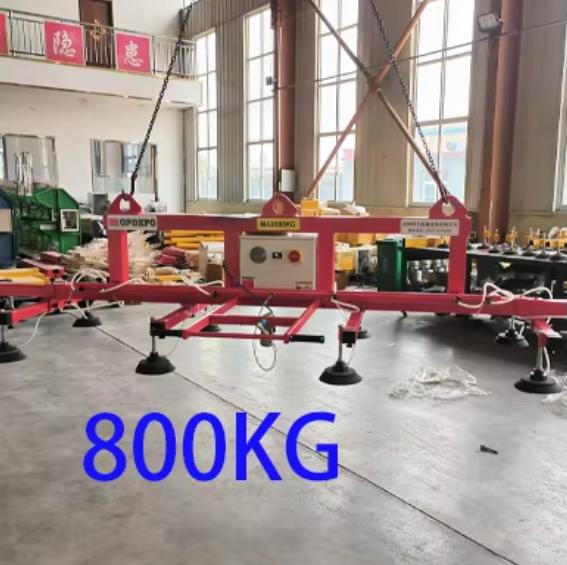

The Herochu vacuum suction cups handle all these materials without modification. Carbon steel’s slightly rough mill scale provides good vacuum seal texture. Stainless steel’s smooth surface creates an excellent seal. Aluminum and its oxide layer do not compromise cup adhesion. The operator simply picks up the next sheet — no sling changes, no magnet adjustment, no delay between material batches.

This material flexibility extends to plastic sheets as well, broadening the manipulator’s application range beyond pure metalworking into composite and plastics fabrication environments where similar large-format sheet handling occurs.

Structural Engineering for Long-Term Reliability

The manipulator’s column and boom are fabricated from heavy-wall steel tubing, welded and stress-relieved to maintain dimensional stability under repeated heavy load cycles. The base plate anchors to the floor via bolted connections, providing a rigid foundation that prevents column deflection during full-load boom extension.

All pivot bearings are sealed units rated for the dust, vibration, and intermittent oil exposure typical of metal fabrication floors. The vacuum cups are polyurethane — chosen for resistance to cutting fluids, way oils, and surface contaminants on metal sheets. The pneumatic circuit uses fittings and valves rated for industrial air supply conditions, including moisture and particulate content found in non-dedicated shop air systems.

Herochu provides a one-year warranty on the manipulator, covering structural integrity and pneumatic component performance. The warranty reflects the engineering margin built into every load-bearing component — these machines are designed for the daily reality of metal fabrication, not occasional light-duty use.

Economic Justification

The investment in a pneumatic handling system pays back through three channels. First, labor reduction: one operator replaces two at the sheet loading station. Second, cycle time improvement: sheet changes drop from two to three minutes down to under thirty seconds. Third, damage reduction: vacuum cups do not scratch polished surfaces, bend thin sheets, or leave chain sling marks — eliminating rework on material that must meet cosmetic surface standards.

For shops running two or three cutting machines with frequent sheet changes, the combined savings typically justify the equipment cost within the first year of operation.
