Jib Crane Hoist Electric Chain Suction Cup Vacuum Lifter

The combination of a jib crane hoist with electric chain drive and suction cup vacuum lifter technology creates a material handling solution uniquely suited to confined workspaces and precision positioning requirements. Herochu has engineered integrated systems that mount directly to jib crane columns, providing articulated lifting coverage across defined work areas while maintaining the compact footprint essential for crowded workshop environments.

Jib Crane Configuration for Vacuum Lifting

Jib cranes provide ideal mounting platforms for vacuum lifters in applications where overhead bridge crane coverage is unavailable or impractical. The jib crane configuration consists of a vertical column supporting a horizontal boom that rotates through a defined arc, typically 180 to 360 degrees. Herochu mounts the vacuum lifter assembly to the boom, with the electric chain hoist providing vertical motion and the suction cup array handling load engagement and release.

The cantilever design of the jib crane allows the vacuum lifter to reach across worktables, machine beds, and storage areas without requiring the crane itself to travel. This fixed-position versatility makes the jib crane hoist electric chain suction cup vacuum lifter particularly valuable in facilities where floor space limitations preclude travelling crane installations.

Electric Chain Hoist Integration

The electric chain hoist component provides precise vertical control essential for vacuum lifting operations. Unlike manual hoists that require physical effort for raising and lowering, electric chain hoists offer push-button control that allows operators to position the suction cup array with millimetre accuracy. This precision proves critical when engaging loads—the suction cups must contact the workpiece surface uniformly to achieve proper sealing.

Herochu integrates electric chain hoists with the vacuum lifter assembly to create a unified lifting system. The hoist raises and lowers the suction cup frame, while the vacuum system engages and releases the load. This integration eliminates the need for separate control of hoist and vacuum functions, simplifying operation and reducing training requirements.

Suction Cup Array Design for Jib Mounting

The suction cup array mounted on jib crane hoist systems must accommodate the articulation and reach characteristics of the jib configuration. Herochu designs suction cup frames that maintain stability during boom rotation and hoist movement, preventing load sway that could compromise positioning accuracy.

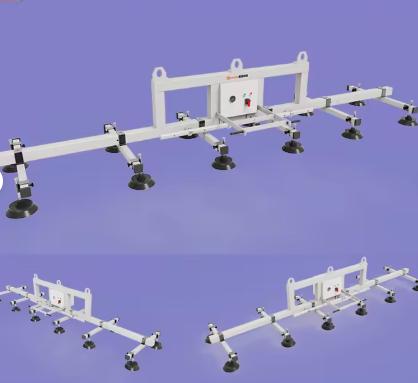

The eight-pad configuration standard on Herochu systems provides distributed holding force across the workpiece surface【0†L?】. Individual pad positions adjust to accommodate different sheet sizes and shapes, ensuring optimal coverage regardless of load geometry. For applications requiring custom configurations, adjustable rectangular clamps allow flexible positioning of suction pads to match specific workpiece dimensions.

Workspace Optimisation Benefits

Jib crane hoist electric chain suction cup vacuum lifters deliver significant workspace optimisation benefits. The jib crane occupies minimal floor space—only the column footprint—while providing lifting coverage across the entire boom radius. This efficient use of space allows facilities to maximise productive floor area without sacrificing lifting capability.

The compact design of Herochu’s jib-mounted systems saves approximately 700mm in height compared to conventional hoist configurations【0†L?】. This low-clearance profile proves particularly valuable in facilities with limited overhead space, allowing the vacuum lifter to operate effectively where taller equipment would be impractical. The retractable cantilever design further conserves space when the equipment is idle, folding back to reclaim aisle width for additional storage or equipment.

Operational Characteristics

The operation of jib crane hoist electric chain suction cup vacuum lifters follows a straightforward sequence. The operator positions the suction cup array over the workpiece using the jib crane’s rotation and the hoist’s vertical control. Once the suction cups contact the workpiece surface, the vacuum system engages, creating the holding force necessary for lifting. The hoist then raises the load, the jib crane rotates to the target position, and the hoist lowers the load for placement.

Throughout this sequence, the operator maintains control through a combination of manual guidance and remote control. The electric chain hoist provides smooth, controlled vertical motion, while the jib crane’s rotation allows horizontal positioning across the work envelope. This combination of control modes enables precise placement even in confined spaces.

Safety Features for Jib-Mounted Systems

Safety systems integrated into jib crane hoist electric chain suction cup vacuum lifters address the specific risks of articulated lifting equipment. The air cut-off protection system prevents load release in the event of pneumatic supply failure【0†L?】. Anti-collision devices protect against unintended contact with surrounding equipment or structures during boom rotation.

The electric chain hoist incorporates overload protection that prevents lifting beyond rated capacity. This protection activates automatically when loads exceed the hoist’s rated limit, preventing equipment damage and potential accidents. The hoist also features emergency stop functionality that immediately halts motion in critical situations.

Application Environments

Jib crane hoist electric chain suction cup vacuum lifters find application across diverse industrial environments. In laser cutting operations, these systems feed sheets to the cutting bed and remove finished parts. In bending departments, they position blanks on press brakes and remove formed components. In warehousing, they handle sheet storage and retrieval, reducing manual handling requirements.

The versatility of these systems extends to materials beyond metal. The same equipment that handles steel plates also manages glass panels, stone slabs, acrylic sheets, and composite materials. This material flexibility makes the jib crane hoist electric chain suction cup vacuum lifter a valuable asset in facilities processing diverse workpiece types.

Customisation and Configuration Options

Herochu offers extensive customisation options for jib crane hoist electric chain suction cup vacuum lifters. The company engineers each system around the specific workshop layout, crane rails, and daily mix of sheet sizes. This tailored approach ensures optimal performance for each unique application, avoiding the compromises inherent in standardised equipment.

Configuration options include different boom lengths to achieve required reach, various hoist capacities to match load requirements, and multiple suction cup arrangements to suit workpiece geometries. Power options include both pneumatic and electric operation, accommodating facilities with different utility availability.
