The transition from pipe production to finished goods storage represents a critical phase in manufacturing operations. The steel pipe unloading and palletizing machine addresses this transition by automating the removal of finished pipes from production lines and their organization into stacked loads ready for storage or shipment. Herochu has developed comprehensive steel pipe unloading and palletizing solutions that streamline this process, reducing labor requirements and improving operational efficiency.

Steel pipe production lines generate continuous output that must be managed efficiently to prevent bottlenecks and maintain production flow. The steel pipe unloading and palletizing machine handles this challenge by receiving pipes from the mill, aligning them for stacking, and building pallet loads according to predetermined patterns. This automation eliminates the manual handling that traditionally created production constraints and quality inconsistencies.

Machine Architecture and Components

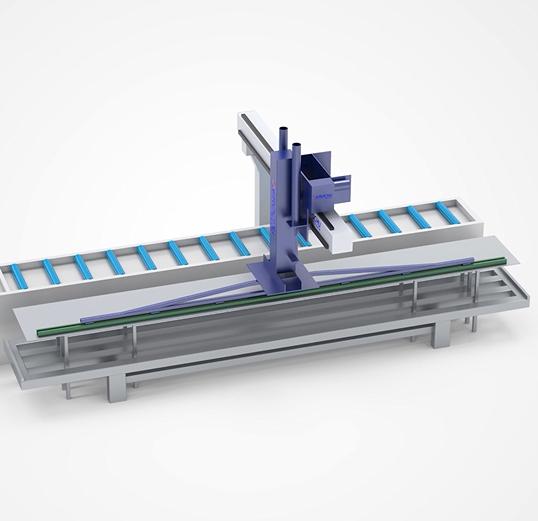

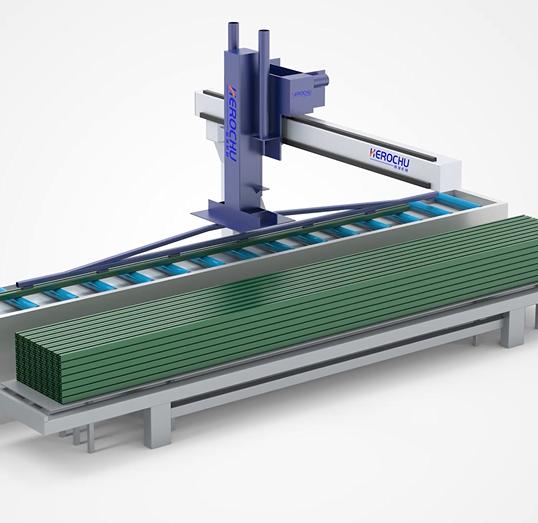

The steel pipe unloading and palletizing machine is a complex system comprising multiple coordinated subsystems. The infeed section receives pipes from the production line via roller tables or chain conveyors, with sensors detecting pipe presence, position, and orientation. An alignment mechanism ensures that pipes are properly positioned before entering the palletizing section.

The palletizing mechanism – which may be fork-type, magnetic, or robotic – lifts pipes from the infeed conveyor and places them onto pallets or stacking areas. For magnetic-type systems, electromagnets provide secure lifting without mechanical clamping that could damage pipe surfaces. Fork-type systems use mechanical arms that slide beneath pipes for lifting and positioning.

The control system manages the entire operation, coordinating infeed, alignment, counting, stacking, and discharge functions. Advanced control technology enables the system to handle different pipe sizes and stacking patterns through programmable parameters rather than mechanical adjustments.

Operational Workflow

A typical steel pipe unloading and palletizing operation follows a sequence that ensures efficient, consistent stacking:

Infeed and Alignment – Finished pipes from the production line are fed onto the machine’s infeed conveyor. Sensors detect each pipe and guide it into proper alignment for stacking.

Counting and Layer Formation – The system counts pipes as they enter the stacking area, building layers according to the programmed pattern. For hexagonal bundles, pipes are arranged in staggered layers that interlock for stability.

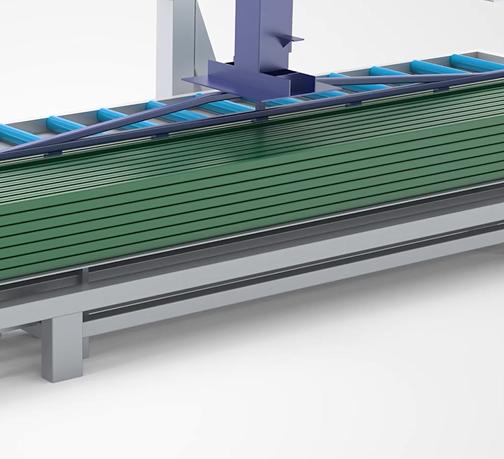

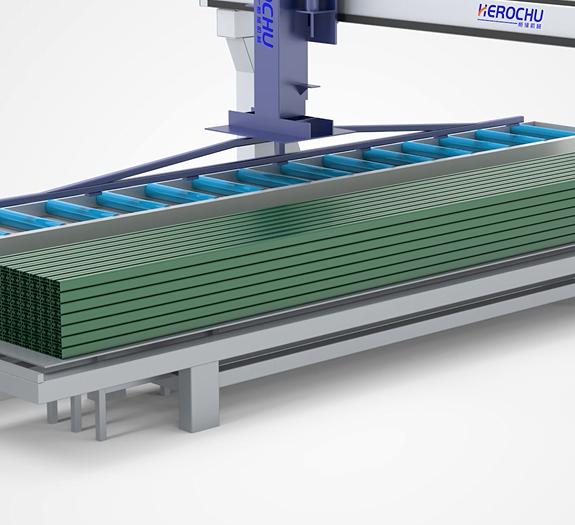

Stacking – Each completed layer is transferred to the stacking area, where it is placed on the growing pallet load. The process continues until the programmed stack height is reached.

Discharge – Completed pallet loads are conveyed out of the palletizing area for strapping, weighing, and storage. The system then retrieves an empty pallet and begins the next cycle.

Bundling and Packaging Integration

Modern steel pipe unloading and palletizing machines integrate bundling and strapping functions to create complete end-of-line solutions. After stacking, the load can be automatically strapped with steel or PET banding, securing the pipes for transport and storage. The strapping tension is adjustable to accommodate different pipe materials and bundle configurations.

The integrated system may also include weighing functions that record the weight of each pallet load for inventory management and shipping documentation. This data integration supports traceability and quality management throughout the supply chain.

Customization for Specific Requirements

Steel pipe unloading and palletizing machines must be tailored to the specific requirements of each operation. Key parameters that drive customization include:

Pipe Diameter – Systems can be designed for pipes ranging from small-diameter tubing to large-diameter structural pipes.

Pipe Length – Handling capabilities extend from short pipe sections to lengths exceeding 12 meters.

Production Speed – The machine’s throughput capacity must match the output rate of the upstream production line.

Stacking Patterns – The system must support the specific bundle configurations required for downstream handling and customer specifications.

Herochu’s engineering team works closely with each customer to define these parameters and design systems that deliver optimal performance for the specific application.

Benefits of Automated Steel Pipe Unloading and Palletizing

The adoption of steel pipe unloading and palletizing machines delivers measurable benefits across operations. Productivity increases substantially as machines operate continuously without fatigue or breaks. Consistency improves because the machine follows precise program parameters every cycle, producing uniform loads that maximize pallet space utilization.

Safety improves as workers are removed from hazardous lifting and positioning tasks. Quality improves because pipes are handled consistently and gently, reducing damage from impacts or mishandling. Labor costs decrease as the machine replaces multiple manual handlers.

Herochu’s Steel Pipe Unloading and Palletizing Solutions

Herochu offers comprehensive steel pipe unloading and palletizing solutions that incorporate the latest automation technology. Each system is engineered for reliability in demanding industrial environments and backed by the company’s commitment to quality and customer support.
