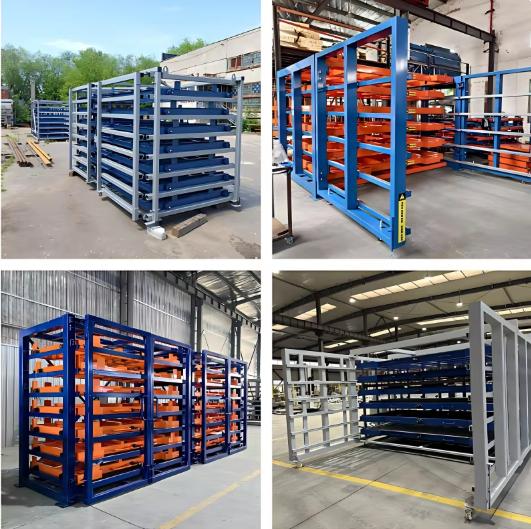

Heavy-Duty Electric Telescopic Sheet Metal Rack

Herochu’s Heavy-Duty Electric Telescopic Sheet Metal Rack represents the pinnacle of industrial sheet metal storage engineering. Combining heavy-gauge structural steel frames with advanced electric motor drives and 100 percent full-extension telescopic drawers, this system transforms traditional floor-stacking practices into efficient, automated vertical storage solutions. The system handles dense, heavy materials like sheet metal, steel plates, and heavy piping, offering a blend of automation and heavy-duty storage that redefines warehouse productivity.

Full-Extension Telescopic Design

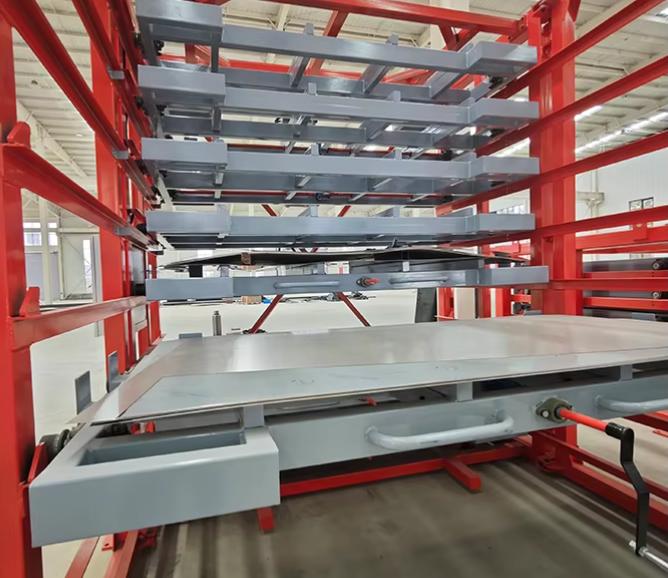

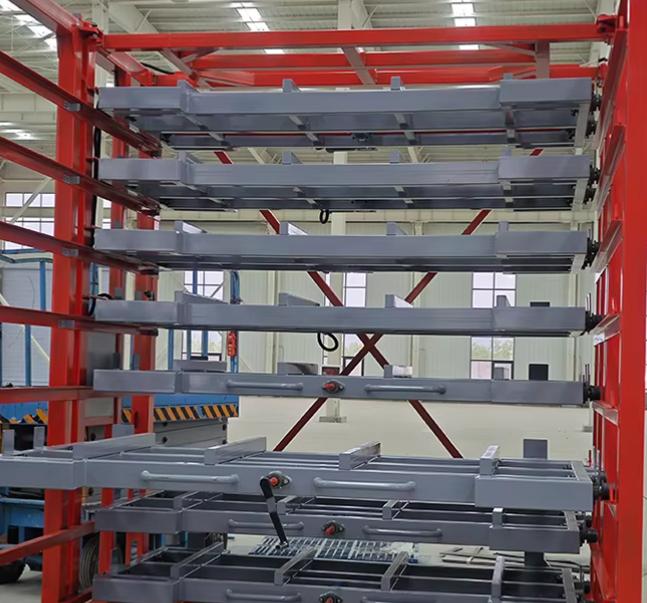

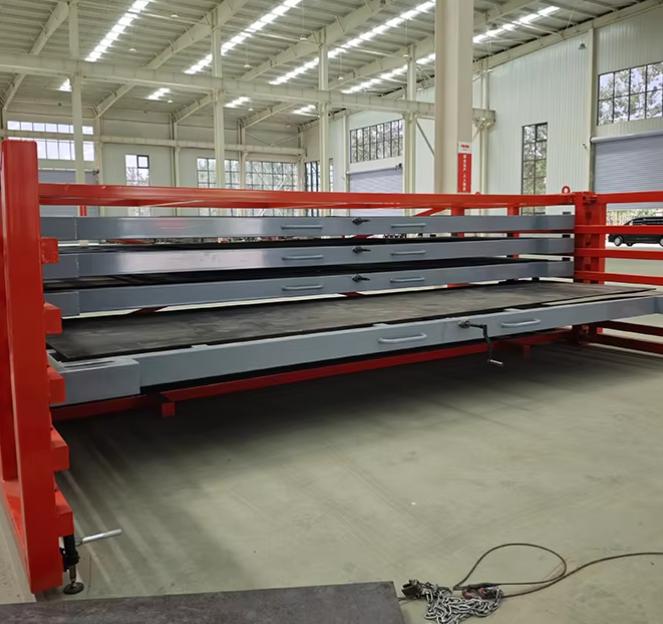

The defining feature of Herochu’s Heavy-Duty Electric Telescopic Sheet Metal Rack is its 100 percent full-extension telescopic drawer mechanism. Each drawer level extends completely outside the rack frame, providing unobstructed overhead access for bridge cranes, vacuum suction lifters, or magnetic hoists to perform vertical loading and unloading. This design eliminates the interference that plagues traditional racking systems, where drawer extension is limited and crane access is restricted.

The electric telescopic mechanism is housed inside a rigid Q235B structural steel frame. Each drawer extends outward under servo-controlled motor drive, giving the operator direct overhead crane access to every stored sheet. This represents a fundamental improvement over manual telescopic systems that require physical cranking for every access cycle.

Extreme Load Capacity

The Heavy-Duty Electric Telescopic Sheet Metal Rack from Herochu is built to handle extreme weights that would overwhelm conventional storage equipment. The structural frame utilizes high-strength carbon steel with a dual-beam crossbar design, providing the foundation required for loads up to 20 tons per tier. The system typically handles 3,000 kg to over 5,000 kg per drawer level without sagging or binding.

This extreme load capacity makes the system ideal for steel service centers, heavy fabrication shops, shipbuilding facilities, and any operation processing plate steel in production volumes. The engineering behind this capacity is validated through finite element analysis, ensuring that the structural integrity meets the demands of the most challenging industrial applications.

Space Utilization and Efficiency

Herochu’s Heavy-Duty Electric Telescopic Sheet Metal Rack maximizes vertical warehouse height, enabling high-density material storage in a compact footprint. The system dramatically reduces floor area requirements compared to flat ground storage, with space utilization reaching 100 percent. Storage density increases by 150 percent compared to traditional methods.

For example, a warehouse with an area of 1000 square meters can store 2 to 3 times more materials after installing Herochu’s electric telescopic rack, significantly reducing the cost of warehouse rental or expansion. This space efficiency is achieved without compromising accessibility—every sheet in the system is directly accessible without moving other materials.

Operational Workflow and Integration

The operational workflow of Herochu’s Heavy-Duty Electric Telescopic Sheet Metal Rack is designed for seamless integration with existing material handling infrastructure. The operator selects the required material shelf using the electric control panel or remote. The motorized drive system automatically extends the selected drawer 100 percent outward. An overhead crane or vacuum lifter directly lowers or lifts steel plates vertically without interference. The drawer retracts back into the rack framework at the press of a button, locking securely into place.

This workflow is particularly valuable for laser, plasma, and waterjet cutting shops, where quick material retrieval directly feeds CNC cutting tables. Heavy machinery manufacturing facilities benefit from efficient organization of thick carbon steel, stainless steel, and alloy plates. Metal service centers and fabrication operations achieve streamlined inventory management across diverse metal sheet sizes, thicknesses, and grades. Automotive and aerospace production facilities gain secure, scratch-free storage for high-precision metal stock.

Safety and Protection

Built-in safety interlocks, mechanical stops, limit switches, and anti-tipping mechanisms protect workers, prevent crane collisions, and safeguard valuable metal sheets from scratches or deformation. Each drawer holds sheets in isolation, eliminating the metal-on-metal friction that damages surfaces during retrieval. The system carries full CE certification, validating its structural and electrical safety claims. ISO 9001 compliance ensures that manufacturing processes meet rigorous quality standards.

The Heavy-Duty Electric Telescopic Sheet Metal Rack from Herochu represents the culmination of decades of engineering expertise in industrial storage solutions. For facilities seeking to maximize storage density, enhance operational efficiency, and protect valuable material assets, this system delivers performance that transforms warehouse operations and drives competitive advantage.
