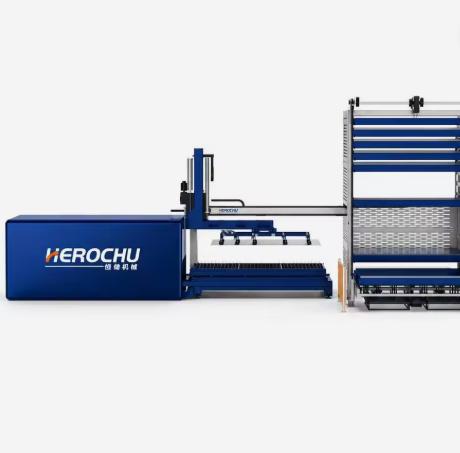

Gantry Loading System for Steel & Aluminum Laser Lines

A gantry that handles mild steel acceptably may fail on aluminum. The metal is lighter, more prone to surface scratching, and often arrives with protective film that vacuum cups can struggle to grip. Stainless steel presents its own challenges: work-hardened edges, reflective surfaces that confound some sensors, and a tendency to gall if dragged rather than lifted. Herochu designed its Gantry Loading System for Steel & Aluminum Laser Lines with these material differences in mind. The system does not treat “sheet metal” as a single category. It adapts its handling parameters—vacuum force, separation technique, acceleration profile—to the material at hand.

The Manipulator: Where Material Meets Machine

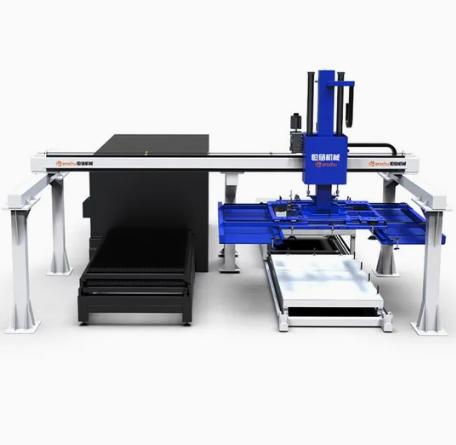

At the center of the system sits a composite truss manipulator that traverses the gantry structure with variable frequency drive. The end effector combines vacuum suction with mechanical gripping, a dual strategy that allows the system to load raw sheets with gentle distributed force and unload cut skeletons with positive engagement. For aluminum, the vacuum cups use a softer compound and a lower holding pressure to avoid marking the surface. For steel, higher vacuum levels and a more aggressive separation cycle ensure reliable pickup from dense stacks. Each suction cup has an independent control switch, and the PLC activates only the zones in contact with solid material. This matters for nested sheets where large cutouts would otherwise bleed vacuum and compromise grip on the remaining skeleton.

Separation Technology: The Difference Between Running and Babysitting

Double-sheet pickup is the most common failure mode in automated sheet handling. It happens when residual oil, vacuum between flat surfaces, or simple surface tension causes two sheets to lift as one. The consequences range from a rejected part to a damaged laser head. Herochu’s separation system addresses this with a mechanical and pneumatic sequence. The Z-axis applies a controlled micro-bending force to the sheet edge, breaking the bond between plates. Compressed air then injects through precision nozzles into the gap, completing the separation. Load sensors and thickness detection verify the result before the gantry moves the sheet toward the laser. The entire sequence adds seconds to the cycle—far less time than recovering from a double-sheet crash.

Specifications for Real Production Environments

The HC-RT series covers sheet dimensions from 2500×1300 mm to 6000×1500 mm, with load capacities of 300 kg to 500 kg. Gantry traverse speed runs 10–30 m/min, lifting speed 5–10 m/min, and fork adjustment 5–20 m/min. Repeatability holds at ±2 mm. Air supply requires 0.6–0.7 MPa. The gantry structure uses a dual-girder composite truss architecture that distributes bending loads across paired guidance rails, maintaining rigidity even under long-stroke operation. Longitudinal travel is customizable up to 50 meters for large workshop layouts. The pneumatic rotating structure turns sheets 90 degrees, accommodating transverse and longitudinal feeding without manual intervention. For shops running both steel and aluminum, the system stores material-specific handling recipes that the operator recalls from the touchscreen—no re-teaching required when switching between jobs.

Integration Without Disruption

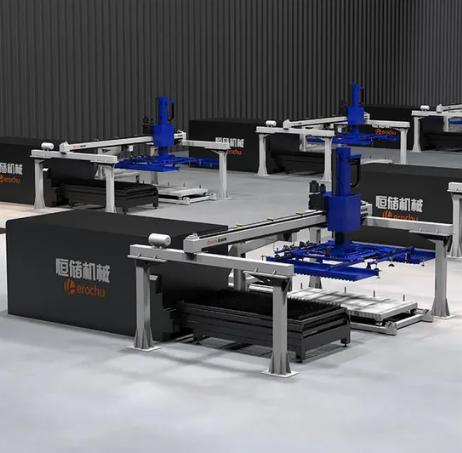

Herochu designs the gantry system as a modular upgrade rather than a wholesale replacement. It interfaces with existing laser cutting machines through standard communication protocols and does not require modifications to the laser’s CNC or nesting software. For fabricators who already run automated storage towers, the gantry can integrate as the loading layer between tower and machine. For those starting with manual storage, the gantry delivers immediate labor reduction while leaving the door open for tower integration later. The system supports semi-automatic teaching mode for setup and fully automatic Ethernet integration for production. Power and air failure protection uses spring-applied mechanical brakes that lock the arm position instantly if pressure drops below 0.4 MPa. Safety features include soft-cushion bumpers, 360-degree LED beacons, and emergency stop controls. Herochu’s engineers commission the system on-site and train operators on both automatic and manual modes. The goal is a gantry that disappears into the production flow—handling steel and aluminum with equal reliability, cycle after cycle, without demanding attention.
