Motorized Sheet Metal Rack with Roll-Out Drawers

Sheet metal warehouses and fabrication shops that process mixed plate inventory daily share a common bottleneck: the time and labor consumed retrieving specific sheets from horizontal stacks. The Herochu motorized sheet metal rack with roll-out drawers eliminates this bottleneck by replacing manual stack disturbance with electric-assisted drawer extraction, turning what was a multi-person material handling operation into a single-operator task.

How Motorized Drawer Extraction Works

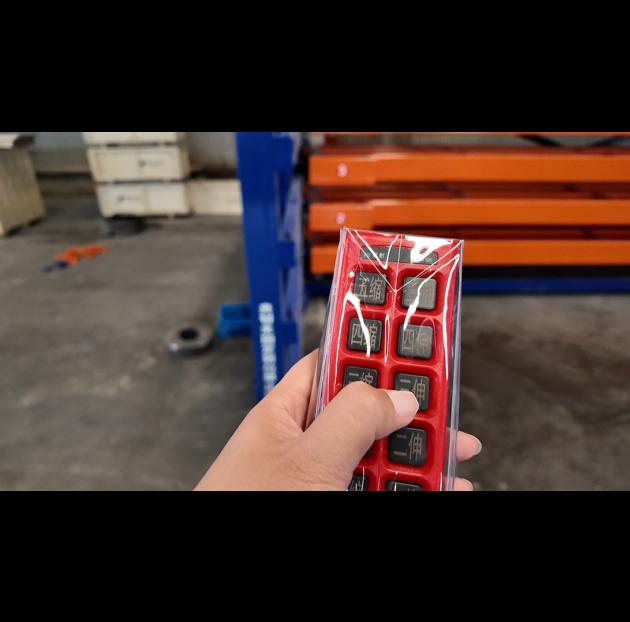

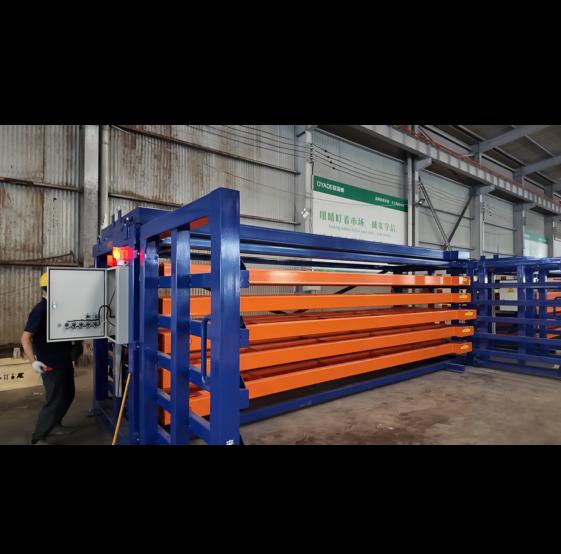

Each tier in the Herochu rack functions as an independent roll-out drawer mounted on industrial ball bearing slide rails. An electric drive unit — activated via remote control — extends the loaded pallet forward from the rack body at controlled speeds between 2.28 and 5.27 m/min depending on model configuration. The operator selects the target drawer, triggers extension, then retrieves the required sheet using an overhead crane, vacuum lifter, or forklift positioned at the rack face.

Unlike manual pull-out systems that require physical effort proportional to drawer load, the motorized drive handles pallets weighing up to 20,000 kg on the HC-B12025E-520 model without operator strain. This is significant for facilities storing thick steel plate where individual drawer loads regularly exceed what a human operator could manually move safely.

Q235B Steel Frame and Dual-Beam Construction

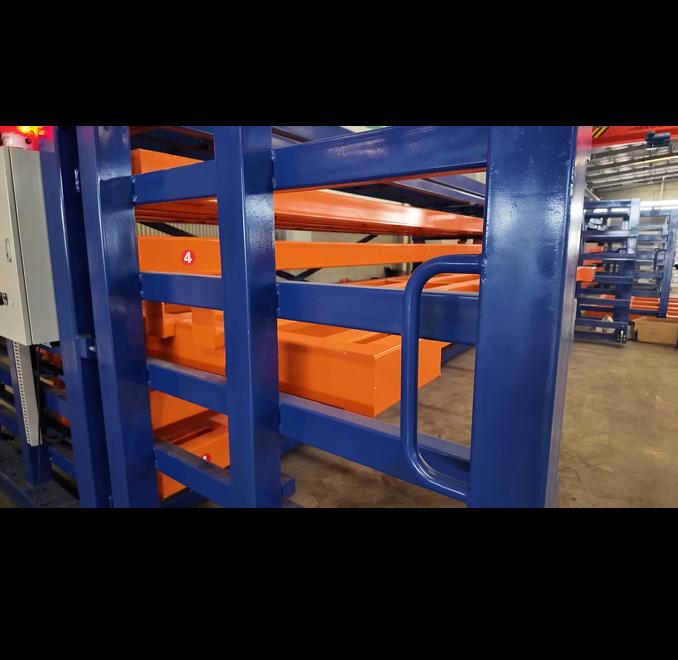

The structural backbone uses Q235B high-strength cold-rolled steel, a material standard in industrial racking chosen for its combination of yield strength, ductility, and welding performance. The dual-beam crossbar design pairs two horizontal beams per tier connection point, distributing the drawer load across both upright columns simultaneously. This configuration resists the asymmetric loading that occurs when one drawer is fully extended while adjacent tiers remain loaded — a force pattern that places concentrated stress on column-to-beam joints in single-beam designs.

Zinc coating on all structural surfaces provides corrosion resistance suited to the humid, chemically active atmosphere typical of metal fabrication environments. The coating also reduces surface friction on slide rail contact areas, contributing to consistent drawer travel over years of loading cycles.

Tier Configuration and Load Scaling

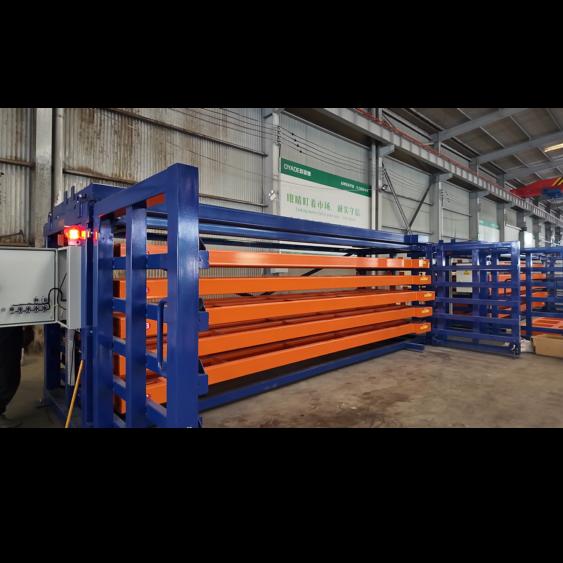

The Herochu motorized roll-out series covers five model configurations, each matched to specific sheet dimensions and load requirements:

Standard configurations provide 5 or 6 drawer layers, with clear space between tiers customizable at 120 mm or extended to accommodate plate heights up to 200 mm. All models use electric-assisted material discharge — no manual cranking or hydraulic pumping required.

Classification Storage and Retrieval Speed

Drawer separation allows material organization by physical properties rather than storage convenience. Steel plates of different grades, aluminum sheets, stainless stock, acrylic panels, and plywood can each occupy dedicated, labeled tiers. When a production order calls for a specific material specification, the operator extends only that drawer — no adjacent material is disturbed, no restacking is required, and the sheet needed is accessible from the moment the drawer locks in extended position.

Label slots on each drawer front provide immediate visual reference for material type, thickness, and grade. This system reduces sheet material retrieval time by up to 70 percent compared to flat horizontal storage where locating a mid-stack sheet requires unstacking everything above it.

Safety and Operational Standards

Safety lock mechanisms on each drawer prevent unintended sliding during loading and unloading — when a crane sets a sheet onto an extended pallet, the drawer remains locked in position rather than shifting under impact. The system meets CE and ISO quality standards for industrial storage equipment, and each unit undergoes pre-load testing at the factory before shipment.

For warehouse managers evaluating storage infrastructure upgrades, the Herochu motorized sheet metal rack with roll-out drawers offers a measurable improvement in both retrieval speed and floor space utilization. The motorized operation reduces labor requirements per retrieval cycle, while the vertical drawer density stores up to 60 percent more material in the same footprint as traditional cantilever or flat-stack configurations.
