Composite Truss Gantry Robotic Arm for Loading Unloading

A gantry manipulator is only as rigid as its frame allows it to be. When the tool head carries a 500 kg steel plate across a 6-meter span at 30 m/min, deflection and vibration become the limiting factors for positioning accuracy. Herochu addressed this by engineering a composite truss gantry robotic arm — a dual-girder cross-member that distributes bending loads across paired structural members rather than a single beam.

The composite truss design is what separates a heavy-duty loading manipulator from a light-duty pick-and-place Cartesian robot. The truss geometry — triangulated internal webbing between the two main girders — raises the section modulus without proportionally increasing self-weight. In practice, this means the cross-beam resists sag under payload, and the tool head arrives at the laser exchange platform within the ±2 mm repeatability band that the specification guarantees.

Load Path and Member Configuration

The Herochu composite truss manipulator for loading and unloading uses a double-sided gantry configuration. The cross-member spans between two rail-mounted end carriages, each driven by a synchronized chain drive transmission. The tool head rides on high-precision linear guide rails mounted to the truss underside. When the head picks a sheet, the load transfers through the guide rails into the truss web, then into the end carriages, and finally into the floor-mounted rail system.

This load path matters because it determines how the structure behaves under the 3-ton skip load rating. A skip load occurs when the manipulator encounters an unexpected overload — typically a double-sheet pick where two plates adhere. The composite truss absorbs this transient without permanent deflection, and the vacuum separation logic or abort sequence clears the fault. A single-beam gantry under the same condition would flex enough to shift the tool head out of the ±2 mm window, and repeated overloads would accumulate as rail misalignment.

Traverse Dynamics and Speed Engineering

The gantry traverse speed of 10–30 m/min is not an arbitrary ceiling. Herochu sets the upper bound at the point where acceleration forces on a 500 kg payload would exceed the grip force of the vacuum array. Beyond that threshold, the sheet would shift on the cups during deceleration, and positioning at the exchange platform would suffer. The 30 m/min figure represents the maximum safe traverse for the heaviest rated load; lighter plates permit full-speed cycling while heavier loads run at the lower end of the band.

Vertical lift speed runs 5–10 m/min — slower than traverse, because the lift direction fights gravity and the sheet’s own weight contributes to cup-seal stress during vertical acceleration. Fork adjustment speed at 5–20 m/min governs the side-to-side repositioning of the tool head when switching between sheet formats or when aligning to laser beds of different widths.

Double-Sided Operation and Cycle Overlap

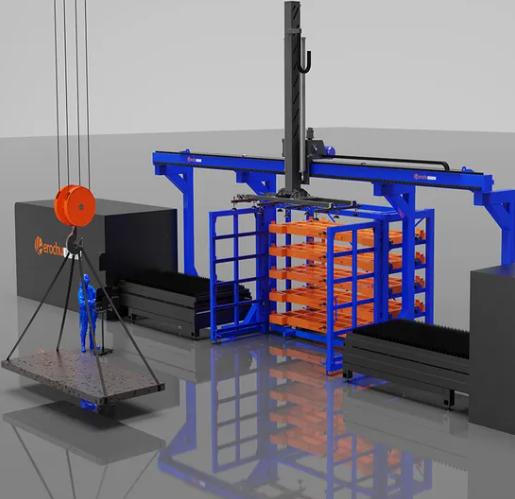

The double-sided gantry truss loading manipulator performs loading and unloading from opposing sides of the laser cutter. This architecture eliminates the dead time that single-sided systems spend retracting the tool head, switching from suction to gripper mode, and re-approaching the bed. On the Herochu system, one side of the truss carries vacuum cups for raw-sheet loading while the other carries grippers for finished-part removal.

Cycle overlap is where the composite truss pays off structurally. When the loading arm places a fresh sheet on the exchange platform, the unloading arm simultaneously grips the cut sheet from the previous cycle. Both operations load the truss at once — the combined moment from two cantilevered tool heads tests the frame in ways a single-head system never does. The composite geometry handles this dual load because the triangulated web transfers force from both heads into the shared end carriages rather than concentrating it at midspan.

Material Car and Exchange Platform Integration

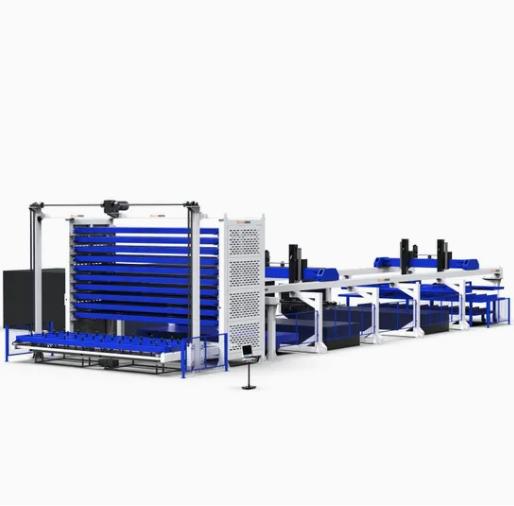

The double-layer electric exchange material car shuttles sheets between storage and the gantry’s working envelope. The car indexes vertically — raising or lowering to present the correct sheet layer to the tool head — and moves horizontally on floor rails. The CNC control system coordinates the car’s position with the gantry’s cycle, so the next raw sheet is staged at pick height before the current cutting program finishes.

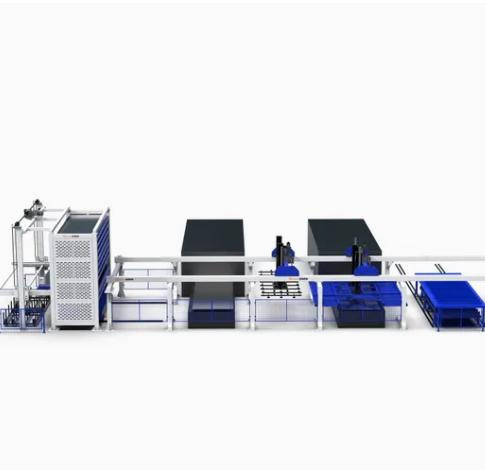

This coordination is what makes the cell an automated production unit rather than a standalone arm. The laser cutter, composite truss manipulator, exchange car, CNC, and vacuum control system form an interlocked sequence. Each component signals its status to the others, and the PLC logic orchestrates the cycle: car positions, gantry picks, vacuum verifies, gantry traverses, sheet releases, laser cuts, gantry unloads, car repositions. No manual intervention enters the loop.

Vacuum Suction and Separation Technology

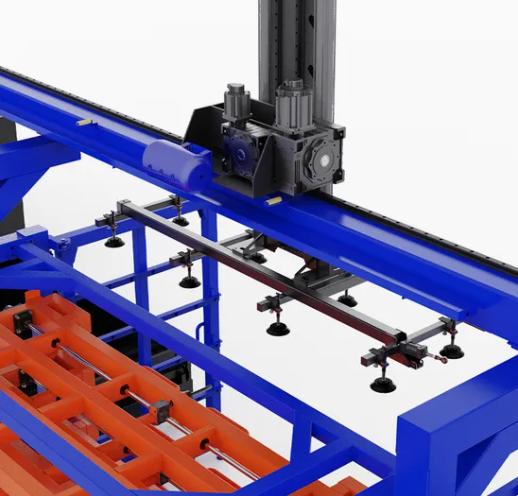

The vacuum suction array on the loading side uses a distributed cup pattern — multiple cups share a common manifold, and the CNC controls which cups activate based on sheet size. A small plate engages only the central cups; a large plate engages the full array. This selective activation conserves compressed air and prevents unused cups from drawing a false vacuum when they hang off the sheet edge.

Sheet separation is the persistent challenge in automated plate handling. Oily or recently sheared plates stick together, and a vacuum loader without separation logic picks two at once — overloading the truss and miscounting inventory. Herochu integrates an automated separation mechanism that breaks the surface tension bond before the full vacuum lift executes. Sensors confirm single-sheet pickup, and the cycle proceeds only on that confirmation.

Model Range and Specification Map

The Herochu composite truss lineup covers five standard configurations:

Traverse speed (10–30 m/min), lift speed (5–10 m/min), fork speed (5–20 m/min), repeatability (±2 mm), and air supply (0.6–0.7 MPa) are uniform across the range. The skip load rating of 3 tons applies to all models. This spec consistency means a shop can add a second cell with a different sheet format without retraining operators or re-specifying facility utilities.

Commercial Justification

The structural investment in a composite truss translates to measurable plant-floor outcomes. The dual-sided cycle overlap and continuous cutting operation deliver a 30–50% increase in overall factory throughput. Material handling costs drop by up to 30% because the manipulator replaces manual loading labor and reduces the sheet damage and mispositioning errors that human operators introduce under fatigue. Operational errors fall by approximately 50%.

Herochu targets a 12–18 month ROI payback for the composite truss system. The frame’s structural redundancy — the dual-girder, triangulated web — also extends service life. A composite truss that handles dual-side loading cycles day after day accumulates less fatigue damage per cycle than a single-beam frame carrying the same loads, which pushes the maintenance interval out and keeps total cost of ownership predictable across a 10-year horizon.

Application Environments

The composite truss manipulator fits fabrication environments where the laser cutting cell is the production pacemaker: metal fabrication shops, automotive stamping-feed lines, aerospace parts manufacturing, heavy machinery component cutting, and structural steel processing. Any operation where sheet format varies across the 2500×1300 to 6000×1500 range and payload runs 300–500 kg falls within the Herochu system’s working envelope. The composite truss architecture is the structural reason the system holds ±2 mm under those conditions cycle after cycle.
