ASRS Automated Storage Rack for Steel Profiles – Herochu Vertical Tower

Steel service centers that stock long-length profiles face a persistent spatial problem: conventional cantilever racks spread horizontally across the warehouse floor, consuming valuable square footage while still leaving handling throughput bottlenecked by manual forklift cycles. The Herochu ASRS Automated Storage Rack for Steel Profiles was engineered specifically to resolve this tension. By stacking storage vertically in a tower configuration and moving each shelf independently through a gantry system, the Herochu rack multiplies usable storage capacity within the same building footprint and eliminates the aisle crowding that slows down profile retrieval.

How the Vertical Tower Rack Is Structured

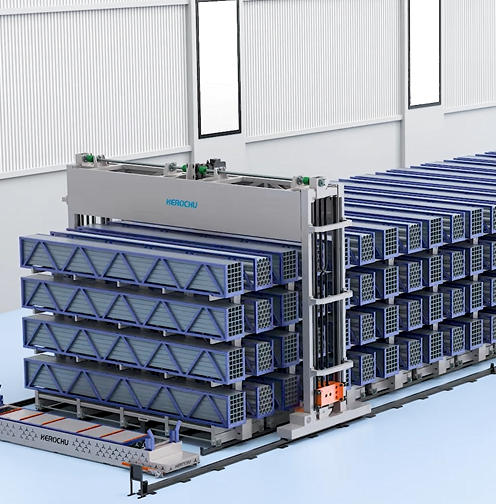

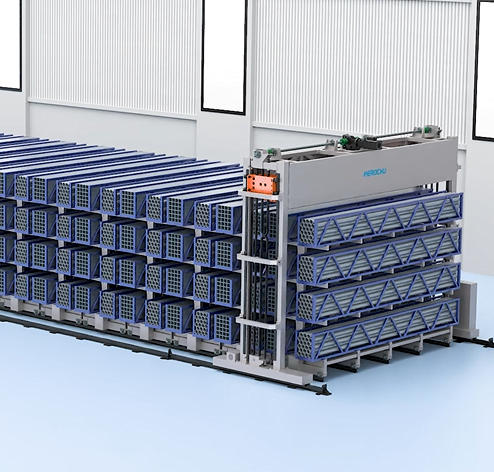

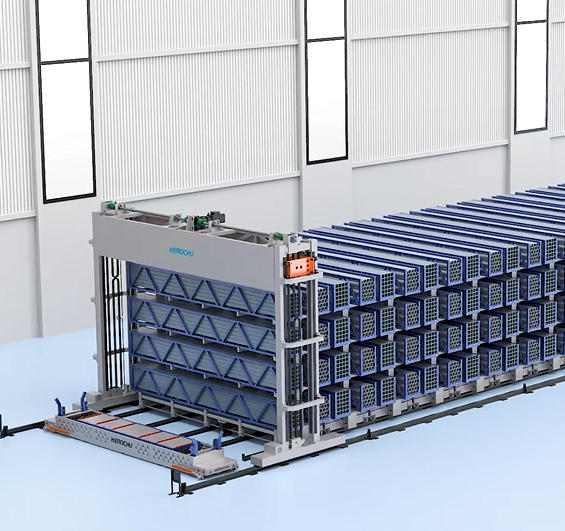

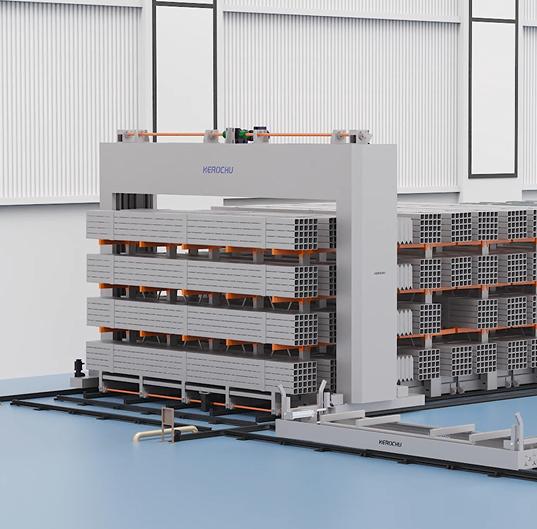

Each Herochu profile storage tower is built around floor-mounted guide rails that carry a shared picking aisle. Rather than dedicating a separate aisle to every shelf row— the old cantilever layout— the Herochu gantry travels along a single rail path and services every storage level from one consolidated corridor. The shelves themselves move independently, which means the gantry can address one specific layer without disturbing the material resting on adjacent layers. This independent-shelf motion is what allows the system to reach genuine high-density vertical storage: every cubic meter of tower height becomes active storage instead of dead air above low-stacked bundles.

The structural frame uses high-strength Q235B steel welded into a rigid tower skeleton, designed to resist deflection under repeated dynamic loading from the gantry’s pick-and-place cycles. Anti-vibration gussets at the column-to-beam junctions keep position deviation minimal even when the system runs at its maximum 30 m/min traveling speed. Herochu engineers each tower to match the on-site material mix: the number of layers, the pipe or profile length, and the per-level load rating are all tailored during the design phase rather than forced into a fixed catalog configuration.

Model Line and Technical Parameters

The Herochu ASRS Automated Storage Rack for Steel Profiles ships in three baseline configurations, all field-adjustable:

The HC-X6053-8 suits lighter profile yards and smaller diameter bar stock up to six meters. The HC-X7065-10 and HC-X8085-10 extend both length and load capacity, accommodating heavier structural profiles— angle iron, channel section, I-beam blanks— up to eight meters with a 5000 kg per-level rating. All three deliver ±2 mm positioning repeatability, which is sufficient for automated downstream feeding into saw lines, drilling stations, or laser cutting cells.

Space Efficiency and Flexible Expansion

Floor space is the single most expensive line item in most steel distribution warehouses, and the Herochu tower rack directly attacks that cost. Because the picking aisle is shared across all vertical levels, the aisle-to-storage ratio drops dramatically compared with static cantilever layouts. A warehouse that previously held forty cantilever bays can often absorb the same tonnage in a single Herochu tower row occupying a fraction of the original floor area.

Expansion is handled at the structural level. The shelf layout is tailored to on-site material requirements, meaning a facility storing mixed-length profiles— some six-meter, some eight-meter— can configure adjacent towers with different layer counts and bin widths rather than forcing everything into one uniform rack size. When inventory profiles shift, Herochu can add layers or re-bin existing levels without dismantling the gantry rail infrastructure.

Size Compatibility for Mixed Material

Steel profile yards rarely handle a single product type. A typical bay holds long structural sections alongside shorter offcuts, loose bundles, and mixed cross-sections. The Herochu storage bins are dimensioned to accommodate long, short, and loose materials simultaneously within the same tower. Shorter profiles sit in partitioned bin sections that prevent cross-movement during gantry transport, while longer sections span the full bin width with dedicated cradle supports. This mixed-length compatibility is one of the reasons the Herochu ASRS rack adapts well to service centers that process both prime stock and remnant inventory.

PLC Control and Digital Inventory

Every Herochu profile tower is governed by a PLC touchscreen interface that handles gantry movement commands, layer addressing, and interlock safety logic. The control system ties into a digital inventory management module that displays real-time stock levels, bin occupancy, and material traceability data. Operators no longer need to walk the aisle with a clipboard— the system reports exactly which bin holds which profile, at what length, and in what quantity, updating live as the gantry completes each storage or retrieval cycle.

For facilities running lean staffing across multiple shifts, this real-time visibility means inventory accuracy stays high without dedicating a person to manual cycle counts. The Herochu ASRS Automated Storage Rack for Steel Profiles thus delivers two compounding gains: denser storage per square meter, and inventory data integrity that manual rack yards cannot match.
