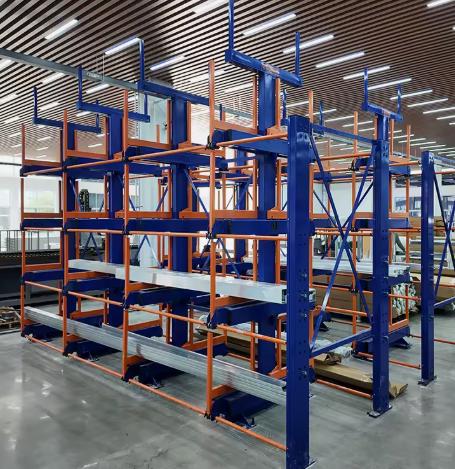

Aluminum Profiles Storage Racks with Heavy Duty Pipes

Aluminum profile storage demands a level of precision rarely required in general-purpose warehousing. Extrusions arrive from manufacturers with cosmetic surfaces that must remain scratch-free, dimensional tolerances measured in hundredths of millimeters that cannot tolerate bending, and varying lengths from short cut pieces to full 6-meter mill lengths. Standard storage methods—floor stacking, pipe racks, or modified pallet racks—frequently damage profiles through surface abrasion, permanent deflection, or mixed-grade mixing. Herochu engineered the Aluminum Profiles Storage Racks with Heavy Duty Pipes specifically for this demanding application, combining heavy-duty structural capacity with profile-friendly contact surfaces and adjustable configuration.

The integration of heavy-duty pipes within the aluminum storage rack design represents a significant engineering advance. Where conventional aluminum racks use formed sheet metal or light-gauge tubing for support surfaces, Herochu employs heavy-duty steel pipes as the primary load-bearing elements. These pipes, typically 60 to 100 millimeters in diameter with wall thickness exceeding 3 millimeters, provide rigid support across the full profile length without flexing under load. The round pipe geometry naturally supports extruded shapes along their flat or contoured surfaces, distributing contact pressure to prevent point loading that could deform thin-wall profiles.

Surface protection for aluminum profiles begins with the pipe coating system. Standard powder coating provides a hard, smooth surface that resists abrasive contact during loading and retrieval. For facilities storing anodized or polished aluminum, Herochu offers optional nylon sleeves that slide over the heavy-duty pipes. These sleeves provide a low-friction, non-marring surface that allows profiles to slide easily during loading without scratching. The sleeve material formulation resists aluminum oxide accumulation, maintaining surface cleanliness that prevents transfer marks onto stored profiles. When sleeves eventually wear from repeated loading cycles, replacement takes minutes without removing pipes from the rack structure.

Adjustable arm heights accommodate the dimensional variety inherent in aluminum profile storage. Extrusion heights range from thin 10-millimeter trim profiles to large 300-millimeter structural shapes. The adjustable heavy-duty arm system allows operators to position pipe supports at vertical intervals matching current inventory profiles. When a facility adds new extrusion dies or changes product mix, warehouse teams reconfigure arm heights without special tools or extended downtime. This adjustability prevents the inefficiency of fixed-spacing racks where profile height mismatches waste vertical space or force operators to store profiles in incorrect positions.

Storage length customization addresses the long-length nature of aluminum extrusions. Herochu’s aluminum profile storage racks accommodate lengths from 3000 millimeters to 12000 millimeters or more, with multi-bay configurations providing continuous support across extended runs. For 6-meter mill lengths—the most common extrusion size—rack bays spaced at 2.5 to 3 meter intervals ensure uniform support that prevents mid-span deflection. Where facilities store both full-length extrusions and shorter cut pieces, the same rack system accommodates both through selective use of bay positions, with shorter profiles stored in end bays while full lengths occupy central bays.

Load capacity per tier reaches up to 6 tons, customized based on extrusion wall thickness and bundle density. While individual aluminum profiles weigh little compared to steel equivalents, palletized or bundle quantities accumulate significant weight. A full pallet of 6-meter aluminum extrusions in 100-by-50-millimeter cross-section may exceed 2 tons total weight. Herochu’s heavy-duty pipe design supports these loads without pipe deflection that could transfer bending forces into stored profiles. Each heavy-duty pipe rests in structural saddles welded to cantilever arms, with pipe-to-saddle connections allowing thermal expansion movement while maintaining vertical alignment.

The skeletal structural design maximizes visibility within the aluminum storage area. Unlike solid shelving or enclosed rack configurations, Herochu’s open cantilever design provides unobstructed views of stored profiles from aisle positions. Operators quickly identify specific alloy grades, temper designations, or surface finishes without moving adjacent profiles or climbing equipment. This visibility reduces search time and prevents picking errors where similar-looking profiles from different production runs become intermixed. For quality-controlled environments tracking lot numbers or heat codes, clear visibility of stored material labels supports accurate inventory management.

Corrosion protection requirements for aluminum storage differ from general-purpose applications. While aluminum itself resists corrosion, the steel rack components remain vulnerable to moisture and chemical exposure common in extrusion facilities. Powder coating on all steel surfaces provides durable protection against humidity, coolant residues, and cleaning chemicals. The coating thickness—typically 60 to 80 microns—exceeds standard industrial finishing specifications, providing long-term protection even in unheated warehouses where condensation forms on steel surfaces. For coastal facilities or locations with aggressive atmospheric corrosion, hot-dip galvanizing adds sacrificial zinc protection that extends rack service life by decades.

Integration with existing material handling equipment improves operational efficiency. Herochu designs aluminum profile storage racks for compatibility with overhead cranes, vacuum lifters, and specialized extrusion handling equipment. The cantilever arm configuration provides clear access from above, allowing crane operators to lower profile bundles directly onto heavy-duty pipe supports without sideways maneuvering. For facilities using sideloader forklifts or articulated trucks, the rack design includes forklift pocket positions that facilitate aisle alignment and load placement guidance. These integration features reduce handling time and minimize the potential for profile damage during storage operations.

Multilayer storage configurations maximize vertical space utilization in aluminum warehouses. Standard two-tier or three-tier designs store profiles at multiple heights, with each tier accessible from the same aisle. The heavy-duty pipe support system maintains consistent load capacity across all tiers, allowing facilities to store full pallet quantities at every level. For high-bay warehouses with clear heights exceeding 8 meters, Herochu offers custom multi-tier configurations with intermediate access platforms or mezzanine levels that provide ergonomic access to upper storage positions. Space utilization improvements of 200 percent or more compared to floor stacking are routinely achievable.

Installation support from Herochu includes on-site guidance and online orientation specifically tailored for aluminum profile storage applications. The modular design allows staged implementation where facilities convert floor storage areas to rack storage gradually, maintaining operational continuity throughout the installation process. Each rack system includes ISO9001 documentation and CE certification, supporting quality management systems and regulatory compliance. For aluminum extruders, service centers, and fabrication shops, Herochu’s aluminum profile storage racks with heavy-duty pipes deliver the precision, capacity, and protection that high-value extrusions demand.
