Heavy Duty Pipe Storage Rack – Cantilever Design for Maximum Load Capacity

Among all material handling equipment categories, few are as specialized as the heavy duty pipe storage rack. Pipes are long, heavy, round, and prone to rolling. They cannot be stacked more than a few layers high without risking crushing or instability. They require access from the side or end, not just the front. Herochu has dedicated over a decade of engineering to perfecting the heavy duty pipe storage rack, resulting in a cantilever-based product line that sets the standard for large load capacity warehouse storage of tubular goods.

A heavy duty pipe storage rack must excel in three areas: load capacity, accessibility, and configurability. Herochu’s cantilever racks deliver on all three. Each arm is rated for up to 5 tons in standard configurations, with custom versions reaching 8 tons per arm. The absence of front uprights means pipes can be loaded from the aisle using any overhead crane or side-loading forklift. And with arm height adjustments possible in 400mm to 600mm increments, the same rack can store 50mm diameter tubes today and 300mm diameter pipes tomorrow.

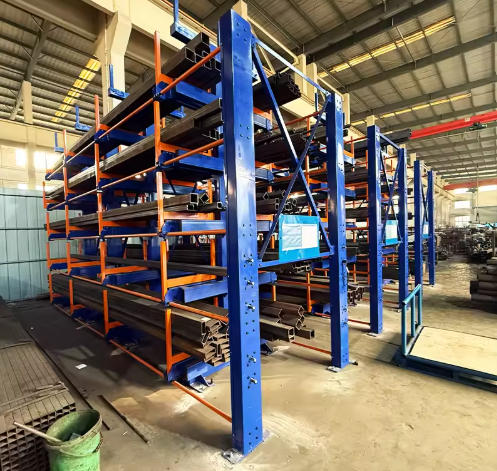

Herochu manufactures several families of heavy duty pipe storage racks. The G6053 series (6-meter pipe length, 3-ton load) includes both single-sided (G6053S) and double-sided (G6053D) versions. The G9055 series (9-meter, 5-ton) similarly offers S and D configurations. The G1255 series (12-meter, 5-ton) represents the longest standard offering. External dimensions vary: the G6053S measures 3505×2280×2000mm (L×H×W), while the G9055D expands to 6505×2280×2500mm. The number of layers is customizable based on factory building height – typical installations range from 3 to 5 levels.

The manufacturing excellence behind each heavy duty pipe storage rack begins with raw material selection. Herochu sources only prime hot-rolled steel coils from mills with ISO 9001 certification. These coils are uncoiled, leveled, and fed into fully automated CNC punching lines that create the hole patterns for arm attachment. The precision of these holes – ±0.5mm positional tolerance – ensures that every arm locks in solidly without wobble. After punching, high-precision cold bending units form the columns into a reinforced C-section that resists both front-to-back and side-to-side bending.

Robotic welding lines assemble the column bases, arm components, and cross braces. Unlike manual welding, robotic welding produces consistent penetration depth and heat input, eliminating weak spots. Each welded joint on a heavy duty pipe storage rack is visually inspected and randomly selected for ultrasonic testing. The weld size is verified against engineering drawings, which specify fillet welds with 6mm leg lengths on all load-bearing connections. For double-sided racks, the columns are welded to a common base plate, creating a stable A-frame or T-frame geometry.

Surface treatment for a heavy duty pipe storage rack is critical because warehouses are often damp, dusty, or chemically active. Herochu’s automated electrostatic spraying line applies a powder coating that is both tough and corrosion-resistant. The process includes degreasing in an alkaline bath, rinsing in demineralized water, and a zinc phosphate conversion coating that improves paint adhesion. The powder is applied electrostatically and cured at 200°C, resulting in a 60-100 micron thick film. Salt spray testing per ASTM B117 exceeds 500 hours without red rust.

Quality assurance for the heavy duty pipe storage rack follows Herochu’s end-to-end protocol. Incoming raw materials are checked for thickness, flatness, and chemical composition. In-process inspections at CNC punching, cold bending, and welding stages catch defects early. Final assembly includes a dimensional audit of every rack before packaging. Most importantly, critical load-bearing metrics are tested in-house using a hydraulic press with calibrated load cells. Each model type is proof-tested to 125% of its rated capacity, with deflection measured at multiple points. Only racks that meet or exceed deflection limits (typically L/180 for arms) are shipped.

The technical comparison between cantilever, vertical, and mobile pipe racks reinforces why Herochu focuses on the cantilever design for heavy duty applications. Cantilever racks accommodate the longest pipes (12m vs 6m for vertical and 4m for mobile). They handle the heaviest loads (5T per arm vs 2T per bay for vertical and 1.5T per unit for mobile). While vertical racks offer the best space saving (60% vs 40% for cantilever), they are limited to smaller-diameter, shorter pipes and are best suited for plumbing suppliers. Cantilever racks are the clear choice for steel mills and large fabrication shops. Mobile racks, with their locking casters and collapsible designs, serve construction sites where flexibility matters more than maximum capacity.

Application examples of Herochu’s heavy duty pipe storage rack include an oilfield equipment supplier that stores 9-meter drill pipes. Each pipe weighs approximately 300kg, and a typical bundle of ten pipes places 3 tons on a single arm. The G9055D double-sided rack handles this easily, with the 5-ton per arm rating providing a comfortable safety margin. Another example is a water pipe distributor that stores 6-meter ductile iron pipes with flanged ends. The flanges prevent pipes from lying flush against the arm, so Herochu supplied custom arm pads that accommodate the flange profile while maintaining full load transfer.

Customization is a hallmark of Herochu’s heavy duty pipe storage rack offerings. Beyond the standard 500mm arm length, arms can be made from 300mm to 1000mm. Interlayer spacing, normally 500mm, can be set to any dimension required – for example, 800mm for pipes with large diameter fittings. Special raw materials such as galvanized steel (for outdoor storage) or stainless steel (for food-grade or pharmaceutical pipes) are available. Special processing techniques like shot blasting before coating can be added for extra adhesion. Even the color can be customized – standard orange and blue, or any RAL number specified by the customer.

In conclusion, the Herochu heavy duty pipe storage rack represents the optimal balance of load capacity, accessibility, and durability for industrial tubular storage. With standard models handling 6m to 12m pipe lengths and 1 to 8 tons per layer, and with full customization available for arm length, spacing, materials, and finish, these cantilever racks solve the real-world challenges of pipe warehousing. Herochu’s ISO9001-certified manufacturing, robotic welding, automated coating line, and rigorous in-house load testing ensure that every rack performs safely for decades. For warehouse managers seeking a large load capacity warehouse storage solution specifically designed for pipes, the Herochu cantilever heavy duty pipe storage rack is the definitive answer.
