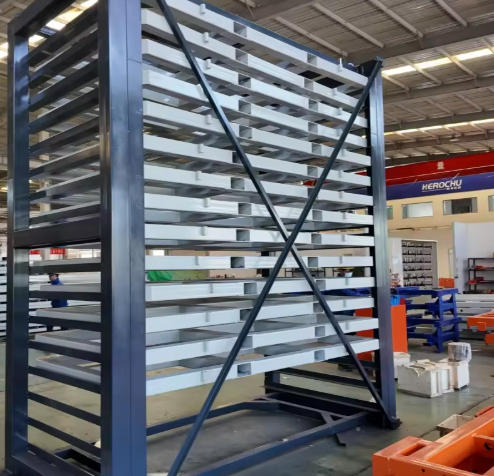

Forklift-Accessible Sheet Storage Rack – Herochu Vertical System for 2–6 Ton Loads

Herochu Forklift-Accessible Sheet Storage Rack: Eliminate Manual Handling and Maximize Aisle Density

The term “forklift-accessible” is often misapplied to storage equipment. Many racks claim compatibility but still require manual pallet jack insertion, crane transfer, or operator dismount. The Herochu Forklift-Accessible Sheet Storage Rack redefines the category. Every layer is designed as a pull-out drawer with integrated fork pockets, enabling a forklift driver to retrieve any stored sheet without leaving the seat. Constructed from carbon steel with a powder-coated finish, Herochu racks support single-layer loads from 2 to 6 tons and can be configured for plates up to 4,000 mm long. This article explores the operational economics, safety advantages, and technical adaptability of the Herochu system for warehouses, stamping plants, and laser cutting job shops.

True Forklift Accessibility: How the System Works

A conventional pallet rack stores sheet goods on fixed shelves. To retrieve a sheet, a forklift must lift it from above or slide forks underneath – difficult when sheets are long and flexible. A cantilever rack allows side loading but often requires a second person to guide the sheet. The Herochu design solves these problems with a sliding-layer mechanism. Each storage level consists of two parallel beams with a series of crossbars. The beams slide on precision-ground linear guides. At the front of each beam are formed steel pockets shaped to accept standard 100 mm forklift forks. When a driver inserts forks into the pockets and gently pulls backward, the entire layer extends forward approximately 800 mm. This extension reveals the full width of the sheet’s edge, allowing the driver to reposition forks under the sheet itself. The driver then lifts the sheet, and the empty drawer automatically slides back into the rack (or can be guided back manually). The entire sequence takes less than 60 seconds for an experienced operator.

Load Capacity Engineering: From 2 Tons to 6 Tons per Layer

Herochu offers three standard load classes, with custom capacities available:

• 2 tons per layer – Model HC-F2513-122 (2,500 × 1,300 mm) and HC-F3015-122 (3,000 × 1,500 mm)

• 3 tons per layer – Model HC-F4015-73 (4,000 × 1,500 mm)

• Up to 6 tons per layer – Custom engineering for heavy plate storage

Load capacity is determined by the thickness and grade of the carbon steel used in the sliding beams and crossbars. For 2-ton racks, Herochu uses 3 mm formed channel steel. For 6-ton custom racks, the beam thickness increases to 6 mm and the linear guides are upgraded to heavy-duty roller bearings. All racks undergo a factory load test at 110% of rated capacity, with deflection recorded and certified. The vertical uprights are welded box sections, 100×100 mm for standard racks and 120×120 mm for heavy-duty versions. Floor anchor bolts (included) are M16 grade 8.8, spaced every 600 mm along the base.

Space Efficiency Metrics: Achieving 70% Floor Space Reduction

One of the most compelling reasons to install a Herochu Forklift-Accessible Sheet Storage Rack is the dramatic reduction in floor space requirements. A typical floor-stacked sheet inventory of 40 plates (2,500×1,250 mm each) occupies approximately 125 m² when allowing for forklift maneuvering aisles and stack separation. The same 40 plates stored vertically in a Herochu rack with 10 layers and a footprint of 3.0 m × 1.8 m (5.4 m²) plus a single access aisle of 4.0 m reduces total occupied space to less than 40 m². This represents a 68% space saving. For high-volume operations with hundreds of sheets, multiple Herochu racks can be arranged back-to-back with a shared center aisle, achieving up to 75% density improvement over floor stacking and 50% over standard pallet racking.

Reduction in Machine Downtime: Adjacent Placement to Processing Equipment

Sheet processing machines – laser cutters, plasma tables, shears, punch presses – generate revenue only when cutting. Material handling downtime is a direct cost. The Herochu Forklift-Accessible Sheet Storage Rack is designed to sit immediately adjacent to such equipment. For example, placing two Herochu racks on either side of a fiber laser cutter’s load table creates a “material wing.” The forklift operator pulls a sheet from the left rack, loads the laser table, then returns to retrieve the next sheet from the right rack while the machine cuts. There is no waiting for crane hooks or manual sheet flipping. Companies using this configuration report machine utilization rates exceeding 85%, compared to industry averages near 65%. The reduction in idle time can justify the rack’s cost in less than six months.

Customization Parameters: Layer Position, Load, and Protection

No two fabrication shops store identical materials. Herochu therefore offers extensive customization for every Forklift-Accessible Sheet Storage Rack:

• Adjustable layer heights: Spacing can vary from 50 mm for thin sheets up to 200 mm for thick plates. Layers can be arranged asymmetrically – e.g., 80 mm gap for 2 mm sheets on the top layers, 180 mm gap for 20 mm plates on bottom layers.

• Removable dividers: For mixed sheet sizes within the same layer, Herochu suppliers optional longitudinal dividers with rubber edge trim.

• Backstop height: Standard backstops are 150 mm tall. For very thin sheets that could curl backward, a 300 mm full-height backstop is available.

• Corner bumpers: For high-traffic areas, add urethane bumpers to upright corners to protect both rack and forklift.

• Label holders: Integrated document slots for location labeling, material certificates, or barcode tracking.

All custom features are designed in Herochu’s CAD system and simulated for structural interference before production.

Safety Features Beyond Basic Construction

The Herochu Forklift-Accessible Sheet Storage Rack incorporates several safety innovations rarely found in competitive products:

1. Drawer interlock: When one layer is extended beyond 500 mm, a mechanical interlock prevents any other layer from being pulled simultaneously. This prevents destabilizing the rack.

2. Anti-drop tabs: At the rear of each sliding drawer, upturned tabs stop the drawer from being pulled completely out of the rack, even if the driver pulls aggressively.

3. Floor-mounting brackets: Pre-drilled holes at all four corners accept expansion anchor bolts. A properly anchored Herochu rack remains stable even with a 3-ton layer fully extended.

4. Edge beveling: All exposed corners are rounded or chamfered to prevent sheet snagging and reduce operator injury risk during maintenance.

5. High-visibility striping: Optional reflective striping on front uprights improves forklift operator depth perception in dim warehouses.

Global Quality Standards: ISO9001, CE, and Factory Load Testing

Herochu’s manufacturing facility operates under ISO9001:2015 certification, with documented quality procedures for welding, cutting, powder coating, and assembly. Each Forklift-Accessible Sheet Storage Rack carries CE marking, attesting to conformity with European machinery directive 2006/42/EC. Before any rack is permitted to ship, the quality inspection department performs a 110% load test on a randomly selected layer. The test load remains applied for 10 minutes while deflection is measured. If deflection exceeds L/300, the entire batch is rejected and re-engineered. Herochu provides a digital load test report with every shipment. For clients requiring third-party inspection (e.g., SGS, Bureau Veritas), Herochu coordinates on-site inspections prior to packaging.

Installation and Post-Sale Support

Herochu offers two service levels. The first is a comprehensive installation manual and video series, allowing in-house maintenance teams to assemble and anchor the rack. The second is a full turnkey installation where Herochu dispatches a field engineer. The engineer not only assembles the rack but also trains forklift operators on proper engagement technique and performs a final stability verification. Herochu’s field service team has references in South Africa, the United States, Russia, South Korea, Qatar, Egypt, Lebanon, and Mexico. For clients integrating the sheet rack with a robotic loading arm or an automated material warehouse, Herochu provides full system integration, including PLC programming and safety light curtain installation.

Direct Procurement Path

To procure a Herochu Forklift-Accessible Sheet Storage Rack, contact the technical support team with the following information: sheet dimensions (length × width), maximum sheet weight, number of different sheet types, and available ceiling height. Herochu returns a detailed quotation, 3D layout drawing, and lead time within 3 business days. For urgent inquiries, use the WhatsApp or WeChat channels provided on the Herochu official website. The minimum order quantity is one set, allowing even small job shops to access industrial-grade sheet storage.

Final assessment: The Herochu Forklift-Accessible Sheet Storage Rack delivers a rapid payback through labor reduction, space recovery, safety improvement, and machine uptime gains. It is not merely a storage unit but a productivity tool for any business that handles sheet materials daily.
