Sheet Metal Vacuum Lifter Solutions for Safe and Efficient Material Transport

The sheet lifters market entered 2026 with steady, non-cyclical demand underpinned by fundamental industrial activity across metal fabrication, automotive, aerospace, and construction sectors. The market is projected to expand at a CAGR of approximately 3.8% through 2035, driven by sustained investment in manufacturing automation. At the heart of this growth lies the sheet metal vacuum lifter—a technology that has transformed how heavy plates are lifted, positioned, and transported in industrial environments.

Herochu has developed a comprehensive range of sheet metal vacuum lifters that leverage advanced vacuum suction technology to securely grip carbon steel, stainless steel, and non-ferrous metals without causing scratches, gouges, or structural deformation. This article explores the technology, safety features, and operational benefits of modern vacuum lifting systems.

How Sheet Metal Vacuum Lifters Work

A sheet metal vacuum lifter operates on a fundamental principle: creating a vacuum seal between suction cups and the material surface to generate lifting force. Herochu’s systems utilize specialized vacuum suction cups designed to accommodate various material textures and finishes. The vacuum system creates a uniform hold across the sheet, preventing the “bowing” or deformation that can occur with mechanical clamps.

Unlike traditional lifting methods that rely on mechanical clamping or magnetic attraction, vacuum lifting offers distinct advantages for surface-sensitive materials. The soft vacuum cups never contact the sheet’s face in a way that slides, eliminating scratch risks. This is particularly critical for industries working with pre-finished metals, stainless steel for appliances, or aesthetic architectural panels.

Herochu’s sheet metal vacuum lifters are available in multiple configurations, from manual-guided systems to fully automated solutions integrated with three-axis Cartesian robots. The pneumatic cantilever loading manipulator represents a popular configuration, offering effortless human-guided control that allows heavy loads to be positioned with minimal manual effort and pinpoint accuracy.

Safety Systems and Fail-Safe Design

Safety is paramount in sheet metal vacuum lifter design, and Herochu incorporates multiple layers of protection:

Emergency Air-Cut Protection: In the event of power supply interruptions or sudden pressure drops, the system maintains vacuum pressure to keep heavy plates securely gripped. This fail-safe design prevents dropped loads that could cause injury or material damage.

Automatic Braking System: When the lifter is not in active use, an automatic braking system prevents unintended movement, ensuring stability during loading and unloading operations.

Vacuum Loss Prevention: Internal sensors continuously monitor vacuum pressure levels. If pressure drops below safe thresholds, the system triggers audible warnings and initiates safety protocols.

Anti-Collision Sensors: Integrated sensors detect obstacles in the lifting path, automatically stopping movement to prevent collisions with equipment or personnel.

These safety features address the primary concerns of plant engineers and safety officers, making Herochu’s sheet metal vacuum lifters a reliable choice for facilities prioritizing workplace safety.

Versatility and Material Compatibility

Herochu’s sheet metal vacuum lifters support an exceptionally wide range of materials:

Carbon Steel: The workhorse of metal fabrication, handled efficiently with standard suction cup configurations.

Stainless Steel: The surface-protection capabilities of vacuum lifting are particularly valuable for stainless steel, where scratches compromise corrosion resistance and aesthetic quality.

Aluminum and Copper: Non-ferrous metals that cannot be lifted with magnetic equipment are handled with equal ease.

Coated and Painted Metals: The non-marring vacuum grip preserves surface finishes, eliminating the need for costly rework.

Wood and Plastic: Beyond metal, Herochu’s systems handle wood panels and plastic sheets, expanding their utility across furniture manufacturing and construction industries.

The equipment accommodates sheet dimensions up to 3000mm x 1500mm with load capacities ranging from 300kg to 1000kg, providing flexibility for diverse operational requirements.

Integration with Production Workflows

A sheet metal vacuum lifter is most effective when integrated into a seamless production workflow. Herochu designs systems that connect automated storage systems with CNC machinery for fluid, end-to-end material flow.

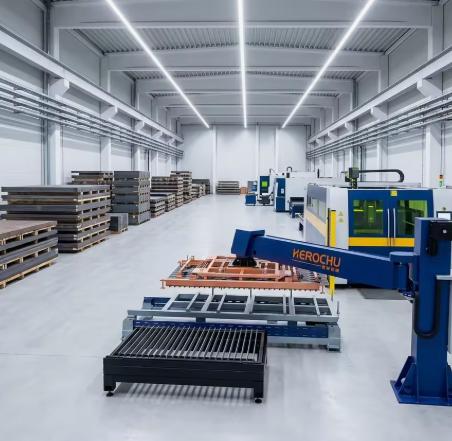

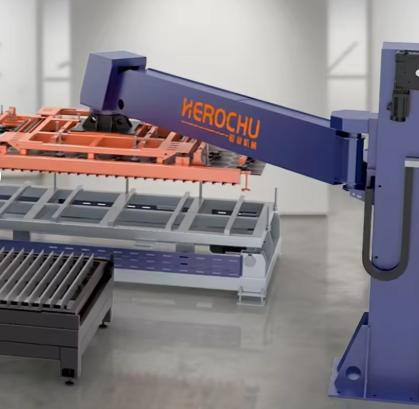

The pneumatic cantilever loading manipulator serves as an automated bridge between storage racks and processing equipment. Available in three control configurations—pneumatic-only, full electrical, or hybrid electro-pneumatic—these systems match diverse production requirements. The compact cantilever design provides faster lifting within low-ceiling environments compared to bulky rigid-arm lifters, making them suitable for facilities with space constraints.

For high-throughput operations, Herochu integrates vacuum lifters with gantry systems that traverse at horizontal speeds up to 50 m/min. This combination enables continuous material flow that maximizes machine utilization and supports lights-out manufacturing.

Conclusion

The sheet metal vacuum lifter has become an indispensable tool for modern metal fabrication, offering a combination of safety, precision, and versatility that mechanical alternatives cannot match. Herochu has positioned itself at the forefront of this technology, delivering systems that protect valuable material stock, enhance shop-floor safety, and maximize machine uptime. As manufacturing continues its trajectory toward greater automation, vacuum lifting technology will play an increasingly central role in efficient material handling.
