Fully Automated Vertical Wooden Boards Storage System for Woodworking Factory Automation

Woodworking factories face unique material storage challenges that differ significantly from metal fabrication facilities. Wooden boards are lighter than steel but more susceptible to warping, moisture damage, and surface marring. They come in a wide variety of sizes, species, and grades. Traditional storage methods—stacking boards on racks, leaning them against walls, or storing them in piles—create inefficiencies that slow production and compromise material quality. The fully automated vertical wooden boards storage system from Herochu provides a purpose-built solution for the woodworking industry, delivering high-density storage, material protection, and automated material flow.

The Woodworking Storage Challenge

Woodworking factories typically handle large volumes of panel materials including MDF, chipboard, plywood, and laminated boards. These materials are bulky, prone to damage, and require careful handling to preserve surface quality. Traditional storage consumes vast floor space, requires wide aisles for forklift access, and makes it difficult to locate specific boards when needed.

Manual handling of large wooden panels poses ergonomic risks to workers. Finding specific boards in a disorganized warehouse wastes valuable production time. Improper storage can lead to warping, moisture damage, and surface scratches that render boards unusable for finished products.

System Architecture for Wooden Board Storage

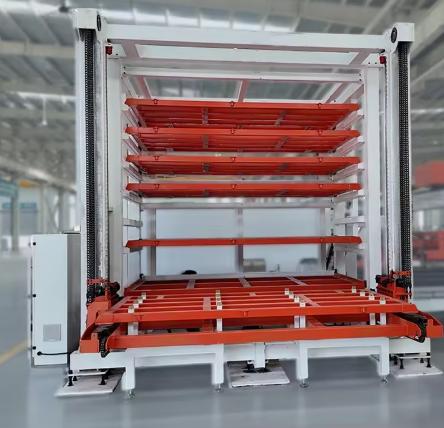

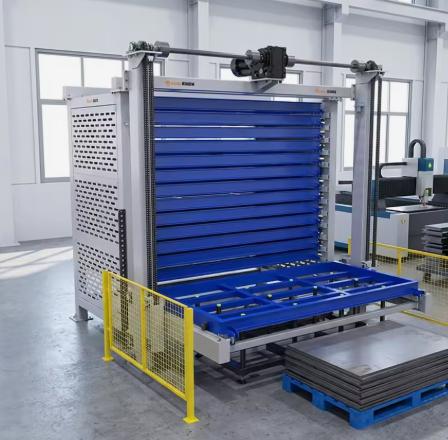

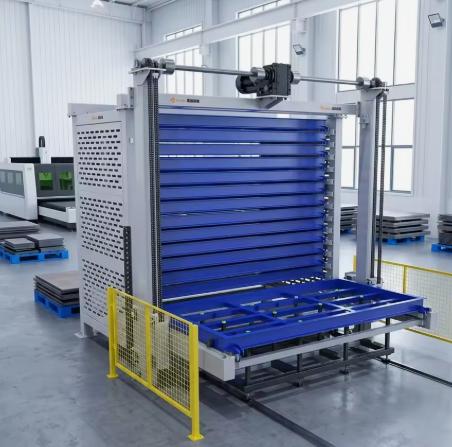

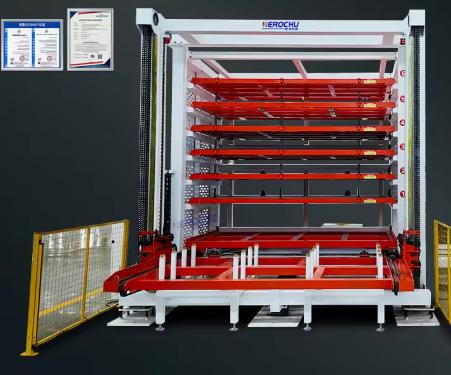

The Herochu fully automated vertical wooden boards storage system employs a drawer-type configuration in which each wooden board is stored flat in its own drawer. This individual storage approach prevents boards from contacting one another, eliminating the primary cause of surface damage. The applicable board size is 1500×3000 mm, accommodating the most common panel dimensions used in woodworking.

Each rack consists of 5 to 10 drawers, allowing for easy classification and separate storage of different specifications. This organization enables woodworking factories to segregate boards by species, grade, thickness, and finish—ensuring that the right material is always available for each production run.

Fully Automated Operation

The Herochu fully automated vertical wooden boards storage system integrates advanced stacker crane technology with PLC control systems and intelligent warehouse management software. The system realizes automatic storage, retrieval, positioning, handling, and real-time inventory management.

These sophisticated automated systems handle the complex task of stacking boards with precision and consistency that manual operations cannot match. The system is designed to eliminate manual handling of large boards, protecting both workers and materials.

Space Optimization

By utilizing vertical space, the Herochu fully automated vertical wooden boards storage system dramatically reduces the floor footprint required for board storage. Traditional horizontal storage consumes valuable factory floor space that could otherwise be used for production equipment. The vertical design increases storage capacity by 10 times while reducing the footprint by 10 times.

This space efficiency is particularly valuable for woodworking factories, where floor space is often at a premium. The system enables facilities to store more inventory in less space, freeing up room for additional production equipment or more efficient workflow layouts.

Material Protection

Wooden boards require protection from moisture, temperature fluctuations, and physical damage. The Herochu system stores boards in controlled conditions within the storage tower, protecting them from environmental factors that can cause warping or degradation. The drawer-type design prevents boards from contacting one another, eliminating surface scratches and edge damage.

The plate support system is optional and customizable, allowing facilities to select the specific support configuration that best matches their board dimensions and weight characteristics. For particularly delicate boards, specialized supports can be specified to prevent marking or compression damage.

Motion and Drive Specifications

The Herochu fully automated vertical wooden boards storage system employs linear guide rail and chain drive mechanisms that ensure smooth, controlled movement. The chain drive transmission provides consistent power delivery, with vertical lifting speeds of 9 meters per minute and inlet/outlet speeds of 12 meters per minute. These controlled speeds prevent sudden jolts or impacts that could damage wooden boards during transport.

The 5.5kW motor provides ample power for handling wooden boards. The optional counterweight system—available in 1.5-ton or 2.5-ton configurations—reduces motor load and extends equipment lifespan.

Intelligent Warehouse Management

The Herochu Warehouse Management System (WMS) provides comprehensive inventory management capabilities specific to wooden board storage. The system supports instant inventory queries, batch traceability, and real-time inventory visibility. Material managers can instantly locate specific boards by species, grade, thickness, or inbound date, eliminating the time wasted searching through stacks.

The WMS supports FIFO (First In, First Out) inventory management, ensuring that older boards are used before newer ones. This is particularly important for woodworking, where boards can degrade over time if not properly rotated.

Seamless Production Integration

The Herochu fully automated vertical wooden boards storage system integrates directly with woodworking production equipment, including panel saws, edge banders, and CNC routers. The system delivers boards to production equipment on demand, eliminating machine idle time waiting for material delivery.

This integration transforms the traditional warehouse into a synchronized, high-velocity material supply chain. Instead of operators searching for materials and manually transporting them to machines, the ASRS delivers the right board to the right machine at the right time.

Durability and Construction

Built with heavy-duty carbon steel framework, the Herochu fully automated vertical wooden boards storage system delivers the structural integrity required for long-term industrial service. Every system comes with a comprehensive 24-month warranty covering component deformation and weld defects.

Industry Applications

The fully automated vertical wooden boards storage system is widely used in woodworking factories, furniture manufacturing facilities, cabinet shops, panel processing lines, and modern intelligent workshops. Any facility that regularly handles wooden boards benefits from the space savings, material protection, and operational efficiency that the Herochu system provides.

Customization Options

Herochu offers extensive customization options for the vertical wooden boards storage system. Facilities can specify the number of storage floors, per-layer load capacity, board dimensions, and support configurations based on their specific requirements. The modular design allows for easy expansion as production needs grow.

For woodworking factories looking to maximize storage potential, improve operational efficiency, and boost overall productivity, the Herochu fully automated vertical wooden boards storage system represents a transformative investment in modern material management infrastructure.
