Heavy-Duty Large-Angle Rotating Sheet Material Handling for Advanced Manufacturing

Modern metal fabrication increasingly demands more than simple linear material movement. Complex parts require sheets to be rotated, flipped, and repositioned at various angles during processing. Traditional handling methods—overhead cranes, forklifts, and manual lifting—struggle to achieve the precision and angle control required for efficient production. Heavy-duty large-angle rotating sheet material handling equipment addresses this gap, enabling manufacturers to position sheets at virtually any orientation with computer-controlled precision.

Herochu has developed advanced rotating material handling systems that integrate large-angle rotation capabilities with high-load capacity and automation. This article examines the technology, applications, and benefits of heavy-duty rotating sheet material handling equipment.

The Need for Large-Angle Rotation

Sheet material processing often requires angular positioning that simple horizontal transport cannot provide:

Laser Cutting: Nested cutting layouts may require sheets to be oriented at specific angles to maximize material utilization. In-air sheet rotation eliminates the need for dedicated floor reorientation stations.

Double-Sided Processing: Operations requiring both sides of a sheet to be processed—such as coating, marking, or inspection—demand sheet flipping capabilities.

Complex Forming: Press brake operations may require sheets to be fed at specific angles to achieve desired bend geometries.

Storage and Retrieval: When sheets are stored vertically, they must be rotated to horizontal for processing, and vice versa.

Heavy-duty large-angle rotating sheet material handling equipment addresses these requirements by providing controlled rotation through ±150 degrees at angular speeds of 2–5 rad/s.

Herochu’s Rotating Material Handling Technology

Herochu has integrated large-angle rotation capabilities into its sheet material handling equipment, creating systems that combine heavy-duty load capacity with precise angular positioning.

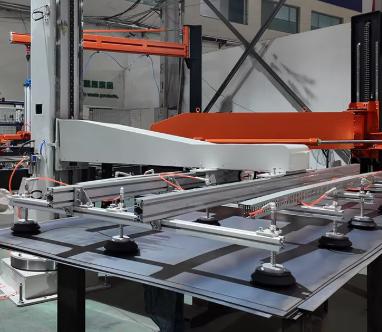

Rotation Mechanism: A pneumatic rotary axis executes in-air sheet rotation mid-transit, eliminating the need for separate reorientation stations. The rotation system is driven by high-resolution encoders and closed-loop servo systems that achieve precise angular control.

Rotation Specifications: The system provides ±150 degrees of rotation at angular speeds of 2–5 rad/s. This range accommodates virtually all sheet orientation requirements encountered in metal fabrication.

Load Capacity: Despite the added complexity of rotation capabilities, Herochu’s systems maintain heavy-duty load capacities of 300kg, with models available for higher capacities.

Computer-Controlled Precision: The rotation is managed by computer control, ensuring that angular positioning matches programmed requirements with repeatable accuracy of ±2mm. This precision eliminates the alignment errors that plague manual rotation methods.

Integration with Material Handling Workflows

Heavy-duty large-angle rotating sheet material handling equipment from Herochu integrates seamlessly with comprehensive material handling workflows:

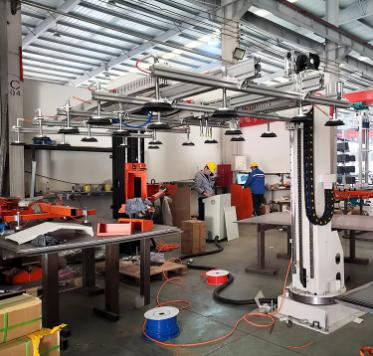

Floor-Mounted Rails: The equipment operates on floor-mounted rails that provide flexible movement across the production floor. This configuration enables sheets to be transported from storage to processing stations while maintaining the ability to rotate them as needed during transit.

Material Carts: Integrated material carts support efficient loading and unloading, reducing handling time and improving workflow efficiency.

Automated Control: Computer-controlled robot and cart movement ensures seamless handling with minimal operator intervention.

High Automation: The system automates the entire material handling sequence—from sheet pickup to transport, rotation, and delivery to processing equipment. This eliminates the manual steps that typically introduce delays and errors.

Applications Requiring Large-Angle Rotation

Heavy-duty large-angle rotating sheet material handling serves critical functions in diverse applications:

Laser Cutting with Nested Layouts: Complex nesting arrangements often require sheets to be rotated to optimize material utilization. Herochu’s rotating handling equipment positions sheets at the exact angle required by the nesting program, maximizing yield and reducing scrap.

Automotive Body Panel Fabrication: Large body panels require precise angular positioning for cutting, forming, and welding operations. The rotation capability ensures that panels are presented at the correct orientation for each process step.

Aerospace Component Manufacturing: Aerospace parts often require multi-axis processing that demands sheet rotation between operations. Herochu’s systems provide the precision required for these demanding applications.

Architectural Metal Fabrication: Large architectural panels—used for facades, roofing, and interior finishes—require rotation for processing on both sides. The heavy-duty rotating equipment handles these large-format sheets with ease.

Safety and Reliability Features

Herochu’s heavy-duty large-angle rotating sheet material handling equipment incorporates comprehensive safety features:

Emergency Air-Cut Protection: In the event of power failure or system malfunction, the system maintains control of the sheet, preventing dropped loads.

Automatic Braking System: When rotation is not in active use, the braking system prevents unintended movement, ensuring stability during loading and unloading.

Anti-Collision Sensors: Integrated sensors detect obstacles in the rotation path, automatically stopping movement to prevent collisions.

Fail-Safe Vacuum System: The vacuum system maintains grip even during power interruptions, ensuring that heavy sheets remain securely held.

These safety features address the primary concerns associated with heavy material handling, making Herochu’s rotating equipment a reliable choice for demanding industrial environments.

Conclusion

Heavy-duty large-angle rotating sheet material handling equipment represents a significant advancement in material handling technology, enabling manufacturers to achieve levels of precision and efficiency previously unattainable with manual methods. Herochu has developed rotating handling systems that combine high-load capacity, precise angular control, and comprehensive automation to address the complex requirements of modern metal fabrication. By integrating these systems into their workflows, manufacturers can reduce cycle times, improve material utilization, and enhance workplace safety—positioning themselves for success in an increasingly competitive industrial landscape.
