Self-loading & Unloading Robotic Arm – Herochu’s Modular Servo System for High-Mix Low-Volume Production

The modern metal fabrication shop rarely runs the same part for weeks on end. Instead, high-mix low-volume (HMLV) production is the new normal—dozens of job changes per day, each with different material sizes, thicknesses, and handling requirements. The Self-loading & Unloading Robotic Arm from Herochu is purpose-built for this environment. Unlike fixed automation that requires extensive reconfiguration, Herochu’s robotic arm features a modular assembly structure that can be quickly adjusted, relocated, or reprogrammed to accommodate changing production needs.

Herochu has engineered this self-loading and unloading robotic arm to handle metal plates from 300 kg up to 1000 kg, with feeding widths ranging from a minimum of 1250×1000 mm to a maximum of 4000×2000 mm. Thickness capabilities from 8 mm to 20 mm cover everything from automotive body panels to structural floor plates. The arm operates using electric servo drives, providing clean, quiet, and energy-efficient performance.

Modular Design for Unmatched Flexibility

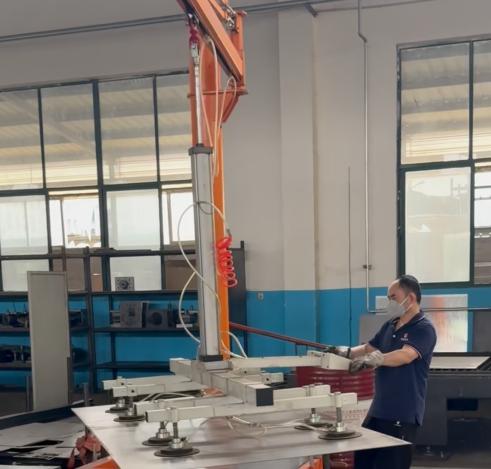

Traditional robotic loaders often require bolted foundations, fixed safety cages, and specialized end-effectors that take hours to change. Herochu’s self-loading and unloading robotic arm takes a different approach. The arm is built from modular segments that can be assembled in multiple configurations: floor-standing, column-mounted, or overhead. The swing arm itself can be fitted with different suction cup beams—ranging from 15-cup arrays (150/200 mm diameter) for standard plates to a 118-cup array (250 mm diameter) for oversized or heavy plates.

This modularity extends to the control system. Herochu provides an open-architecture controller that accepts standard G-code or custom scripts. Operators can program pick-up and drop-off positions using a teach pendant, storing up to 99 different material handling routines. When a job changes, switching from one routine to another takes less than a minute—no mechanical modifications required.

For fabricators running prototype or R&D work, the ability to quickly reprogram the arm means they can test new part geometries without investing in dedicated tooling. For job shops, it means profitable short runs that would otherwise be eaten up by setup time.

Self-Loading and Unloading: A Single Arm, Two Critical Functions

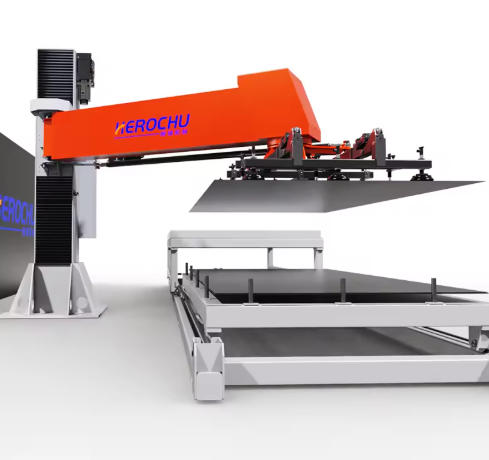

The term “self-loading and unloading” is not just marketing language. Herochu’s robotic arm integrates both functions into one continuous cycle. Here’s how it works in a typical laser cutting application:

1. The arm picks a raw plate from a stack or cart (self-loading).

2. It positions the plate precisely on the laser cutting table, using edge detection or pre-programmed coordinates.

3. After cutting is complete, the arm returns, lifts the finished parts and skeleton (self-unloading).

4. It separates finished parts onto a pallet and discards the skeleton into a scrap bin.

This single-arm workflow eliminates the need for separate load and unload stations, reducing floor space and equipment costs. The arm’s servo-driven motion ensures that parts are not dragged across the cutting table—a common cause of scratches on high-gloss materials like brushed stainless or anodized aluminum.

Automatic Braking and Emergency Stop: Safety Without Compromise

Safety is often cited as a barrier to adopting robotic handling, but Herochu has designed its self-loading and unloading robotic arm with multiple layers of protection. The automatic braking system engages whenever the arm stops—whether at the end of a cycle, during a pause, or during a power failure. This prevents the arm or its load from drifting or falling.

Emergency stop protection is hardwired into the control system. Pressing any E-stop button (located on the pendant, control panel, and optionally at floor stations) immediately cuts power to the servo drive and applies maximum braking force. For facilities with strict safety requirements (e.g., automotive tier-1 suppliers), Herochu can integrate light curtains, laser scanners, or door interlock switches.

The arm also features collision detection. If the suction cup beam encounters an unexpected obstacle—like a plate that shifted on the stack—the servo torque spikes, triggering an automatic stop. This prevents damage to the arm, the workpiece, or nearby equipment.

Economic Operation for Lean Manufacturing

Lean manufacturing principles emphasize reducing waste—motion, waiting, defects, and overprocessing. Herochu’s self-loading and unloading robotic arm addresses several forms of waste directly:

• Motion waste – The arm moves precisely, with no wasted travel.

• Waiting waste – Machines are never waiting for a human operator to load the next plate.

• Defect waste – Consistent placement reduces misalignment cuts and operator errors.

• Overprocessing waste – The arm’s gentle handling eliminates the need for post-process rework or refinishing.

Furthermore, the electric power mode consumes significantly less energy than compressed-air vacuum systems. A typical pneumatic handling system requires a continuous air supply at 80–100 psi, which can cost hundreds of dollars per month in compressor electricity and maintenance. Herochu’s electric servo arm uses on-demand vacuum generation, activating suction cups only when a plate is contacted.

Real-World Applications

The Herochu self-loading and unloading robotic arm has been deployed in:

• Laser cutting job shops – Handling sheets from 8 mm to 20 mm, reducing changeover time between jobs.

• Press brake tending – Feeding pre-cut blanks into press brakes and removing bent parts.

• Shearing lines – Automating the infeed and outfeed of shearing machines.

• Plasma cutting cells – Managing heavy plates (up to 1000 kg) that exceed safe manual lifting limits.

In each application, users report a 50–70% reduction in direct labor for material handling and a 20–30% increase in machine utilization.

Conclusion

Herochu’s self-loading and unloading robotic arm combines modular flexibility, servo precision, and comprehensive safety features into a single integrated system. With payloads up to 1000 kg, coverage up to 4000×2000 mm, and the ability to switch jobs in minutes, it is ideal for HMLV metal fabrication environments. For manufacturers ready to automate their plate handling without sacrificing flexibility, Herochu delivers a proven, economical solution.
