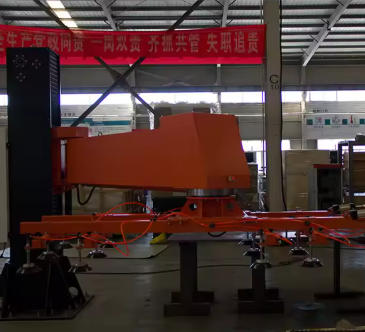

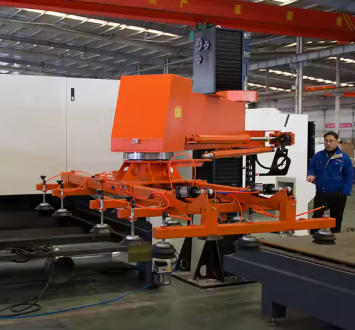

Automatic Material Handling Manipulator – Herochu’s Servo Swing Arm for Seamless Factory Logistics

Material movement within a metalworking facility is often undervalued until it becomes a bottleneck. The Automatic material handling manipulator from Herochu changes that paradigm by integrating intelligent, servo-controlled lifting and positioning directly into your production line. Designed for plates up to 1000 kg and widths up to 4000×2000 mm, this manipulator handles not just loading and unloading but all intermediate material transfers—from raw stock storage to machine feed, from inter-operational transport to finished part stacking.

Herochu’s approach to automatic material handling goes beyond simple pick-and-place. The system’s swing arm architecture, combined with modular suction cup arrays and electric servo drives, creates a versatile platform that adapts to different material types, sizes, and surface conditions. Whether you are moving mild steel, aluminum, stainless, or composite metal sheets, this manipulator delivers consistent, damage-free performance.

Technical Specifications That Cover Real-World Needs

Herochu offers two base frame sizes: HC-R3015 (maximum feeding width 3000×1500 mm) and HC-R4020 (4000×2000 mm). Within each size, multiple payload options are available: 300 kg, 500 kg, and 1000 kg. The minimum feeding width for all models is 1250×1000 mm, ensuring compatibility with standard pallet and rack dimensions. Feeding plate thickness ranges from 8 mm to 20 mm depending on the model, making the system suitable for light-gauge sheets as well as heavy armor plate.

The suction cup configuration is critical for reliable material handling. Models include:

• HC-R3015-500 / HC-R3015-750 / HC-R4020-500 / HC-R4020-750: 15 suction cups, diameter 150 mm or 200 mm.

• HC-R3015-1000: 118 suction cups, diameter 250 mm.

The higher cup count on the 1000 kg model provides increased vacuum gripping area, which is essential for handling large, thin plates that would otherwise flex or slip. All cups are independently spring-loaded to conform to slight material warpage or surface unevenness.

Power and Control: Electric Servo Advantage

Unlike conventional hydraulic manipulators that require pumps, hoses, and regular fluid changes, Herochu’s automatic material handling manipulator runs entirely on electric power. The servo motor drives the swing arm with precise torque control, enabling smooth acceleration and deceleration. This electric architecture offers several practical benefits:

• Lower operating costs – No hydraulic fluid purchases or disposal fees.

• Cleaner operation – No risk of oil leaks contaminating finished parts or the shop floor.

• Quiet motion – Reduced noise pollution compared to pneumatic or hydraulic systems.

• Energy efficiency – Servo motors draw power only when moving; holding torque requires minimal current.

The control system supports programmable positioning. Operators can teach the manipulator multiple pick-up and drop-off points, then recall them via a simple HMI (human-machine interface). For facilities running batch production, the ability to store dozens of material handling recipes reduces setup time between jobs.

Reducing Internal Logistics Costs

In a typical metal fabrication plant, material handling accounts for 15–30% of total production labor. Workers move plates from storage to first operation (e.g., laser cutting), then transfer cut parts to second operation (e.g., bending), then to third (e.g., welding or assembly). Each transfer involves manual lifting, pushing carts, or forklift operation—all of which consume time and introduce risks of damage or injury.

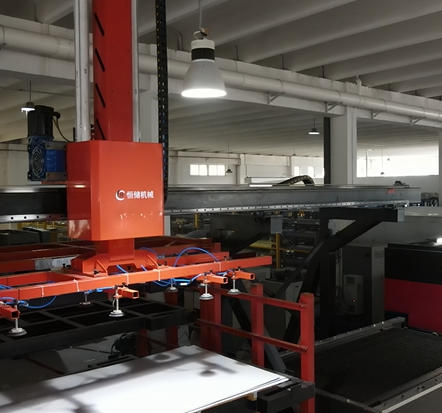

Herochu’s automatic material handling manipulator eliminates many of these manual transfers. When positioned strategically, a single manipulator can serve multiple machines. For example, a manipulator placed between a storage rack and a laser cutter can load raw plates directly. After cutting, the same manipulator (or a second unit) can unload the skeleton and transfer cut parts to a downstream press brake. This reduces work-in-progress inventory and shortens throughput times.

For larger facilities, multiple Herochu manipulators can be linked via conveyor or gantry systems, creating an automated material handling network. The modular design allows each manipulator to be configured for its specific task—some with larger suction cups for heavy plates, others with smaller cups for intricate parts.

Ergonomics and Workforce Safety

Manual handling of heavy metal plates is one of the leading causes of musculoskeletal disorders in manufacturing. Even with mechanical assists like balancers or jib cranes, workers still bear fatigue from repeated lifting, twisting, and reaching. Herochu’s manipulator performs all lifting and rotation automatically, removing the physical strain entirely.

The system’s emergency stop protection and automatic braking are not just regulatory checkboxes—they actively prevent accidents. If an operator inadvertently steps into the work envelope, the optional area scanner triggers an immediate stop. The automatic braking system holds the arm securely even if power is lost, preventing a 1000 kg plate from free-falling. These features create a safer work environment, which in turn lowers insurance premiums and reduces lost-time injury rates.

Economic Justification

When evaluating capital equipment, fabricators often calculate return on investment (ROI). For Herochu’s automatic material handling manipulator, ROI typically comes from three sources:

1. Labor savings – Replacing one or two material handlers per shift.

2. Damage reduction – Fewer scratched or bent plates, reducing scrap and rework.

3. Throughput increase – Consistent, rapid handling eliminates waiting time at machines.

In many installations, the manipulator pays for itself within 12 to 18 months. Additionally, the system’s electric power consumption is minimal—often less than a standard household appliance when averaged over a shift.

Conclusion

Herochu’s automatic material handling manipulator is a robust, flexible solution for moving metal plates throughout the fabrication process. With servo-driven precision, modular assembly, payloads up to 1000 kg, and comprehensive safety features, it transforms material logistics from a labor-intensive chore into a streamlined, automated workflow. For manufacturers seeking to reduce costs, improve safety, and increase output, this manipulator delivers measurable results.
