Reinforced Structure Long Item Storage Systems

Industrial warehouses handling long items—steel pipes, aluminum extrusions, wooden beams, or plastic profiles—face a unique challenge. Standard pallet racks fail to accommodate 6‑ to 12‑meter lengths, and floor stacking turns into a chaotic maze. A reinforced structure long item storage system is not an option; it is a necessity for safety, space utilization, and operational speed. Herochu has engineered a cantilever‑based solution that directly addresses the structural weaknesses found in conventional long‑item storage.

Why Reinforced Structure Matters for Long Items

Long items exert uneven load distribution. A 10‑meter steel pipe weighing two tons places stress not only vertically but also horizontally, especially when stored on cantilever arms. Traditional racks with thin steel or weak joints tend to sag, twist, or even collapse over time. Herochu’s reinforced structure long item storage systems use high‑grade steel with a minimum yield strength of 350 MPa. The upright columns feature a box‑section design with additional gusset plates at every connection point. This geometry prevents bending under eccentric loads—a common failure mode when storing pipes that extend far beyond the arm tip.

The base plates are 12 mm thick, hot‑rolled, and welded with full penetration seams. Each base anchors to the floor using four M20 expansion bolts, giving the entire system an overturning resistance rated for seismic Zone 3 conditions. For warehouses located in active industrial zones or regions with heavy forklift traffic, this reinforced base eliminates the slow wobble that loosens standard racks over time.

Load Capacity and Real‑World Testing

Herochu’s single‑sided cantilever units achieve a per‑arm load of up to 6 tons, with a single layer supporting between 1 and 10 tons depending on arm length and spacing. The company operates its own 16,000 m² factory equipped with a 300‑ton press brake and robotic welding lines. Every reinforced structure long item storage system undergoes a 150% static load test before shipment. In one documented case, a pipe warehouse storing 8‑meter drill collars (each 1.2 tons) stacked three arms per column. After 18 months of daily crane loading, no measurable deflection occurred at the arm roots.

Design Features That Reinforce Daily Operations

Reinforcement is not only about withstanding weight—it also improves access speed. The Herochu system integrates a patented double‑ribbed arm profile. The upper rib carries compression forces, while the lower rib handles tension during dynamic loading (e.g., when a fork truck places a pipe slightly off‑center). Between the ribs, a punched hole pattern allows adjustable arm positioning at 75 mm increments. This lets warehouse managers reinforce specific bays where heavier materials are concentrated without buying separate rack models.

The system also includes a reinforced back‑to‑back connector kit. When arranging double‑sided rows, these connectors turn two independent racks into a single rigid structure. Lateral bracing spans every 1.5 meters, preventing the “domino effect” where one overloaded arm causes the entire row to lean. For extra long items—up to 12 meters (40 feet)—Herochu supplies mid‑span support legs that bolt to the floor, effectively converting a cantilever into a simply supported beam. This hybrid approach allows storage of extremely heavy long items without requiring massive upright profiles.

Case Study: Replacing Floor Stacking with Reinforced Structure

A metal service center in Guangdong previously stored 10‑meter brass bars on concrete floor blocks. Each bar required a forklift to dig through layers, damaging surface finishes and consuming 400 m² of floor space. After installing a Herochu reinforced structure long item storage system (single‑sided, three levels, arms adjustable every 150 mm), the facility reduced storage footprint to 85 m². The reinforced cantilever arms held up to 5 tons per level. More importantly, retrieval time dropped from 45 minutes to under 3 minutes per session. The warehouse manager reported zero material damage from storage in the first year—a direct result of the anti‑twist reinforcement and arm‑end stoppers.

Customization for Specific Long Materials

Not all long items are straight pipes. Herochu offers customized arm profiles: flat arms for timber, U‑shaped arms for profiles with flanges, and V‑shaped arms with rubber liners for polished tubes. The reinforced structure long item storage systems can be ordered with single‑sided configuration (wall‑mounted style) or double‑sided (back‑to‑back) for center aisles. Arm lengths range from 300 mm to 1,800 mm, and the number of arms per column is fully scalable. For warehouses storing mixed lengths, Herochu provides stepped arm arrangements—shorter arms on top, longer arms below—all within the same reinforced upright.

Compliance and Longevity

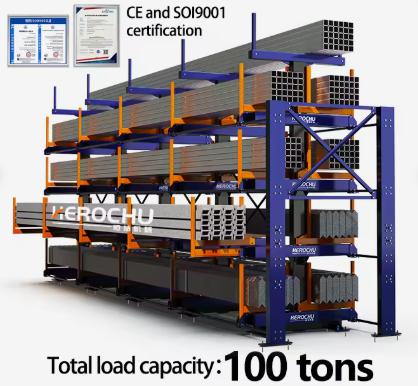

Every system is ISO 9001 certified and CE marked. The electrostatic powder coating (minimum 80 microns) passes a 500‑hour salt spray test, ensuring corrosion resistance even in pipe warehouses storing wet or chemically treated materials. Herochu’s own factory team handles design, cutting, welding, and painting under one roof, which eliminates quality variations common with outsourced components. For companies planning to expand, the modular design allows adding extra bays or converting single‑sided to double‑sided without replacing uprights.

In summary, a reinforced structure long item storage system from Herochu transforms dangerous floor piles into organized, safe, and space‑efficient vertical storage. The combination of high‑strength steel, adjustable arms, and anti‑overturn engineering makes it the logical choice for any industrial pipe or bar warehouse.
