Manual Pull-out Vertical Rack Storing Metal Sheet Remnants for Efficient Workshop Organization

In modern metal fabrication facilities, one of the most persistent challenges is the efficient storage of metal sheet remnants. These leftover pieces, often considered waste, actually represent significant material value that can be recovered and reused. The Manual Pull-out Vertical Rack Storing Metal Sheet Remnants from Herochu offers a transformative approach to this common industrial dilemma, providing an organized, accessible, and space-efficient solution for workshops of all sizes.

Understanding the Challenge

Traditional floor stacking of metal sheet remnants creates numerous operational problems. Piles of steel, aluminum, and other metals consume valuable floor space, create safety hazards, and make it difficult to locate specific materials. Workers often spend excessive time searching through stacks, moving heavy sheets, and struggling to retrieve the right piece. This inefficiency translates directly into lost productivity and increased operational costs.

The Herochu Vertical Rack system fundamentally changes this dynamic by introducing a structured approach to remnant storage. By utilizing vertical space and implementing a pull-out drawer system, this innovative solution eliminates the chaos of floor stacking while providing immediate access to all stored materials.

Technical Specifications and Design Excellence

Herochu’s manual pull-out vertical racks are engineered with precision to handle the demanding requirements of industrial environments. The system accommodates various sheet sizes, including standard dimensions of 2000x1000mm, 2500x1500mm, and 3000x1500mm. Each drawer layer supports up to 1 ton of material, with the capacity for customization to handle heavier loads when required.

The rack features 15 storage layers with 50mm of available height between partitions, ensuring optimal organization for different material thicknesses. External dimensions vary by model, with the HC-V2010-15 measuring 2700x2455x1200mm, while the larger HC-V3015-15 extends to 2700x4455x1700mm. This versatility allows facilities to select the configuration that best matches their available space and storage requirements.

Operational Advantages

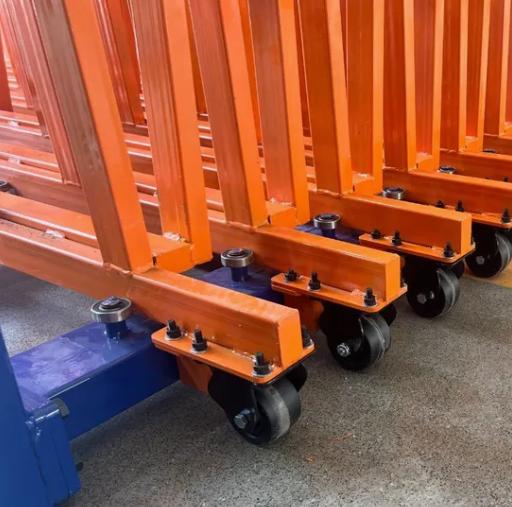

The pull-out mechanism represents a significant advancement over traditional storage methods. Each drawer extends fully, providing unobstructed access to stored materials. This design eliminates the need for workers to reach into deep racks or move multiple sheets to access bottom layers. The result is safer, more efficient material handling that reduces the risk of workplace injuries and material damage.

Material Protection and Quality Preservation

Surface damage represents a substantial cost in metal fabrication. When sheets are stacked horizontally, the weight of upper layers can cause scratching, denting, and deformation of lower materials. The Herochu vertical rack system eliminates this problem by providing individual storage compartments for each sheet or group of sheets. This separation ensures that materials maintain their original quality, reducing waste and preserving the value of expensive metals.

Customization Capabilities

Herochu recognizes that every workshop has unique requirements. The standard models provide excellent starting points, but the company offers extensive customization options. Facilities can specify custom dimensions, layer counts, and load capacities to match their specific needs. This flexibility ensures that the storage solution integrates seamlessly into existing workflows and maximizes available space.

Implementation and Integration

Transitioning to a vertical storage system requires careful planning, but the benefits far outweigh the initial effort. The Herochu rack system integrates smoothly into most workshop layouts, requiring only a clear floor space for installation. The manual operation eliminates the need for complex electrical systems, reducing both installation costs and ongoing maintenance requirements.

Economic Benefits

The financial advantages of implementing the Herochu vertical rack system are substantial. By maximizing vertical space utilization, facilities can significantly reduce their required footprint, potentially avoiding costly expansions or relocations. The organized storage system also reduces material handling time, allowing workers to focus on value-added activities rather than searching for materials.

Conclusion

The Herochu Manual Pull-out Vertical Rack represents a smart investment in operational efficiency. By providing organized, accessible storage for metal sheet remnants, this system helps facilities recover value from materials that would otherwise be wasted. The combination of space efficiency, material protection, and improved workflow makes it an essential tool for modern fabrication operations seeking to optimize their storage capabilities.
