800kg Load Capacity Metal Sheet Handling Equipment Optimises Heavy Plate Processing Operations

The 800kg load capacity represents a significant threshold in metal sheet handling equipment, bridging the gap between light-duty manipulators and heavy industrial lifting systems. Herochu has developed a comprehensive line of 800kg-capacity metal sheet handling equipment that addresses the specific requirements of heavy fabrication environments, where plates of substantial weight and dimension must be moved efficiently and safely throughout the production cycle.

Defining the 800kg Load Class

Equipment rated for 800kg load capacity occupies a strategic position in industrial material handling. This capacity handles the majority of standard metal sheet sizes encountered in typical fabrication operations—plates up to 3000mm × 1500mm with thicknesses ranging from 1mm to 20mm fall comfortably within this rating. The 800kg threshold also aligns with common crane and hoist capacities found in manufacturing facilities, allowing seamless integration with existing lifting infrastructure.

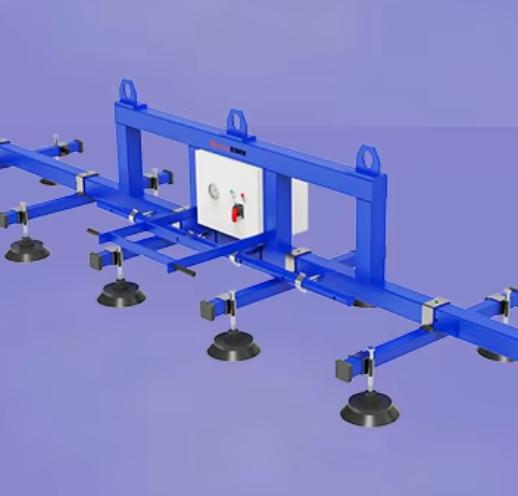

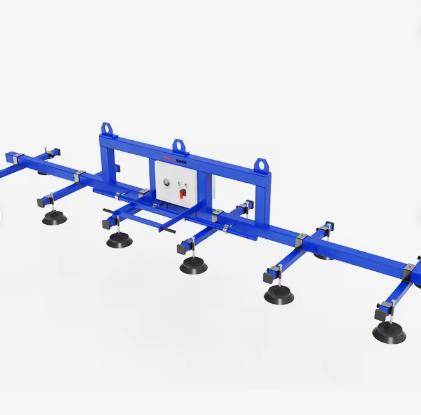

Herochu’s 800kg-rated systems achieve this capacity through a combination of robust structural design and high-performance vacuum generation. The suction array typically features eight pads, each contributing to the total holding force【0†L?】. The vacuum pump maintains consistent negative pressure across the entire lifting cycle, compensating for minor leakage that may occur through surface imperfections or material porosity.

Structural Design for Heavy Loads

The structural elements of 800kg metal sheet handling equipment must withstand significant dynamic forces during lifting, traversing, and positioning. Herochu employs aluminium alloy construction that provides strength-to-weight ratios superior to conventional steel designs. This material choice reduces overall equipment weight while maintaining structural integrity under full load conditions.

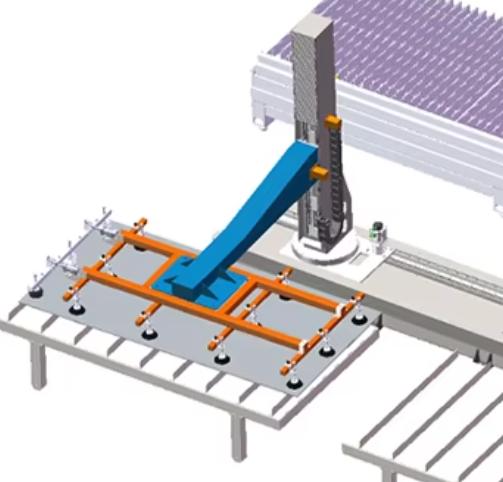

The beam and column configuration supports the 800kg payload while allowing full articulation across the work envelope. For cantilever configurations, the slewing arm rotates through a wide arc, providing coverage across the machine bed or worktable. The column mounting transfers loads directly to the floor foundation, ensuring stability during operation.

Vacuum System Performance at 800kg Rating

Achieving reliable 800kg lifting capacity requires vacuum systems capable of generating and maintaining substantial holding force. Herochu’s equipment employs oil-free vacuum pumps that deliver consistent performance without the maintenance requirements of oil-lubricated alternatives. These pumps consume up to 40% less energy than conventional rotary vane units, reducing operating costs while maintaining the vacuum levels necessary for 800kg loads.

The vacuum circuit incorporates a storage accumulator that provides reserve capacity for emergency situations. This reserve ensures that even in the event of power interruption, the load remains securely attached for a sufficient duration to allow safe lowering. The accumulator also smooths vacuum fluctuations during pump cycling, maintaining consistent holding force throughout the lifting operation.

Material Handling Capabilities

Eight hundred kilogram capacity metal sheet handling equipment from Herochu accommodates a wide range of material types and conditions. Steel plates—including carbon steel, stainless steel, and galvanised sheets—represent the primary application, with thickness ranges from 1mm to 20mm covered by different model configurations. Aluminium plates, copper sheets, and other non-ferrous metals handle equally well, provided surfaces offer sufficient smoothness for vacuum pad sealing.

The equipment also handles materials with surface contaminants including oil, rust, and mill scale. The closed-cell vacuum pad design maintains effective sealing even on surfaces that would compromise open-cell or less robust pad designs. This tolerance to surface conditions reduces pre-cleaning requirements, streamlining workflow and reducing labour costs.

Operational Efficiency Gains

The implementation of 800kg metal sheet handling equipment delivers measurable productivity improvements. One-click loading and unloading operations reduce labour requirements and increase processing efficiency by over 50%【0†L?】. The reduction in personnel involvement decreases labour intensity for workers while improving operational speed and positioning accuracy.

The rapid cycle times enabled by vacuum lifting technology translate directly to increased throughput. A single operator can manage the entire lifting process—from engaging the load to final placement—without requiring assistance. This autonomy allows production schedules to maintain momentum without delays caused by coordinating multiple personnel for each lift.

Safety Systems for Heavy Load Handling

The risks associated with handling 800kg loads demand comprehensive safety systems. Herochu equipment incorporates multiple layers of protection that activate automatically or through operator intervention. The gas interruption protection system prevents load release in the event of pneumatic supply failure【0†L?】. Anti-top loading devices prevent operators from exceeding rated capacities or attempting lifts outside the equipment’s safe operating envelope.

The emergency stop system provides immediate load retention in critical situations, while the visual and audible warning systems maintain operator awareness of system status throughout the lifting cycle. These safety features work in concert to create a protective environment around the lifting operation, reducing accident risk and protecting both personnel and materials.

Integration with Production Workflows

Eight hundred kilogram metal sheet handling equipment integrates into existing production workflows without requiring extensive reconfiguration. The equipment interfaces with laser cutting machines, flame cutting tables, bending presses, punching machines, and shearing equipment. This compatibility allows facilities to deploy vacuum lifting capability across multiple production stations, improving material flow throughout the shop.

Herochu offers customisation options that adapt equipment to specific workflow requirements. Adjustable rectangular clamps allow flexible positioning of suction pads to accommodate different workpiece sizes and shapes. Telescopic rails accept sheets up to 3 metres in length, while the retractable cantilever design folds back when idle to reclaim floor space.

Quality Assurance and Certification

All Herochu 800kg metal sheet handling equipment undergoes rigorous quality assurance procedures before shipment. The company maintains a dedicated quality control department compliant with ISO9001 standards, ensuring consistent manufacturing quality across all production runs. CE certification for all exports verifies compliance with European safety requirements, facilitating international deployment. Load testing confirms each unit achieves its rated 800kg capacity under controlled conditions.
