Gantry Loading Robot Storage System – Fully Automated Material Handling

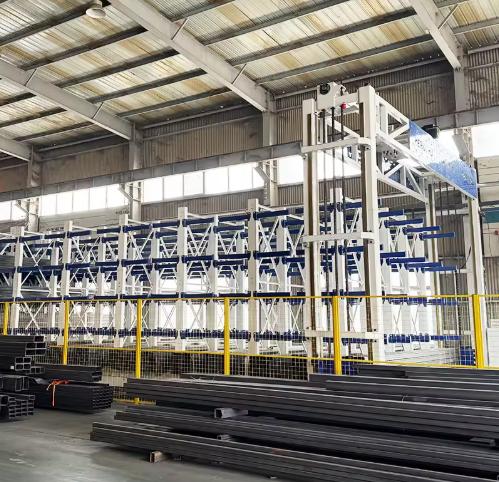

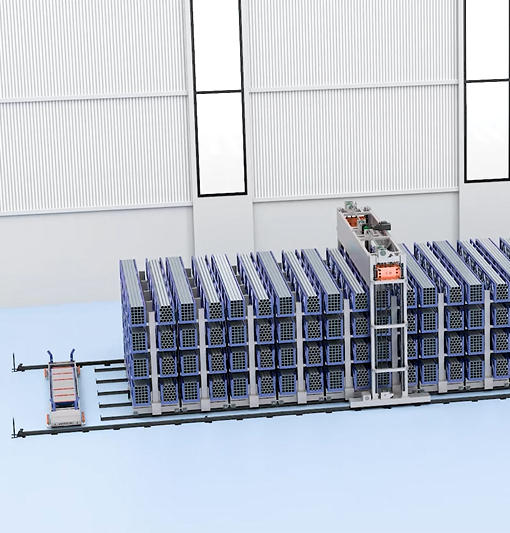

The intersection of robotics and high-density storage has given rise to a new class of material handling equipment: the gantry loading robot storage system. Unlike traditional gantries that merely transport loads between fixed points, a true gantry loading robot incorporates articulated pick-and-place capabilities, sensor-guided alignment, and intelligent sequencing. The Herochu Gantry Loading Robot Storage System merges a high-speed traveling gantry with robotic loading/unloading functions, creating a self-contained storage cell that requires no forklift or crane intervention for routine operations. This system is particularly valuable for facilities processing profiles, tubes, and bars where manual loading introduces bottlenecks and ergonomic risks.

Redefining the Loading Operation

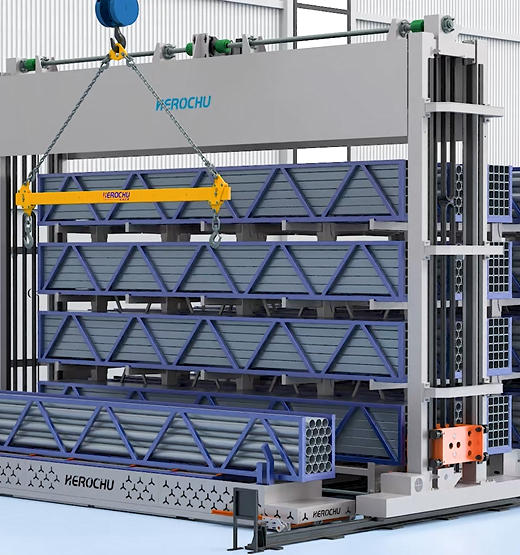

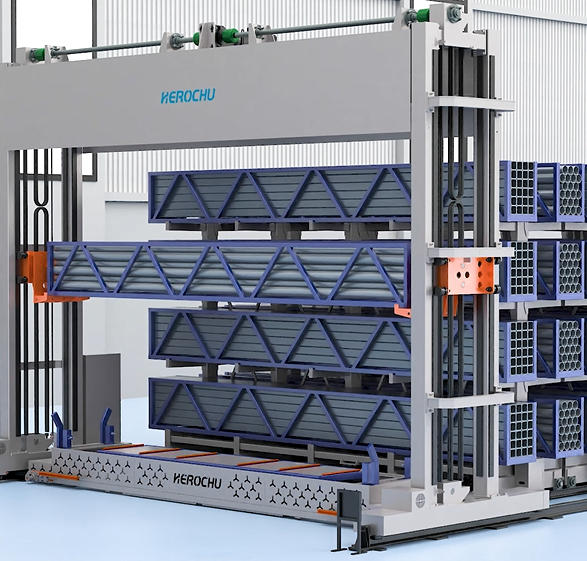

In conventional long goods storage, a forklift driver must carefully position each bundle onto the gantry’s pickup station. This step involves visual judgment, multiple reverse moves, and frequent adjustments. The Herochu Gantry Loading Robot Storage System eliminates this by integrating the loading platform directly into the gantry’s workspace. A set of powered rollers or chain conveyors feeds materials from the receiving dock to the gantry’s loading zone. The gantry itself carries a robotic gripper head that can rotate, tilt, and clamp. When a new shipment arrives, the operator only needs to place the bundle on the infeed conveyor. Optical sensors measure the bundle’s length, diameter, and weight. The gantry robot then autonomously picks the material, aligns it using the automatic centering function, and stores it in the assigned shelf location. The reverse process—retrieval and loading onto outbound trucks—is equally automated.

Speed as a Competitive Advantage

Herochu has engineered its gantry loading robot system to achieve a maximum travel speed of 50 m/min, double that of comparable systems on the market (approximately 25 m/min). This speed is not merely a marketing figure; it directly reduces the time between storage and retrieval commands. For a warehouse handling 500 storage cycles per day, the 25 m/min speed difference saves over 12 hours of cumulative travel time each month. The gantry lifting speed ranges from 5 to 15 m/min, and the robotic wrist can perform a full 180-degree rotation in under 4 seconds. All motion axes are controlled by Schneider Electric servo drives, ensuring smooth acceleration and deceleration to prevent load swing.

Intelligent Load Management

The Siemens touchscreen HMI offers comprehensive features that go beyond basic controls. Automatic weighing is integrated into the loading platform: as the gantry robot picks a material bundle, strain gauges record its weight and transmit the data to the WMS. Balance management algorithms then adjust storage location assignments to distribute weight evenly across the shelf towers. This prevents overloading of any single shelf level, which is critical when storing heavy steel profiles. The library swapping feature allows operators to exchange entire shelf modules—for example, moving a rarely used profile type to a higher level while bringing fast-moving inventory to waist height. All these operations are executed by the gantry loading robot without manual re-rigging.

Precision Machining and Protective Design

The structural backbone of the Herochu Gantry Loading Robot Storage System is a column gantry milling machine frame. This manufacturing method ensures that the gantry’s vertical columns and horizontal crossbeam are flat, square, and parallel to within 0.1 mm over the entire length. The gripper mounting plate is similarly machined to guarantee that the robot’s pick position remains consistent regardless of travel position. External protective sheet metal encloses the gantry’s drive chains, cable tracks, and limit switches. This sheet metal is powder-coated in safety yellow with black striping, meeting OSHA visibility standards. It also prevents chips, dust, and coolant mist from industrial environments from contaminating the precision bearings and sensors.

Software Ecosystem: WMS and WCS Integration

No gantry loading robot storage system can operate effectively without robust software. Herochu provides a proprietary Warehouse Management System (WMS) and Warehouse Control System (WCS) as standard. The WMS maintains a digital twin of every shelf location, tracking not only which material is stored but also its remaining length, heat lot number, and date of receipt. The WCS translates retrieval requests into optimized motion sequences: if multiple orders require pipes from different shelves, the WCS will sequence the picks to minimize gantry travel, sometimes combining picks into a single pass. Real-time large-screen displays show the current gantry position, active jobs, and inventory status. For facilities with existing ERP systems, Herochu offers SQL-based integration that automatically pushes inventory updates and consumption records.

Technical Parameters Applicable to the Robot System

While the gantry loading robot system shares the base technical specifications of the Herochu library family, the robotic version introduces additional parameters. The standard models—HC-X6053-8 (6,000 mm length, 5 layers, 3,000 kg per level, 8 racks), HC-X7065-10 (7,000 mm, 6 layers, 5,000 kg, 10 racks), and HC-X8085-10 (8,000 mm, 8 layers, 5,000 kg, 10 racks)—all support robotic loading. The gantry traveling speed remains 5-30 m/min (programmable), lifting speed 5-15 m/min, and repeatability ±2 mm. What distinguishes the robotic system is the payload capacity of the gripper: up to 1,500 kg for the standard vacuum/mechanical hybrid head, with optional hydraulic clamping for heavier bundles. The gripper can accommodate round, square, rectangular, and C-channel profiles without tool changes, thanks to adaptive jaws that self-center on the material’s cross-section.

Practical Application: Automotive Parts Supplier Case Study

An automotive Tier-1 supplier was storing 7-meter aluminum extrusions for EV battery frames. Previously, they used floor racks and a forklift, resulting in damaged extrusions (scratches from improper lifting) and inaccurate inventory counts. After installing the Herochu Gantry Loading Robot Storage System (HC-X7065-10 configuration), the supplier achieved three key improvements. First, damage rates fell from 5% to below 0.5% because the robotic gripper uses padded clamping surfaces and gentle acceleration profiles. Second, inventory accuracy reached 99.8% thanks to automatic weighing and WMS tracking. Third, the loading/unloading time per truck was cut from 45 minutes to 12 minutes, allowing the receiving dock to handle double the daily shipments without adding staff. The system paid for itself in 14 months through reduced scrap, labor savings, and avoided warehouse expansion.

Operational Best Practices

To maximize the life of a Herochu Gantry Loading Robot Storage System, operators should follow a few simple guidelines. Daily visual checks of the Omron sensors—wipe any oil or dust from the lens covers. Weekly lubrication of the gantry’s linear guide rails using the provided grease fittings. Monthly verification of the automatic centering function by placing a test pipe and measuring its final position deviation; recalibrate if deviation exceeds 3 mm. The Siemens HMI stores a maintenance log that can be exported via USB. Herochu offers a remote diagnostic service: with the customer’s permission, a Herochu technician can log into the WCS software to review error codes and adjust parameters without a site visit.

Conclusion: The Herochu Difference

When evaluating gantry loading robot storage systems, many buyers focus solely on hardware specifications. Herochu distinguishes itself by providing an integrated solution where the gantry, robot gripper, sensors, HMI, WMS, and WCS are designed as one system—not components sourced from multiple vendors. This single-source approach simplifies troubleshooting and ensures that any future software updates remain compatible with the hardware. For manufacturers, distributors, and service centers handling long, heavy, or valuable materials, the Herochu Gantry Loading Robot Storage System delivers the speed, precision, and reliability needed to stay competitive.
