Every sheet metal fabrication manager knows the arithmetic of wasted space. A 4’x8′ sheet of 10-gauge steel occupies 32 square feet when laid flat. Stack ten of them, and you have 320 square feet of floor space consumed by material that could be generating revenue on a laser cutter or press brake. The mathematics become even more punishing when you calculate the labor hours lost to retrieving sheets from the bottom of a stack.

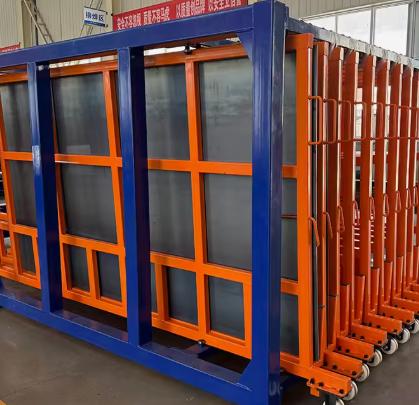

The high density vertical roll out sheet metal rack fundamentally changes this equation. Instead of spreading inventory horizontally across valuable floor space, Herochu engineered this system to leverage the vertical cube of your facility—the dimension that most warehouses leave completely unused. By storing sheets on their edge in a series of independently operated roll-out drawers, this system achieves storage densities that flat stacking simply cannot match.

The Engineering Behind High Density Storage

The Herochu high density vertical roll out sheet metal rack operates on a deceptively simple principle: store sheets vertically, access them horizontally. Each sheet resides in its own dedicated drawer compartment, mounted on heavy-duty industrial bearings that allow full 100% extension. When an operator needs a specific sheet, they pull out the corresponding drawer, creating immediate, unobstructed access to every sheet in that compartment.

This design eliminates the “Jenga problem” that plagues traditional storage methods. In a conventional stack, retrieving the bottom sheet means moving everything on top of it. With the roll-out configuration, every sheet is a first-class citizen. There is no shuffling, no restacking, no dangerous reaching into unstable piles.

The standard Herochu high density vertical roll out sheet metal rack accommodates sheet sizes up to 3000×1500 mm across 15 pull-out drawers, with each drawer rated for loads up to 2,000 pounds. Custom configurations are available for larger formats and heavier applications, with per-drawer capacities scaling to 6,600 pounds for specialized industrial requirements.

Space Utilization: The Real Numbers

The density advantage of vertical roll-out storage is quantifiable. Industry benchmarks indicate that high density vertical roll out sheet metal racks can increase storage density by 400% compared to flat stacking. A system storing 30 sheets of 4’x8′ material might occupy just 35 square feet of floor space with an access aisle, compared to over 200 square feet required for the same inventory in flat stacks.

This space recovery translates directly to operational flexibility. The floor area reclaimed from material storage becomes available for additional workstations, WIP staging areas, or simply improved workflow around existing equipment. For fabrication shops operating in expensive industrial real estate, the space savings alone often justify the investment within the first year of operation.

Material Protection and Quality Preservation

Surface quality represents one of the hidden costs of traditional sheet storage. When sheets stack against each other, the metal-on-metal contact creates scratches, dings, and pressure marks. Moisture trapped between stacked plates accelerates oxidation and rust formation. For high-value materials like polished stainless steel, aluminum, or coated products, this damage can render entire sheets unusable.

The high density vertical roll out sheet metal rack eliminates these risks entirely. Each sheet is independently supported with no weight transfer between layers. A 20-gauge stainless sheet stored in an upper drawer bears no load from a 1-inch steel plate stored below. The non-skid drawer surfaces keep sheets securely in place during extension and retraction, preventing the sliding that causes surface abrasion.

Operational Efficiency and Labor Savings

The operational case for high density vertical roll out sheet metal storage rests on retrieval time. In a traditional storage environment, finding and retrieving a specific sheet can consume 20 minutes or more of operator time. This is time that your most expensive equipment—laser cutters, press brakes, and punch presses—spends waiting for material.

With the roll-out system, retrieval takes under two minutes. A single operator identifies the needed sheet, rolls out the corresponding drawer, and uses an overhead crane, vacuum lifter, or lifting magnet to extract the material. The process requires no helper, no forklift, and no dangerous manual handling.

This efficiency compounds throughout the workday. If your shop retrieves 20 sheets per day, the time savings can approach six hours of recovered labor. That’s productive capacity returned to your operation without adding headcount or capital equipment.

Technical Specifications

Why Herochu

Herochu has engineered the high density vertical roll out sheet metal rack to meet the demands of modern fabrication environments. Each unit features heavy-duty welded steel construction, precision-mounted bearings for smooth drawer operation, and powder-coated finishes that resist workshop corrosion. The system is available in manual crank and electric drive configurations, accommodating facilities ranging from small job shops to high-volume OEM production lines.

For operations requiring mobile storage, Herochu offers caster-mounted configurations with central foot brakes that allow racks to be positioned against walls during off-hours and rolled into aisles when access is needed. This flexibility makes the high density vertical roll out sheet metal rack suitable for facilities where floor space must serve multiple functions throughout the production cycle.
