For procurement managers and industrial engineers, the decision to invest in new storage infrastructure is driven by technical specifications and performance metrics. The Herochu Heavy-duty rack for sheet pallets with a capacity of 3 tons per level is a piece of equipment defined by its robust technical parameters and its adaptability to a wide range of industrial applications. This article provides a deep dive into the technical architecture of the Herochu system, exploring how its specific features translate into operational excellence for heavy industry.

Category Heavy duty sheet metal storage racks Tag Heavy-duty rack for sheet pallets with a capacity of 3 tons per level

Heavy-duty rack for sheet pallets with a capacity of 3 tons per level

Technical Architecture and Load Dynamics

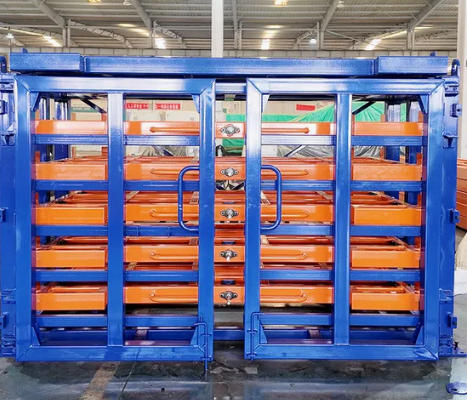

The Herochu Heavy Duty 3 Ton Warehouse Storage Rack is built upon a heavy-gauge carbon steel framework designed to withstand the rigors of industrial fatigue. The core of the system is the drawer mechanism, which utilizes high-precision ball bearing guide rails. These rails are engineered to facilitate smooth extension and retraction even under maximum load conditions. The system supports a customizable load-bearing capacity of 1-20 tons per single shelf, allowing for the storage of diverse materials ranging from lightweight aluminum sheets to massive steel blocks. The structural design ensures that the load is distributed uniformly, preventing stress concentrations that could lead to material failure.

Dimensional Flexibility and Configuration
One of the standout technical features of the Herochu system is its dimensional versatility. The rack is available in a variety of plate sizes to accommodate standard and non-standard sheet metal dimensions:

Standard Plate Sizes: 20001500mm, 30001500mm, 4000*1500mm.
Oversized Plate Sizes: 60001500mm, 60002000mm.
The vertical configuration is equally flexible, with options for 5+1, 6+1, 8+1, and 10+1 layers. The single layer height is adjustable between 220mm and 300mm, allowing for the precise storage of materials with varying thicknesses. This modularity ensures that the “cubic utilization” of the warehouse is maximized, reducing the cost per stored unit.

Extension Mechanisms and Automation
The Herochu system offers three distinct extension methods to suit different operational tempos:

Manual Pulling: Engineered for low-to-medium throughput, utilizing high-efficiency bearings to minimize physical effort.
Electric Extension: Ideal for high-throughput environments, allowing for push-button operation of heavy drawers.
Automatic Extension: Integrated into fully automated storage and retrieval systems (AS/RS) for maximum efficiency.
This versatility allows the Herochu rack to function as a standalone unit or as part of a larger, automated material handling ecosystem.

Material Protection and Surface Engineering
To prevent damage to sensitive materials, the drawers are equipped with inclined plastic supports within continuous trays. This design feature isolates the stored sheets from the metal structure, preventing scratching and marring. Additionally, the racks can be finished in customized colors, providing not only aesthetic alignment with corporate branding but also an additional layer of corrosion resistance suitable for various environmental conditions.

Compliance and Quality Standards
The Herochu Heavy Duty Pallet Racking is manufactured in a facility certified to ISO9001 standards, ensuring consistent quality control. The product carries the CE mark, indicating compliance with European health, safety, and environmental protection standards. The manufacturing process includes rigorous testing records for each batch, ensuring full traceability. The delivery cycle is standardized at 30 days, with options for on-site installation by professional teams or detailed online guidance for self-assembly.

Application Scenarios
The technical capabilities of the Herochu rack make it suitable for a wide array of industrial sectors:

Sheet Metal Fabrication: Storing steel, aluminum, and copper sheets of varying gauges.
Glass and Acrylic Processing: The scratch-free support system is ideal for storing fragile glass or polished acrylic panels.
Automotive Manufacturing: Storing large body panels and stamping blanks.
Aerospace: Managing high-value, oversized composite materials.

In summary, the Herochu Heavy-duty rack for sheet pallets is not merely a storage unit; it is a precision-engineered industrial tool. By combining extreme load capacity with high-precision mechanics and extensive customization options, Herochu delivers a solution that meets the demanding requirements of modern heavy industry. Whether for a small job shop or a large-scale manufacturing plant, the technical superiority of the Herochu system ensures a safe, efficient, and organized workflow.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
