Automatic Sheet Metal Storage System: 75% Space Savings with PLC-Controlled Vertical Tower Design

For sheet metal fabrication shops and high-automation manufacturing lines, the traditional method of ground stacking creates three persistent problems: excessive floor space consumption, chaotic inventory tracking, and slow material turnover. The Herochu automatic sheet metal storage system directly resolves these pain points through a vertical tower architecture combined with PLC-driven automated retrieval. Unlike flat storage where operators walk long distances to locate specific gauges or alloys, this system presents any required sheet at the unloading station within seconds.

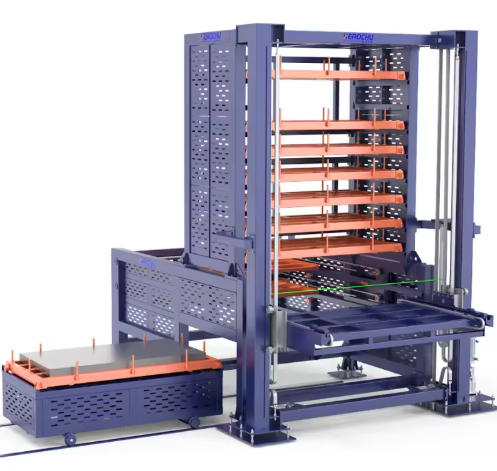

The automatic sheet metal storage system from Herochu operates on a simple principle: store vertically, retrieve horizontally. Each tower accommodates multiple trays, with each layer rated for up to 1800 kg of material. The vertical lifting mechanism travels at 9 meters per minute, while the inlet and outlet speed reaches 12 meters per minute. For a typical workshop storing 50 tons of steel sheets across 30 different thicknesses, this translates to an average access time under two minutes – a reduction of more than 80 percent compared to forklift-dependent ground stacking.

Herochu engineered this system with a welded steel frame that bolts together in an assembly-type structure. This modularity means the height, tray dimensions, and load capacity can be customized to match your specific sheet sizes and ceiling clearance. Factories with low overhead space can deploy shorter towers, while those with high bay warehouses can stack up to ten layers or more. The pressure rating of 667 kg per square meter on each pallet ensures that even dense materials like hardened steel plates do not deform the tray structure over years of use.

Inventory management transforms from a weekly manual counting exercise into a real-time digital operation. The built-in Warehouse Management System (WMS) supports instant query by batch number, material grade, or incoming date. When a coil or sheet enters the system, scanning automatically assigns a storage location. The accuracy rate reaches 100 percent – no misplaced plates, no double-stacked pallets blocking access, and no expired material sitting forgotten in a corner. For quality-sensitive industries such as automotive stamping or aerospace component manufacturing, this traceability alone justifies the investment.

Integration with enterprise resource planning (ERP) systems comes standard. The Herochu automatic sheet metal storage system pushes inventory updates to your ERP whenever material is added or removed. Production planners can see exactly how many sheets of 2mm stainless steel remain without walking to the warehouse. The system can also connect to MES platforms, enabling automated material requisition based on production schedules. When the laser cutting machine finishes a job, the next sheet type is already staged.

Labor reduction is another measurable benefit. Traditional flat storage of multi-specification sheets often requires two or three dedicated forklift operators plus a material coordinator. The Herochu system allows a single operator to manage multiple towers simultaneously. For unmanned factory operations – often called “black light factories” – the optional robotic handling module performs autonomous loading and unloading. Sheets move from the storage tower to the laser cutting table without any human contact, eliminating both labor costs and the risk of forklift-related accidents.

The application scenario that fits this system best is the high-mix, low-volume production environment. Custom metal fabricators who process dozens of different sheet types each day suffer the most from ground stacking inefficiency. With the Herochu automatic sheet metal storage system, changeover time between materials drops to near zero. The operator selects the next sheet type from the WMS interface, and the system delivers it to the exit station while the current cutting job finishes.

Surface quality protection deserves special attention. Manual handling with lifting clamps or forklift forks inevitably leaves scratches, dents, or edge burrs on sensitive materials like brushed stainless steel, aluminum, or pre-coated sheets. Herochu’s zero-damage handling design eliminates this risk. The extractor mechanism contacts only the bottom edge of the sheet, leaving the top surface untouched. For factories that supply visible exterior panels or decorative architectural metal, this feature reduces scrap rates from surface defects by up to 90 percent.

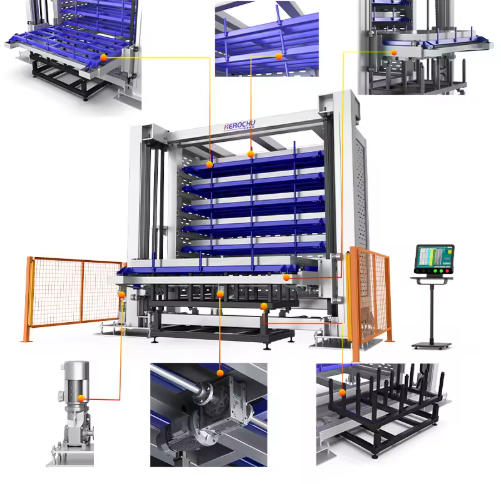

Durability is built into every component. The guide rails undergo precision machining to achieve millimeter-accurate positioning. PLC controllers from leading industrial automation brands ensure maintenance-free operation for years under three-shift production schedules. Limit blocks and optical sensors prevent over-travel, protecting both the stored sheets and the machine structure. Herochu offers a standard warranty on structural components, with extended service contracts available for high-throughput facilities.

To quantify the return on investment: a typical metal fabrication shop with 500 square meters of storage area can reduce that footprint to 125 square meters using vertical towers. That recovered floor space often houses an additional laser cutting machine or secondary operation station. Combined with labor savings of one full-time equivalent employee per shift and reduced material damage, payback periods of 12 to 18 months are common. For new facility construction, the reduced building footprint lowers capital costs substantially.

The automatic sheet metal storage system from Herochu is not a generic warehouse rack. It is a purpose-built solution for sheet metal processing, designed from the ground up to handle the unique challenges of large-format thin sheets, heavy gauge plates, and the need for seamless integration with downstream automation. Whether you operate a job shop, a high-volume stamping plant, or a just-in-time manufacturing cell, this system delivers measurable operational improvements from day one.
