Electric Powered Industrial Steel Sheet Rack – Motorized Full-Extension Drawers up to 20 Tons per Level

Handling heavy steel sheets—particularly those made of 10-gauge, ¼-inch, or thicker plate—presents significant ergonomic and safety challenges. Manual pulling of drawers loaded with several tons of steel is impractical even with the best ball bearing slides. Forklift-based retrieval from static racks requires aisle space, maneuverability, and multiple personnel for sheet separation. Herochu has solved this with the electric powered industrial steel sheet rack, a motorized rollout system that extends and retracts heavy-duty drawers at the push of a button, allowing one operator to safely access steel sheets weighing up to 20 tons per level.

This racking system is engineered for the heaviest industrial applications: steel service centers, shipbuilding yards, heavy equipment manufacturers, and structural fabrication shops. The electric powered design does not compromise on storage density; a single rack can incorporate 6, 8, or even 10 levels depending on ceiling height and sheet thickness. Standard sheet sizes including 3000x1500mm, 4000x1500mm, 6000x1500mm, and 6000x2000mm are accommodated, with custom dimensions available.

How Electric Powered Extension Works

The Herochu electric powered industrial steel sheet rack integrates a heavy-duty linear actuator or ball screw mechanism into each drawer. A control pendant—wired or wireless—allows the operator to select a drawer and command extension or retraction. The motor drives the drawer out at a controlled speed (typically 5-10 meters per minute) until the full 100% extension is reached. Limit switches prevent over-travel, and a safety interlock ensures the drawer cannot extend if the rack is not level or if an obstruction is detected.

Unlike pneumatic systems that require compressed air and can be jerky, the electric drive provides smooth, proportional motion. The operator can feather the control to inch the drawer forward for precise alignment with an overhead crane or magnetic lifter. Once the steel sheet is removed, the drawer retracts automatically or under manual command. The motor also provides braking to hold the drawer in any position, which is useful when only partially extending a drawer to access a sheet near the front.

Load Capacity: Up to 20 Tons Per Level

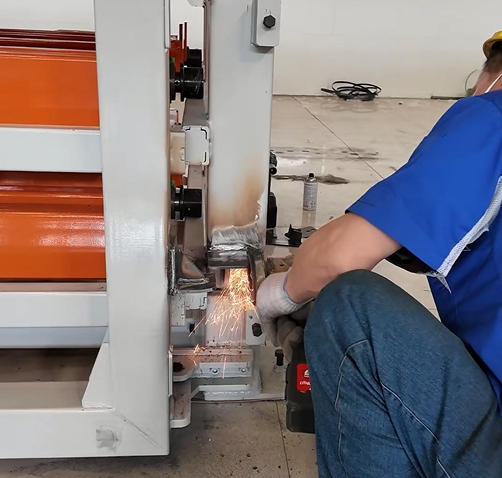

The headline capacity of the electric powered industrial steel sheet rack is 20,000 kg (20 tons) per level. This is not a marketing exaggeration—Herochu builds these racks from high-strength carbon steel with reinforced guide rails and multiple ball bearing carriages per drawer. At 20 tons, the drawer bed itself weighs several hundred kilograms, and the entire assembly remains rigid with deflection measured in millimeters.

For context, a 20-ton capacity drawer can hold a stack of ½-inch (12.7mm) steel plates in 3000x1500mm size. The density of steel is 7.85 g/cm³, so a single plate of those dimensions weighs approximately 280 kg. A full stack of 70 plates reaches 19.6 tons. The electric drive handles this load without strain, drawing peak current only during acceleration from a dead stop.

Lower capacities—1 ton, 5 tons, 10 tons—are also available, and a single rack can be mixed with different capacities on different levels. For example, the bottom two levels rated at 20 tons for thick plate, middle four levels at 10 tons for medium gauge, and top two levels at 5 tons for thin sheet. This mixed configuration maximizes the utility of a single rack footprint.

Industrial Steel Sheet Protection Features

Steel sheets are less scratch-sensitive than aluminum or plastic, but they present other risks: sharp edges that cut operator hands, rust formation if stored in humid conditions, and surface oil transfer. The Herochu electric powered rack includes:

• Inclined supports with replaceable wear strips to prevent sheet sliding

• Optional oil-resistant coatings on drawer beds

• Edge guards that prevent operator contact with sharp sheet corners during retrieval

• Drainage channels if the rack is placed in outdoor or wash-down environments

The full-extension design also reduces the need to drag sheets across each other. With traditional racks, retrieving a buried steel sheet often requires lifting the top sheets off—a dangerous task with heavy material. The electric drawer brings the entire stack into the aisle, and an overhead crane lifts the desired sheet vertically from the top of the stack, leaving the remaining sheets undisturbed.

Energy Efficiency and Maintenance

Herochu engineers the electric drive system for industrial duty cycles. The motor operates only during extension and retraction, which typically takes 10-15 seconds per operation. In a busy shop performing 100 retrievals per day, total motor run time is less than 30 minutes. Power consumption is negligible. The actuator mechanism is sealed and lubricated for life, with inspection ports for annual maintenance checks. Ball bearings in the guide rails are rated for millions of cycles at full load.

Integration with Material Handling Equipment

The electric powered industrial steel sheet rack is designed to work seamlessly with overhead cranes, gantry systems, magnetic lifters, and vacuum manipulators. Because the drawer extends fully into the aisle, the crane hook or magnet can descend directly onto the sheet without offset calculations. Some Herochu customers integrate a laser pointer or camera system on the crane that aligns with fiducial marks on the drawer, enabling semi-automated retrieval.

For facilities with automated guided vehicles (AGVs), the electric rack can be equipped with remote control interfaces (Modbus, Ethernet/IP, or Profinet) so that an AGV can call a drawer, extend it, pick a sheet, and retract without human intervention. This level of automation is typically found only in high-volume operations, but Herochu offers it as a custom option.

Safety Systems Built In

Any rack that moves several tons under power requires redundant safety systems. The Herochu electric powered rack includes:

1. Obstruction detection: If the drawer encounters resistance during extension, it stops immediately and reverses slightly.

2. Overturning prevention: Sliding guide rails and foot roll protection devices are standard. The rack baseplate is designed for bolting to the floor.

3. Emergency stop buttons located at both ends of the rack and on the pendant.

4. Load monitoring: An optional load cell measures drawer weight and prevents extension if the rated capacity is exceeded.

5. Lockout/tagout provisions for maintenance.

All electric racks are CE certified, with ISO9001 documentation for quality systems.

Customization and Delivery

Each electric powered industrial steel sheet rack is built to order with a 30-day delivery cycle. Customizable items include:

• Number of layers: from 5+1 to 10+1 (the +1 indicates a fixed top shelf if needed)

• Single layer height: 220-300mm, adjustable in 10mm increments

• Sheet dimensions: up to 6000x2000mm

• Load capacity per level: 1 to 20 tons

• Rack color: any RAL code

• Extension method: electric (standard), manual pulling (for lower capacities), or automatic (sensor-controlled with inventory system)

Herochu provides free design drawings before production and offers on-site installation worldwide. The professional after-sales team includes remote troubleshooting and spare parts availability for all electric components.

ROI Analysis for Steel Fabricators

Consider a heavy fabrication shop currently storing steel plate on floor pallets and A-frames. Floor storage consumes 2,000 square feet for 200 tons of inventory. Retrieval involves a forklift driver (cost $35/hour)andahelper($25/hour) taking 30 minutes per retrieval. The shop performs 20 retrievals per day. Daily labor cost for material handling is $600.Floorspacecostat$10/sq ft annually is $20,000.

A Herochu electric powered industrial steel sheet rack with 8 levels, each holding 15 tons (total 120 tons) occupies 400 square feet. Two such racks hold 240 tons—exceeding current inventory—in 800 square feet. Floor space savings: 1,200 square feet or $12,000/year.Retrievaltimedropsto5minutesperretrieval,oneoperator.Dailylaborcostdropsto$58 (20 retrievals × 5 minutes × $35/hour).Annuallaborsavings:($600 – $58)\times 250workingdays=$135,500. Combined with space savings, payback occurs in under six months.

Conclusion

The electric powered industrial steel sheet rack from Herochu transforms heavy steel storage from a labor-intensive, high-risk operation into a push-button, single-operator activity. With motorized full-extension drawers rated from 1 to 20 tons per level, accommodation of oversized sheets up to 6000x2000mm, and integration with existing overhead cranes, this rack is the definitive solution for any facility serious about steel plate handling efficiency. Herochu’s engineering rigor—certified by ISO9001 and CE, backed by item-by-item quality inspection—ensures decades of reliable service.
