Heavy-Duty Profile Material Library for Steel Pipes Bars & Profiles

The Definitive Storage Solution for Long Materials

Steel pipes, bars, and profiles are the raw materials of modern industry. They form the structural skeleton of buildings, the framework of machinery, the conduits of energy distribution, and the components of countless manufactured products. Yet for all their importance, these long materials have historically been among the most difficult to store efficiently.

The problem is geometry. Long materials do not fit on standard pallet racks. They require specialized support to prevent bending. They consume disproportionate amounts of floor space when stored horizontally. And their weight makes them dangerous to handle manually.

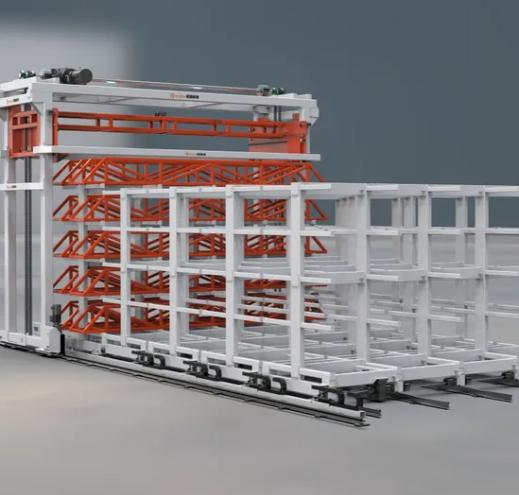

The solution is the Herochu Heavy Duty Long Storage Rack for Steel Pipes, Bars, and Profiles—a system that transforms chaotic floor storage into a digitally managed, multi-level rack structure.

From Horizontal Sprawl to Vertical Density

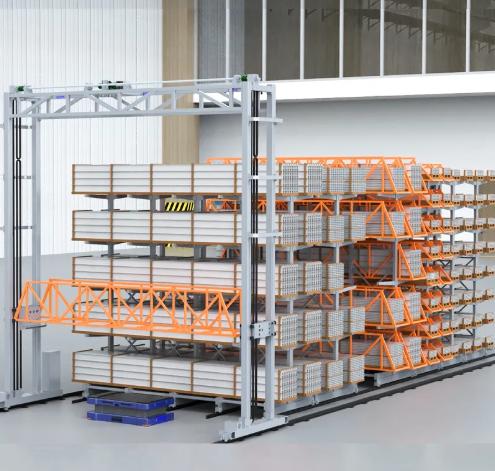

Conventional warehouses using cantilever racks or floor stacking typically achieve storage densities of 1.5 to 2 tonnes per square meter at best. The Herochu system breaks this limitation through a fundamentally different mechanical architecture—one that eliminates fixed aisles in favor of a gantry-operated, multi-depth vertical tower system.

The system replaces horizontal sprawl with vertical density. Instead of spreading materials across thousands of square feet of floor space, the Herochu rack stacks them vertically, making full use of the warehouse’s height. The result is storage density that can reach up to 80% space utilization compared to less than 50% with static racks.

This vertical approach does more than save space. It also protects materials. By storing pipes, bars, and profiles in dedicated positions within the rack structure, the system eliminates the damage that results from floor stacking—crushing, bending, scratching, and contamination.

Versatility Across Material Types

The Herochu Heavy Duty Long Storage Rack is engineered for universal material versatility. It is precisely adapted for the professional storage of heavy-duty pipes, including steel, seamless, and alloy varieties, as well as plates and special-shaped profiles.

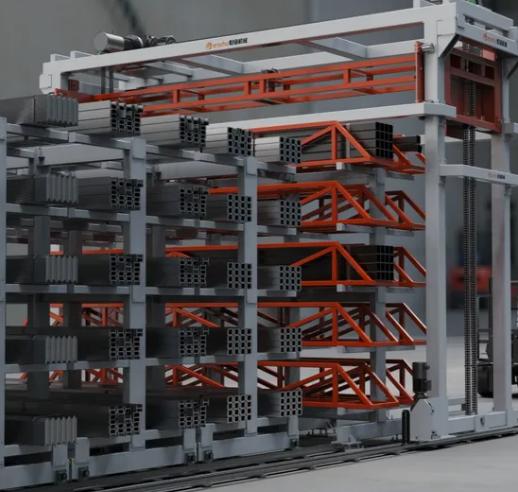

The system efficiently stores single or bundled profiles of various types, sizes, lengths, and weights—pipes, tubes, beams, channels, extrusions. Material frames securely hold individual items or bundled profiles within the racks. Optional profile support systems, including cradles and adjustable arms, ensure stability during storage and transport.

This versatility is critical for facilities that handle diverse material inventories. A single Herochu system can accommodate round pipes, square tubes, I-beams, channel steel, angle steel, and aluminum extrusions—all within the same rack structure, all managed by the same intelligent control system.

Technical Excellence in Every Detail

The technical specifications of the Herochu system reflect its engineering pedigree. Each storage layer is rated for up to 5,000 kg. Positioning repeatability is ±2 mm. The gantry achieves vertical lifting speeds of 5 to 15 meters per minute and horizontal travel speeds of 5 to 30 meters per minute.

The number of storage layers is customizable, typically ranging from 8 to 13 or more. Each grid measures 600 by 500 mm. The storage length of goods extends to 8,000 mm as standard, with customization available for longer materials.

Power requirements are 15 kW at 50Hz or 60Hz. Input voltage can be configured for 220V or 380V. The system’s regenerative drives on the vertical lifting axis recover energy when lowering heavy loads, feeding it back to the common DC bus for improved energy efficiency.

Safety and Reliability as Standard

The Herochu system is integrated with intelligent laser sensors and real-time load monitoring to ensure maximum safety for both equipment and personnel. The fail-safe protection system continuously monitors operational parameters, detecting potential issues before they become problems.

This focus on safety extends to the system’s mechanical design. The gantry structure is fabricated from high-strength steel trusses, with the truss design minimizing weight while maximizing stiffness—essential for positioning accuracy under varying loads. External protective sheet metal safeguards internal components and provides a clean, professional aesthetic aligned with modern factory safety standards.
