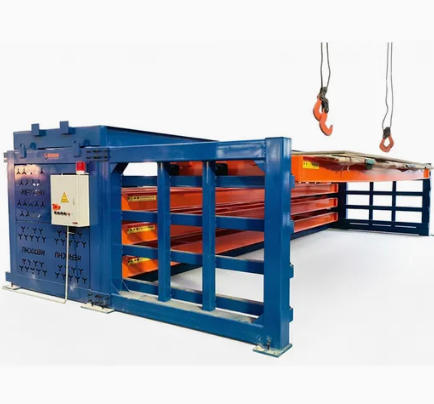

Crank-Out Drawer Sheet Rack Design

When dealing with heavy loads, the mechanics of movement become the defining factor in usability. A Crank-Out Drawer Sheet Rack Design represents the pinnacle of mechanical advantage applied to industrial storage. This article delves into the engineering specifics that make the Herochu crank-out system a superior choice for storing heavy steel plates and sheet metal.

Category Sheet metal Storage Rack design Tag Crank-Out Drawer Sheet Rack Design

Crank-Out Drawer Sheet Rack Design

Understanding the Crank-Out Mechanism

The primary challenge in heavy-duty storage is friction. When a drawer holds 10 tons of steel, the force required to slide it out on traditional rails can be immense, often requiring forklift assistance or excessive manual force. Herochu’s Crank-Out Drawer Sheet Rack Design solves this through a specialized geared mechanism.

This mechanism translates rotational force (torque) from the hand crank into linear motion. The result is a system where fully loaded drawers can be opened with as little as 20 lbs of torque. This is a significant reduction in effort—approximately 20% less than a standard pull-out drawer with the same load. This mechanical advantage makes the system accessible to all workers, regardless of their physical strength.

Material Preservation through Independent Support

One of the distinct advantages of the drawer design is the protection it offers to the stored material. In a Crank-Out Drawer Sheet Rack Design, each sheet rests on a dedicated, flat surface. There is no stacking. This design choice effectively solves problems such as surface scratches, pits, and bending deformation.

For industries working with polished stainless steel or pre-painted aluminum, surface finish is everything. The Herochu rack features an anti-slip design that prevents plates from sliding during the opening and closing of the drawer, further minimizing the risk of cosmetic damage. By preserving the integrity of the raw material, the rack directly contributes to lower production costs and reduced waste.

Versatility in Load and Size

Herochu understands that not all fabrication shops handle the same materials. Therefore, the crank-out design is highly adaptable. The racks can accommodate material sizes ranging from smaller 5’ x 10’ sheets to massive 6m x 12’ plates.

The load-bearing capacity is equally impressive. With single-layer capacities reaching up to 10 tons, these racks are built for the most demanding environments. The all-steel structure ensures high strength and rigidity. The uniform force distribution across the drawer prevents the bending or warping of the rack itself, ensuring a long service life even under constant heavy use.

Powered Options for Automation

For shops looking to push the boundaries of efficiency, Herochu offers a Powered Drawer Option. This automation removes the human element from the opening process entirely. With a simple push of a button, the heavy drawers glide open. This is particularly useful in environments where speed is critical or where safety regulations demand minimal physical interaction with heavy loads.

Enhancing Workflow with FIFO

The drawer design naturally facilitates the First-In, First-Out (FIFO) inventory management principle. Because every sheet is visible and accessible from the top, operators can easily select the oldest stock for processing. This prevents plates from sitting in the back of a pile for years, where they might accumulate rust or become obsolete. By improving the turnover rate of inventory, the Crank-Out Drawer Sheet Rack Design helps maintain a healthy, active stock of materials.

Conclusion

The Crank-Out Drawer Sheet Rack Design is more than just a storage unit; it is a precision tool for material handling. By combining mechanical advantage with robust construction, Herochu provides a system that protects materials, reduces labor effort, and integrates smoothly into high-volume fabrication workflows.
