6-Meter Long Steel Pipe Storage Rack – Heavy Duty Cantilever Solution

When handling tubular materials that extend beyond standard warehouse dimensions, conventional pallet racks or shelving units often prove inadequate. The risk of bending, surface damage, or workplace accidents increases significantly when long steel pipes are stored improperly. Herochu has engineered a dedicated solution for this exact challenge: the 6-meter long steel pipe storage rack, built on a cantilever architecture that redefines how metal service centers, steel mills, and large fabrication shops manage their inventory.

The fundamental advantage of a cantilever-based 6-meter long steel pipe storage rack lies in its unobstructed horizontal arm design. Unlike upright frame systems that block end-loading, the Herochu cantilever configuration allows overhead cranes or forklifts to place 6-meter pipes directly onto the arms from the side or front. This single feature reduces loading time by nearly 40% compared to vertical racks, as confirmed by time-motion studies conducted at Herochu’s in-house testing facility.

Herochu’s model series includes the G6053S (single-sided) and G6053D (double-sided), both purpose-built for 6-meter pipe lengths. The external dimensions for the G6053S are 3505mm in length, 2280mm in height, and 2000mm in width, while the double-sided G6053D expands the width to accommodate access from both aisles. Each arm on these units supports a load capacity ranging from 1 ton to 8 tons per layer, with standard factory settings at 3 tons for the G6053 series. The interlayer spacing comes standard at 500mm but can be fully customized based on the diameter of the pipes being stored and the height clearance of the facility.

Structural integrity is non-negotiable for any 6-meter long steel pipe storage rack. Herochu fabricates all upright columns from high-tensile steel coils, processed through fully automated CNC punching lines. These precision holes allow arm height adjustments in 400mm to 600mm increments, enabling warehouse managers to reconfigure the rack as inventory changes. The arms themselves are cold-bent from heavy-gauge steel and reinforced with triangular support gussets – a design that distributes the point load of each steel pipe across a wider base, preventing arm deflection even at maximum 5-ton loads per arm.

From a quality assurance perspective, every Herochu 6-meter long steel pipe storage rack undergoes a seven-step manufacturing protocol. Robotic welding lines ensure consistent penetration at all load-bearing joints, eliminating the variability of manual welding. After welding, each unit passes through an automated electrostatic spraying line where a corrosion-resistant epoxy-polyester powder coating is applied. Standard colors are industrial orange and blue, but any RAL color can be customized. The coating thickness is tested with eddy current gauges to guarantee a minimum of 80 microns on all exposed surfaces.

Safety features integrated into the 6-meter long steel pipe storage rack include anti-roll lips at the end of each cantilever arm. These raised edges prevent pipes from sliding off during loading or seismic events. For warehouses that store mixed diameters, optional PVC label holders can be attached to each arm level, allowing clear identification of pipe dimensions and grades. The base of the cantilever rack is designed with floor-mounting plates that accept expansion anchors, ensuring stability under full dynamic loads.

When comparing the Herochu cantilever design to other storage methods for 6-meter pipes, the technical advantages become evident. A vertical pipe rack of similar length would require a bay depth exceeding 1.5 meters and would limit access to one side only. In contrast, the double-sided cantilever configuration achieves 60% space utilization efficiency while allowing two-way access. For steel mills that process pipes between 6 and 12 meters, Herochu offers extended models such as the G9055D (9-meter capacity) and G1255D (12-meter capacity), but the G6053 series remains the most popular choice for standard 6-meter inventory.

Real-world applications for this 6-meter long steel pipe storage rack include structural steel fabricators, oilfield tubular suppliers, and irrigation pipe distributors. One Herochu client, a Midwest steel service center, reported a 35% reduction in pipe damage claims after switching from floor storage to the G6053D double-sided system. The ability to store 6-meter pipes vertically without bending also improved their inventory accuracy, as each arm level could be dedicated to a specific grade or diameter.

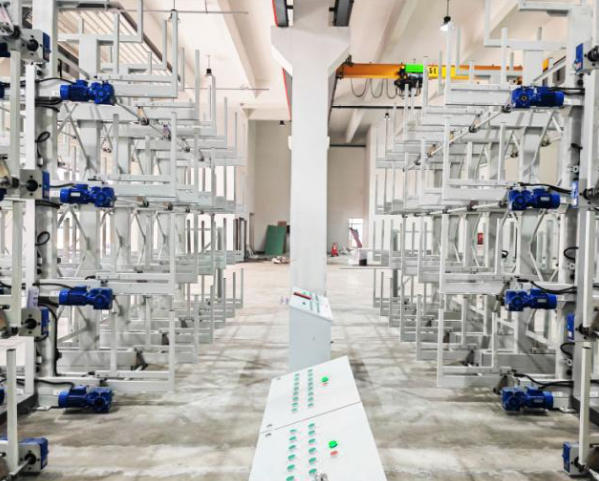

Customization options extend beyond dimensions. Herochu can equip the 6-meter long steel pipe storage rack with motor-controlled arm movement for automated retrieval, or hand-operated mechanisms for manual warehouses. Special raw materials, such as galvanized steel for corrosive environments or stainless steel for food-grade pipe storage, are available upon request. The layer count is not fixed either – factory height determines how many tiers can be installed, with typical configurations offering 3 to 5 levels.

In summary, the Herochu 6-meter long steel pipe storage rack represents a category-leading solution for any operation that regularly handles tubular goods of this length. Its cantilever design, adjustable arms, high per-arm load capacity, and rigorous manufacturing standards make it a reliable, long-term investment. For warehouses seeking to maximize vertical space while maintaining safe, damage-free storage of long steel pipes, this rack system delivers measurable operational improvements.
