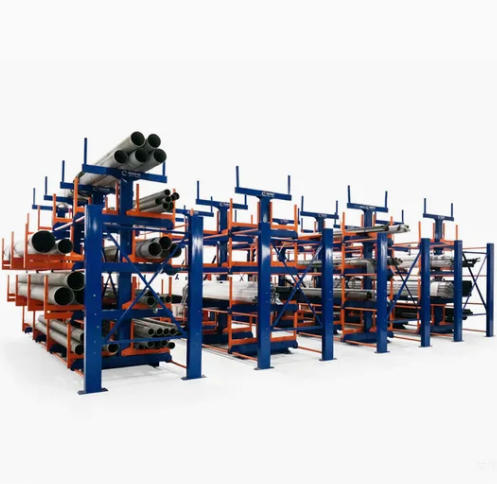

Heavy Duty Hand Cranked Long Pipe Rack – Industrial Crank-Out Cantilever Rack by Herochu

When operations involve long, bulky materials such as steel pipes, aluminum profiles, bars, or conduits, conventional pallet racks or floor stacking methods quickly become inefficient and hazardous. The Herochu Heavy Duty Hand Cranked Long Pipe Rack offers a purpose-built engineering solution that transforms how industrial facilities handle extended-length inventory. Designed as a true Crank Out Cantilever Rack, this system eliminates the need for manual dragging, overhead crane maneuvering into tight spaces, or dangerous balancing acts. Instead, a precisely engineered hand-crank mechanism extends fully loaded cradle arms outward, providing 100% extension for direct overhead crane or forklift access.

The core advantage of a Hand Cranked Pipe Rack lies in its ability to store materials horizontally while retrieving them vertically. Traditional cantilever racks require wide aisles and long-reach forklifts, which consume valuable floor space. Herochu re-engineered this concept by integrating a crank-type movement that brings the stored material to the aisle, rather than forcing equipment into the rack. With a single-side or double-side assisted movement mode, the rack arms glide outward smoothly, even under a single-layer load of 3 to 8 tons. This capability makes the Crank Type Pipe Rack indispensable for facilities with limited aisle width or those using overhead cranes as their primary handling method.

The structural integrity of the Heavy duty Hand-cranked Crank-Out Rack from Herochu starts with its carbon steel frame. The bottom floor height is set at 330 mm from ground level, a calculated dimension that allows pallet jacks or low-profile forklifts to pass underneath while maintaining a low center of gravity for stability. Number of layers ranges from 4 to 12, fully customizable based on your typical pipe diameters and ceiling height. Each layer’s arm depth and capacity follow rigorous engineering standards: 20-inch arms support up to 6,600 lbs per arm, 24-inch arms hold 5,600 lbs, 30-inch arms rate at 4,800 lbs, and 36-inch arms manage 4,200 lbs. These ratings are not theoretical maximums – they are working load limits validated through cycle testing at Herochu’s manufacturing facility.

Color options include standard white, blue, or custom shades to match your facility’s visual workflow or safety zone markings. More importantly, the Hand Cranked Tube Storage Racks feature adjustable stock dividers, either all-welded or configurable, to separate different diameters, grades, or work orders on the same rack. This modularity extends to the uprights: customers can specify one, two, three, or four upright columns to support material lengths from 8 feet up to 40 feet in one-foot increments. For spans exceeding 20 feet, intermediate supports add rigidity and prevent deflection.

Why choose a hand-cranked design over hydraulic or electric alternatives? Herochu’s engineering team emphasizes reliability and independence. Hydraulic systems leak; electric actuators fail during power outages or require motor maintenance. A Industrial Crank-Out Pipe Rack with a manual crank mechanism works anywhere, anytime, with zero reliance on external power sources. The crank gear ratio is calculated so that a single operator can extend and retract a fully loaded arm with reasonable effort – typically requiring less than 30 lbs of force at the handle. Locking pins at full extension and full retraction positions prevent accidental movement during loading or unloading, adding a fail-safe layer that automated systems sometimes lack.

In terms of versatility, the Heavy duty pipe storage Rack accommodates not only pipes and tubes but also round bars, square tubes, flat bars, channels, angles, beams, sheets, plates, rails, and shafts. The arms can be lined with UHMW (ultra-high molecular weight polyethylene) to protect sensitive materials like polished aluminum profiles or coated pipe from scratches. This feature is particularly valuable in aluminum profile processing and high-end metal fabrication shops.

Herochu builds each Hand Cranked Pipe Racks and Storage Systems to order. Standard lead times vary based on configuration complexity, but the company’s modular design approach reduces fabrication time. For large-scale projects, multiple units can be arranged back-to-back (double-sided cantilever) or in parallel rows with shared aisles. The double-sided configuration effectively doubles storage density per floor footprint, as arms extend to both sides of a central upright column.

Safety remains the foremost design criterion. Every Crank Out Cantilever Rack undergoes a stability analysis that considers seismic zones, floor flatness, and maximum eccentric loading. The crank mechanism includes an automatic brake that prevents reverse rotation if the operator releases the handle prematurely. Additionally, the arm end stops – vertical steel pieces at the tips – come in heights of 12 or 15 inches standard, with custom heights from 8 to 24 inches in one-inch increments. These stops ensure that even if a pipe shifts during extension, it cannot roll off the end.

For maintenance, Herochu provides a simple lubrication schedule for the crank gearbox and roller bearings. Typical service intervals are 500 cycles or six months, whichever comes first. Replacement parts – handles, gears, locking pins, and UHMW liners – are stocked and ship within 48 hours. This commitment to after-sales support makes Herochu a preferred vendor among steel pipe manufacturers, heavy machinery builders, shipyards, and metal fabrication plants.

In summary, the Heavy Duty Hand Cranked Long Pipe Rack from Herochu delivers a unique combination of load capacity, space efficiency, and operational safety. It replaces dangerous manual handling with a controlled, crank-operated movement that works seamlessly with overhead cranes. For any facility storing long, heavy materials, this Industrial Crank-Out Pipe Rack represents a long-term investment in worker safety and inventory organization.
