Heavy-Duty Hand-Cranked Bar and Pipe Racks

Industrial Crank-Out Pipe Racks for Heavy Steel Pipe Storage

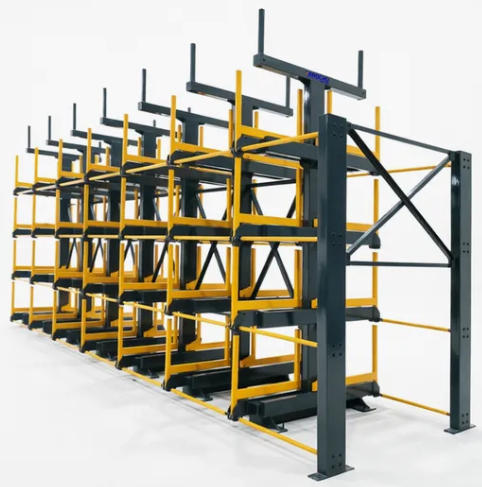

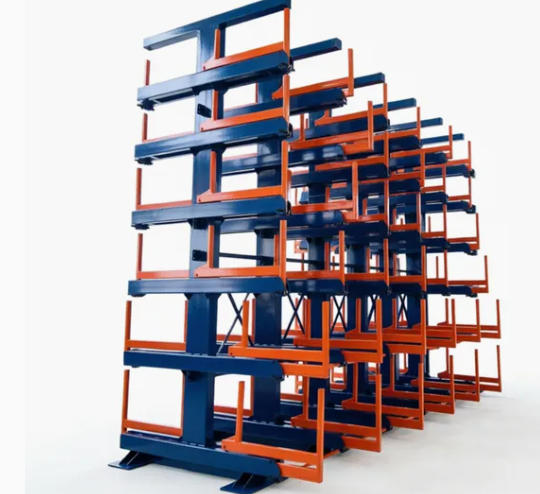

Crank Type Pipe Rack with Adjustable Cantilever Arms – Herochu Heavy Duty Pipe Storage Rack

Heavy-Duty Hand-Cranked Bar and Pipe Racks

In the demanding environment of modern industrial warehousing, the efficient storage of long, bulky, and heavy materials is a constant challenge. Whether dealing with steel pipes, aluminum profiles, or solid bar stock, traditional stacking methods often lead to safety hazards, inventory disorganization, and wasted floor space. This is where the Heavy-Duty Hand-Cranked Bar and Pipe Racks from Herochu revolutionize the workflow. Designed with precision engineering and robust materials, these racks are not merely storage units; they are active productivity tools that streamline operations in manufacturing plants, shipyards, and distribution centers.

Category Hand Cranked Pipe Rack Tag Heavy-Duty Hand-Cranked Bar and Pipe Racks

Heavy-Duty Hand-Cranked Bar and Pipe Racks

The core philosophy behind the Herochu crank-out system is accessibility. In many standard warehouses, materials stored at the back of a deep rack are often difficult to reach, requiring complex maneuvering of forklifts or dangerous climbing by workers. The hand-cranked cantilever system eliminates this issue entirely. By utilizing a smooth, mechanical crank system, operators can extend the storage arms outward, bringing the load directly to the aisle. This “pull-to-you” mechanism ensures that even the heaviest loads, weighing several tons per layer, are accessible without the need for heavy machinery to reach deep into the racking structure.

Unmatched Durability and Construction

At the heart of the Herochu brand is a commitment to longevity. These racks are constructed from high-grade carbon steel, a material chosen for its exceptional tensile strength and resistance to deformation under stress. Unlike lighter shelving units that may bow or warp over time, the Heavy-Duty Hand-Cranked Bar and Pipe Racks are built to maintain their structural integrity year after year. The welding is performed with industrial precision, ensuring that every joint can withstand the rigors of daily loading and unloading.

The finish of the racks is equally impressive. Available in standard white or blue, or customized to match specific facility safety codes, the powder-coated surface provides a barrier against corrosion, rust, and minor abrasions. This is particularly vital in environments where metal pipes might scrape against the rack during loading. The coating ensures that the aesthetic and functional life of the rack is preserved, even in harsh conditions typical of steel pipe manufacturing or outdoor storage yards.

Customization for Every Application

No two warehouses are identical, and Herochu understands that flexibility is key. The Heavy-Duty Hand-Cranked Bar and Pipe Racks are fully customizable. Clients can specify the number of layers, ranging from 4 to 12, depending on the ceiling height of their facility and the volume of inventory they need to store. Furthermore, the load-bearing capacity is substantial, with single layers capable of supporting between 3 to 8 tons. This makes the system suitable for the heaviest industrial applications, from large-diameter oil pipes to dense solid steel bars.

The versatility extends to the types of materials stored. While optimized for pipes and tubes, these racks are equally effective for storing angles, channels, beams, and even sheet metal. The adjustable nature of the arms allows for the segregation of different inventory types, ensuring that a bundle of copper tubing is kept separate from steel conduits. This organization reduces retrieval times and minimizes the risk of material damage caused by contact between dissimilar metals.

Safety and Ergonomics

Safety is the paramount benefit of switching to a crank-out system. In traditional static racking, workers often have to overreach to secure loads or attach crane hooks. This behavior is a leading cause of warehouse injuries. With the Herochu hand-cranked system, the load is brought to a safe, ergonomic working position. The operator can stand clear of the falling zone while extending the arms, attach the overhead crane or forklift tines, and then retract the arms if necessary to clear the path.

Additionally, the system includes safety locking mechanisms. Once the arms are extended or retracted, they can be secured to prevent accidental movement during the loading process. This stability is crucial when handling irregular shapes that might shift or roll. By reducing the physical strain on workers and eliminating the need for risky maneuvers, Herochu racks contribute to a safer, more compliant workplace.

Optimizing Vertical Space

Floor space is expensive real estate in any industrial setting. The design of the Heavy-Duty Hand-Cranked Bar and Pipe Racks maximizes vertical utilization. By stacking storage levels up to 12 layers high, facilities can store significantly more material in the same footprint compared to ground stacking. The bottom floor height is optimized at 330mm from the ground, allowing for easy cleaning underneath and preventing ground moisture from affecting the lowest tier of goods.

In conclusion, for businesses looking to upgrade their storage infrastructure, the Herochu Heavy-Duty Hand-Cranked Bar and Pipe Racks offer a blend of strength, safety, and smart design. They transform chaotic piles of metal into organized, accessible, and secure inventory, driving efficiency across the entire supply chain.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.

Customer visit

Herochu has always been adhering to the market-centric approach to meet customer requirements to the maximum extent, and the business philosophy of “creating brands with heart and gaining reputation with sincerity”. It provides customers with high-quality products and services with rigorous military quality, professionalism, and excellence, and has won unanimous praise in the Chinese aerospace, Chinese weapons, Chinese railways, automobile manufacturing, engineering machinery, non-ferrous metal titanium alloy and other industries.
