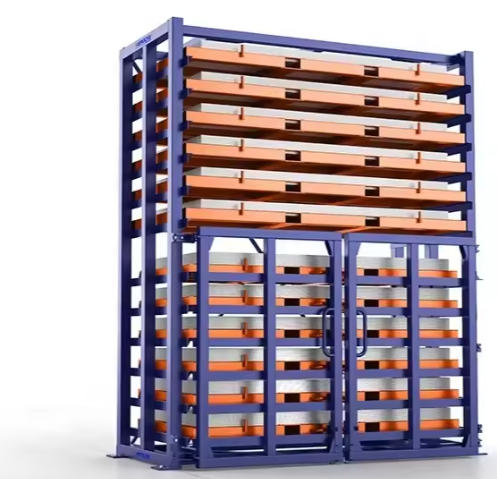

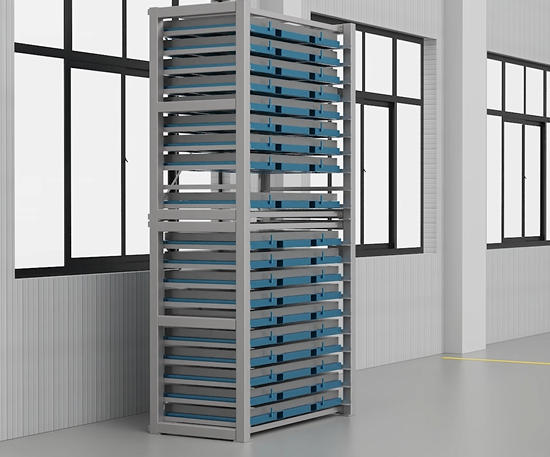

Forklift Plate Rack – Herochu Adjustable Carbon Steel Storage up to 2,000 mm Height

Herochu Forklift Plate Rack: Industrial-Strength Vertical Storage for Heavy-Gauge Sheets

When warehouses and fabrication shops handle thick steel plates, aluminum tooling plates, or stainless steel blanks, two problems dominate: floor space exhaustion and inefficient retrieval. The Herochu Forklift Plate Rack solves both by leveraging vertical architecture and dedicated forklift-accessible drawers. Built from heavy-duty carbon steel with a powder-coated finish, this rack series supports single-layer loads of 2–6 tons and reaches a maximum height of 2,000 mm. Unlike static pallet racks that cannot handle long, flat materials, the Herochu design allows a forklift driver to directly engage any layer, pull it forward, and transport plates without manual assistance or secondary handling equipment. This article details the technical specifications, application advantages, and customization options of the Herochu Forklift Plate Rack.

Structural Specifications and Model Variants

Herochu engineers three standard Forklift Plate Rack models to cover the most common sheet dimensions:

All models feature adjustable layer spacing from 50 mm to 200 mm, accommodative of sheet thicknesses ranging from 0.5 mm to 50 mm. The card slot assembly method means no bolts or welding: each layer support snaps into pre-punched columns, allowing height reconfiguration in minutes. The base frame includes pre-drilled anchor points for floor mounting, a critical safety feature when storing dense materials like steel plates (up to 7.85 kg per mm of thickness per m²). Single package dimensions for export are 300×160×180 cm, with a gross weight of 2,000 kg per rack – a testament to the robust carbon steel construction.

Forklift-Accessible Drawer Mechanism – A Deeper Look

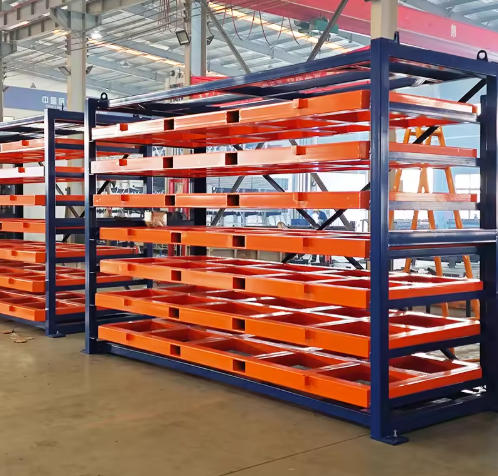

The defining innovation of the Herochu Forklift Plate Rack is its true forklift-accessible drawer system. Each layer is not a fixed shelf but a sliding platform with integrated fork pockets. When a forklift driver approaches, the forks enter the pockets of the desired layer. A smooth forward pull extends the full layer outward on low-friction, hardened steel guides. The extended drawer positions the sheet’s edge within 300 mm of the rack’s front plane, allowing the forklift to reposition forks under the plate itself. The driver then lifts the sheet free and backs away. No other lifting aids, cranes, or manual carts are required. This mechanism works with all common forklift types: counterbalance, reach truck, and even rough-terrain forklifts. The drawer movement is engineered to require less than 150 N of initial pull force per ton of plate weight, ensuring smooth operation even with a 2-ton load.

Material Handling Efficiency: Labor Hours and Forklift Utilization

In conventional plate storage, each sheet retrieval involves multiple steps: locating the plate in a floor stack, attaching slings or clamps, using an overhead crane, then transporting. A single retrieval can take 10–15 minutes. With the Herochu Forklift Plate Rack, the same task takes under two minutes. The forklift operator never dismounts. The rack’s layout allows direct line-of-sight to all stored plates, eliminating search time. For a shop handling 50 plates per shift, this saves over 600 minutes (10 hours) of labor daily. Additionally, because the rack stores plates vertically with individual separation, there is no need to restack or re-sort after partial retrieval. The remaining plates stay exactly where they are, ready for the next order. Herochu customers in heavy equipment manufacturing report a 35% improvement in overall forklift utilization after switching from floor storage to the Forklift Plate Rack.

Powder Coating and Environmental Durability

Industrial storage racks face corrosive environments: metal dust, cutting fluids, humidity, and temperature swings. Herochu applies a thermosetting powder coating to all exposed carbon steel surfaces. The coating thickness averages 80–100 microns, providing excellent resistance to chipping and scratching. Standard colors include blue, black, white, red, and orange. Orange is particularly popular for high-visibility safety zones. For outdoor or wash-down applications, Herochu offers an optional marine-grade epoxy coating. The powder coating process eliminates volatile organic compounds (VOCs), aligning with environmentally responsible manufacturing practices. Combined with the carbon steel’s inherent strength, a Herochu Forklift Plate Rack delivers a service life exceeding 15 years under normal industrial use.

Custom Engineering for Non-Standard Applications

While the three standard models cover most sheet dimensions, Herochu’s engineering department regularly produces custom Forklift Plate Racks. Common modifications include:

• Extra-long layers up to 3,200 mm for shipyard plates or aerospace extrusions.

• Adjustable load ratings per layer – not all layers need the same capacity. Herochu can design racks where bottom layers handle 5 tons and upper layers handle 1 ton.

• Mixed format storage – some layers configured for widthwise access, others for lengthwise access.

• Integrated backstops to prevent plates from sliding rearward during drawer insertion.

• Retractable casters for semi-portable applications where the rack needs occasional repositioning.

The brand Herochu has delivered custom Forklift Plate Racks to automotive stamping plants, railway component fabricators, and even art glass storage facilities. The consultation process begins with a simple data exchange: sheet dimensions, maximum weight per sheet, number of distinct materials to store, and available floor space. Herochu’s technical team then produces a 3D CAD layout and load simulation report.

Safety Certifications and Factory Testing

Every Herochu Forklift Plate Rack is CE certified and manufactured under ISO9001:2015 quality management. Before shipment, each rack undergoes a static load test at 110% of the rated single-layer capacity. Deflection is measured at the center of each layer and must not exceed L/300 (where L is layer length). For the HC-F4015-73, this means a deflection below 13.3 mm under 3.3 tons – well within safe elastic limits. The racks also pass a stability test with the heaviest layer fully extended while the rack is unanchored (though anchoring is always recommended). Herochu provides a signed test certificate with every unit. For on-site verification, clients can request witnessed load testing after installation.

Installation and Global Deployment

Herochu offers two installation options: detailed assembly drawings and video guides for in-house assembly, or a full turnkey service where a Herochu field engineer oversees installation and operator training. The turnkey service is strongly recommended for first-time buyers or large multi-rack projects. Herochu’s global service team has successfully deployed Forklift Plate Racks in South Africa, the United States, Russia, South Korea, Qatar, Egypt, Lebanon, and Mexico. Typical on-site installation for a single rack takes four hours, including anchoring, layer adjustment, and demonstration of safe forklift operation. For integrated systems that combine a Forklift Plate Rack with a loading robotic arm or material exchange platform, installation may extend to two days, including software calibration.

Frequently Asked Questions – Herochu Expert Answers

Q: Can the rack be used for non-metallic sheets?
A: Yes. Herochu Forklift Plate Racks store plywood, MDF, plastic panels, composite decking, and rubber sheets equally well. Specify the material density during quoting for optimal layer spacing.

Q: What if I need to store plates longer than 4,000 mm?
A: Herochu designs custom lengths. Provide the exact maximum plate length, and engineers will extend the frame and drawer guides accordingly.

Q: Does the rack require special forklift attachments?
A: No. Standard 100 mm-wide forks with a length of 1,200 mm to 1,500 mm work perfectly. The fork pocket design accepts all common fork cross-sections.

Q: Is the rack foldable for seasonal storage?
A: Yes. The detachable construction allows the rack to be collapsed into a flat bundle. However, repeated assembly/disassembly is not recommended for daily operations.

To summarize, the Herochu Forklift Plate Rack transforms chaotic floor stacks into organized, accessible, and safe vertical storage. Contact Herochu via WhatsApp, WeChat, or email with your sheet specifications for a customized proposal and pricing.
