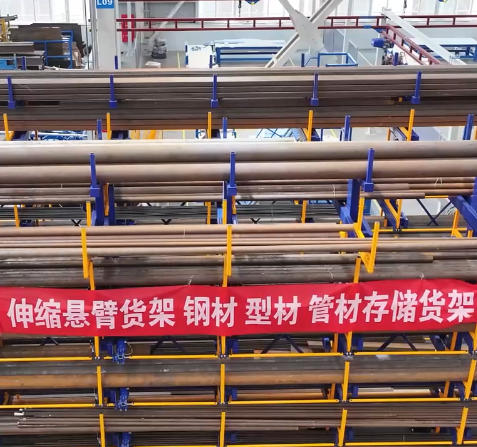

Telescopic Arms Carbon Steel Industrial Long Pipe Steel Bar Storage System by Herochu

Storing long pipes, steel bars, and structural sections presents a persistent logistics puzzle. Traditional cantilever racks, while effective for standard lengths, still require wide forklift aisles to access arms that project perpendicular to the aisle. Herochu solves this spatial inefficiency with an advanced configuration: the Telescopic Arms Carbon Steel Industrial Long Pipe Steel Bar Storage System. This design incorporates retractable cantilever arms that extend outward for loading and retract back toward the upright column for storage, dramatically reducing the required aisle width. By combining telescopic motion with heavy-duty carbon steel construction, Herochu delivers a storage solution that increases floor space utilization by eliminating the need for full arm projection during idle periods.

Engineering of Telescopic Cantilever Arms

The core innovation in this system lies within the telescopic arm assembly. Each arm consists of two or three nested carbon steel sections, with the outermost (fixed) section bolted to the upright column, and the inner sections sliding on precision-machined guide rails fitted with low-friction polymer bearings. Herochu fabricates these sections from hot-rolled carbon steel with a minimum yield strength of 355 MPa, ensuring that even when fully extended the arm maintains its load rating without excessive deflection. A mechanical locking mechanism engages automatically when the arm reaches full extension, preventing accidental retraction during loading. Operators release the lock via a foot pedal or manual lever after the pipe or bar is removed, allowing the arm to slide back into its compact position.

Load capacity for telescopic arms varies with extension length. In the fully retracted position, the arm can support the same load as a fixed arm of equivalent section—up to 2,500 kg in Herochu’s highest-rated models. However, when extended, the cantilever moment increases, so Herochu provides graduated load charts that specify safe working loads at 50%, 75%, and 100% extension. For typical long pipe storage applications, a 1,500 mm telescopic arm might be rated for 1,200 kg at full extension and 2,000 kg when retracted. This trade-off is acceptable because the heaviest loads are often the shortest pieces, while long, lightweight pipes or aluminum bars place minimal demand on the arm structure. Herochu performs finite element analysis using Ansys to optimize the telescopic geometry, ensuring that stress concentrations at the section overlap points remain within safe limits.

Operational Workflow and Space Savings

Implementing the telescopic arms carbon steel industrial long pipe steel bar storage system changes the fundamental layout of a warehouse aisle. In a conventional fixed-arm cantilever rack, the aisle must accommodate the full arm length plus forklift turning clearance. For a typical 1,200 mm arm, this might require a 3,500 mm aisle. With telescopic arms that retract to 400 mm when not in use, the same aisle can be narrowed to 2,200 mm—a reduction of nearly 40%. For warehouses with high land costs or limited building dimensions, this reclaimed space translates directly into additional storage rows or improved traffic flow.

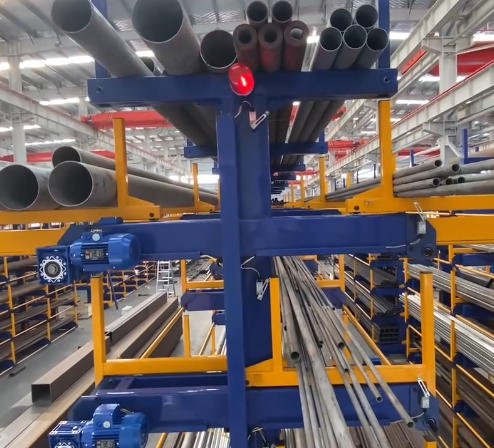

The operational sequence is straightforward. A forklift operator positions the forks in front of the target storage bay. The operator or an automated control system extends the telescopic arms to the required length using a manual crank, hydraulic assist, or PLC frequency-controlled motorization. For heavier loads, Herochu recommends the optional hydraulic telescopic drive, which synchronizes multiple arms on the same level to extend together, maintaining level support for long pipes. Once arms are extended, the operator places the steel bars or pipes across the arms, with the load spanning the gap between two adjacent arms on the same level. After the forks withdraw, the operator retracts the arms, pulling the stored material closer to the upright column and clearing the aisle for subsequent traffic. Retrieval reverses the sequence: extend arms, lift the load, retract arms, and depart.

Herochu’s telescopic system excels in environments where multiple product lengths are stored. For a steel service center handling bars from 3,000 mm to 12,000 mm, fixed arms must be spaced sufficiently far apart to support the longest bars, which wastes space when storing shorter bars. With telescopic arms, the storage length is effectively adjustable per bay. Shorter bars can be placed on arms that are only partially extended, while longer bars occupy bays where arms extend fully. This flexibility eliminates the wasted gaps that plague conventional racking. Herochu customers report increasing storage density by over 150% after converting from fixed-arm cantilever racks to telescopic systems.

Integration with Overhead Cranes and Automation

The telescopic arms carbon steel industrial long pipe steel bar storage system from Herochu integrates seamlessly with overhead bridge cranes and gantry cranes. Because telescopic arms retract close to the upright, the horizontal clearance between facing racks increases, allowing crane hooks and lifting beams to pass without snagging. This feature is particularly valuable for handling extremely long pipes (over 12,000 mm) that cannot be maneuvered easily with forklifts. In a crane-served configuration, the racks are arranged in parallel rows, and the crane operator extends the telescopic arms from a control pendant or remote station, then lowers the lifting sling around the bundle of pipes. After the load is lifted clear, the arms retract, and the crane moves the load laterally out of the bay. This method eliminates the need for forklifts entirely, reducing labor costs and improving safety in environments where heavy, unbalanced loads are common.

For facilities pursuing Industry 4.0 initiatives, Herochu offers integration with warehouse management systems (WMS) through PLC frequency-controlled arm actuation. Each telescopic arm position can be monitored via linear encoders, and the WMS can direct operators or automated vehicles to the exact bay, level, and extension length required for a specific SKU. Real-time inventory tracking becomes possible because the system records when arms are extended or retracted, inferring load presence or absence. Herochu’s engineering team provides free design drawings that incorporate these automation features, ensuring that the telescopic arms carbon steel industrial long pipe steel bar storage system meets both current operational needs and future scalability.

Durability and Maintenance

Carbon steel construction combined with Herochu’s powder-coat finishing provides exceptional resistance to abrasion, impact, and corrosion. The telescopic mechanisms are protected by wiper seals that remove dust and metal shavings from the sliding surfaces during each extension-retraction cycle. Herochu recommends a semi-annual lubrication schedule using lithium-based grease applied to the guide rails, which takes approximately two hours for a 20-bay system. All bearings, locking mechanisms, and hydraulic components (if equipped) are sourced from industrial-grade suppliers and are replaceable individually without removing the entire arm assembly. With proper maintenance, the telescopic arms operate reliably for over 50,000 cycles, equivalent to 20 years of daily use in a three-shift operation. Herochu backs every system with a professional after-sales team providing exclusive one-on-one service, including remote diagnostics and on-site repair when necessary.
