Compact Sheet Metal Storage Solution for Narrow Workshops

Solving Storage Constraints in Limited-Footprint Workshops

Not every fabrication shop has the luxury of expansive floor space. Job shops, contract fabricators, and small-batch production facilities often operate in buildings where every square meter is allocated to machines, assembly areas, or shipping zones. In these environments, sheet metal storage becomes an afterthought—plates lean against walls, stack on the floor behind machinery, or occupy the only open bay needed for material handling.

Herochu’s compact sheet metal storage rack is engineered for these constrained spaces. The drawer-type design installs in narrow bays, against perimeter walls, or between existing machines, converting previously unusable areas into organized, accessible sheet storage.

Compact Footprint Design

The Herochu compact rack occupies a floor area of approximately 20 m² for a standard 6-tier configuration. This footprint is comparable to a single parking space—yet it stores the same sheet inventory that would require 100 m² of ground stacking.

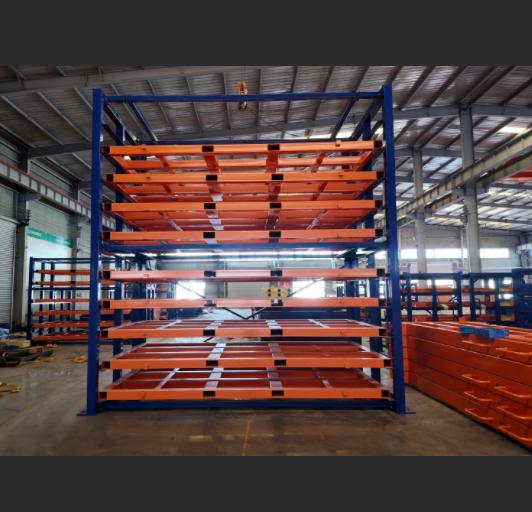

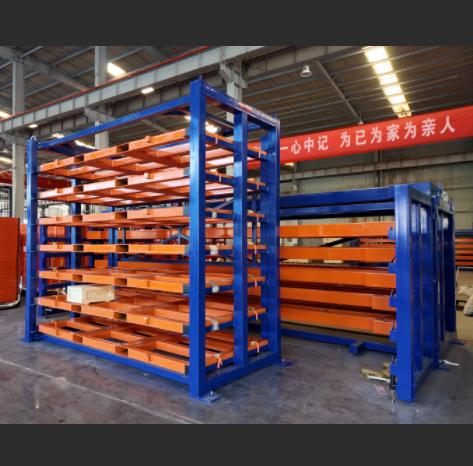

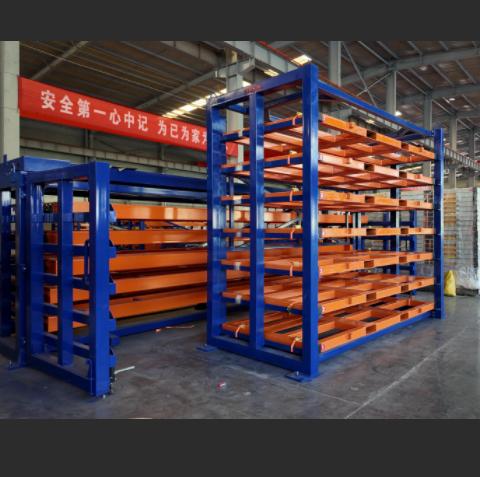

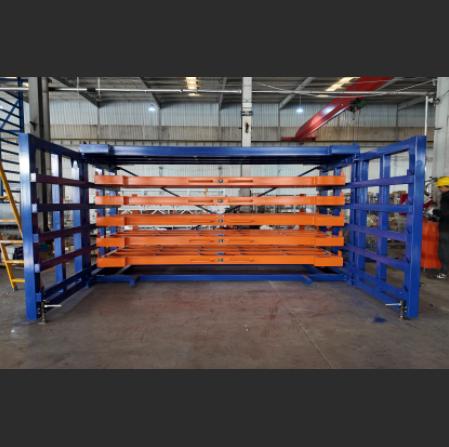

The key to this density is the rack’s vertical orientation. Rather than spreading sheets across the floor, the rack stacks tiers vertically. Each tier is a drawer that slides out horizontally for access and retracts into the rack frame for storage. The rack depth—the dimension from front to back—matches the sheet length, so no additional depth is required for storage aisles.

For narrow workshops, this means the rack can be installed in spaces such as:

• Alongside perimeter walls between machine placements
• In alcoves between structural columns
• At the end of machine rows where dead space currently exists
• Against partition walls separating work zones

Single-Operator Material Handling

Traditional ground stacking of sheet metal requires 2–3 workers. One person operates the crane, a second guides the sheet into position, and a third places or removes dunnage. This coordination takes time and ties up labor that could be deployed on production tasks.

The Herochu drawer rack reduces sheet retrieval to a single-operator process:

1. Pull the target drawer to its lock-out position
2. Attach a vacuum cup, magnet, or crane hook to the sheet
3. Lift the sheet clear of the drawer
4. Return the drawer to its lock-in position
5. Transport the sheet to the cutting machine

One person completes this sequence in under 3 minutes. The labor cost reduction is 50% compared to the 2–3 person ground stacking method. In a workshop running multiple material changes per shift, this labor saving compounds into significant weekly hours recovered for production work.

Material Search Efficiency

Finding a specific sheet in a ground-stacked pile is a time-consuming process. Sheets must be identified by visually inspecting edge markings or material tags, often requiring partial unstacking to read labels buried under other plates. Herochu data from installed systems shows that traditional ground stacking requires 30–60 minutes per material search.

The drawer-type rack solves this by organizing sheets by tier. Each drawer holds a specific material grade, thickness, or sheet size. Labels on the drawer front identify contents immediately. The operator pulls the correct drawer, retrieves the sheet, and returns to the cutting machine—total retrieval time under 3 minutes. This 90% improvement in search efficiency eliminates production idle time waiting for material.

Safety in Confined Spaces

Narrow workshops amplify the safety risks of ground stacking. Sheets leaned against walls can slip and fall. Stacks on the floor create trip hazards and obstruct emergency exits. Crane operations in tight spaces risk collisions with machinery, overhead ducting, or other workers.

The Herochu drawer rack addresses these safety concerns:

• Lock-in position: Drawers secure in the closed position, preventing accidental extension that could obstruct walkways.
• Lock-out position: Drawers lock at full extension, preventing the drawer from sliding back during sheet retrieval and protecting the operator’s hands.
• Contained footprint: All storage remains within the rack’s dimensional envelope, eliminating loose sheets on the floor and the associated trip and fall hazards.
• Controlled lifting: Sheets are lifted vertically from the extended drawer, reducing the lateral crane movements that cause collisions in confined bays.

Integration with Production Equipment

The compact rack is designed to complement the machines that consume sheet stock. Positioned adjacent to a laser cutter, shear, or press brake, the rack becomes the material feeding station for that machine. Sheets flow from storage to cutting table in minutes, without intermediate transport across the workshop.

This positioning strategy—placing storage at the point of consumption—mirrors lean manufacturing principles. Material moves directly from inventory to the first processing step, reducing handling steps and the associated labor and damage risk.

Frequently Asked Questions

How much floor space does a Herochu compact sheet metal rack require? A standard 6-tier configuration occupies approximately 20 m². This replaces roughly 100 m² of traditional ground stacking, an 80% space reduction.

Can one person operate the rack? Yes. The drawer-type design with mechanical assistance allows a single operator to retrieve sheets using a vacuum lifter, crane, or hoist. This reduces labor requirements by 50% compared to the 2–3 person teams needed for ground stacking.

How fast can a specific sheet be located and retrieved? Material search and retrieval takes under 3 minutes with organized drawer storage. Traditional ground stacking requires 30–60 minutes per search, making the Herochu system 90% faster.

Is the rack safe for narrow workshop installations? Yes. Lock-in and lock-out positions secure drawers during storage and operation. All material remains within the rack footprint, eliminating loose sheets and floor obstructions. Vertical lifting from extended drawers minimizes lateral crane movements in confined spaces.

What machines can the rack feed directly? Herochu drawer racks are designed to feed laser cutting machines, shears, press brakes, plasma cutters, and CNC punching stations. Positioning the rack adjacent to the primary cutting machine creates a direct material-to-production workflow.

Summary

Herochu’s compact sheet metal storage rack brings organized, accessible sheet storage to narrow workshops with limited floor space. The 20 m² footprint replaces 100 m² of ground stacking. Single-operator handling with mechanical drawer assistance cuts labor by 50%. Material search time drops from 30–60 minutes to under 3 minutes. Lock-in/lock-out drawer positioning and contained storage improve safety in confined bays. For fabrication shops where space is the primary constraint, this rack system converts dead corners and narrow aisles into productive, organized material storage.
