Profile Steel Pipe Racks Storage Racks – High-Density Cantilever Systems for Pipes and Tubes

Managing long, heavy materials such as steel profiles, pipes, tubes, and bars has always been a logistical challenge in industrial warehouses. Traditional floor stacking creates safety hazards, wastes valuable floor space, and slows down retrieval times. Herochu introduces a new generation of Profile Steel Pipe Racks Storage Racks – a heavy-duty, telescopic cantilever system designed to eliminate these inefficiencies. These racks are not just storage units; they are integrated material handling solutions that bring order, safety, and rapid return on investment to any facility dealing with extended-length inventories.

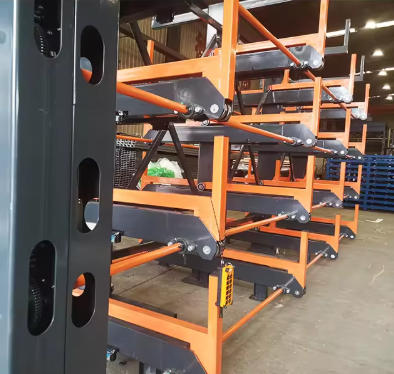

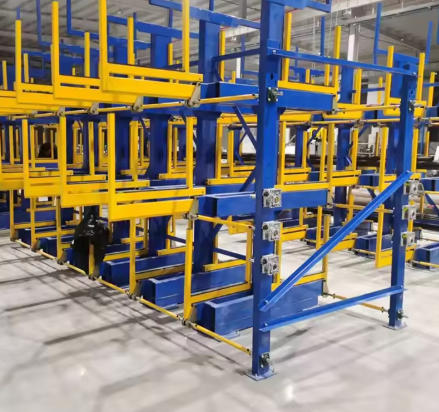

Herochu’s Profile Steel Pipe Racks Storage Racks are built around a simple yet powerful concept: roll-out drawers that fully extend into the aisle, granting 100% accessibility to every single pipe or profile stored. Unlike fixed cantilever racks where operators must reach deep into the rack or use forklifts to pry out materials, Herochu’s system brings the material directly to the operator. This design reduces the need for wide forklift aisles, allowing you to pack more storage into the same footprint. For warehouses operating with limited square footage, this density increase often reaches 50% or more.

The structural integrity of these racks is certified to the highest industrial standards. Herochu’s Profile Steel Pipe Racks Storage Racks carry CE, UE, and ISO 9001 certification, ensuring compliance with European and international safety regulations. Each rack is fabricated from welded high-tensile steel, engineered to withstand extreme loads without deflection. The base frame incorporates reinforced crossbeams and column supports that distribute weight evenly across the floor. When you load up to 5 tonnes per layer – as proven in the HC-G9055S, HC-G9055D, and HC-G12055D models – the system remains rigid and stable.

The product line offers four standard configurations, each tailored to specific warehouse dimensions and load requirements. The HC-G6053D is a double-sided bilateral assistance unit with a 3-tonne per layer capacity, 6-meter length, and four primary layers plus one additional bilateral assistance layer. Its overall dimensions are 6435x3340x1750mm, making it ideal for medium-scale operations with standard bay sizes. The HC-G9055S features a 5-tonne per layer capacity, 9-meter length, and unilateral assistance – perfect for warehouses where access is only needed from one side, such as along a wall. The HC-G9055D offers the same 5-tonne and 9-meter specs but with bilateral assistance, allowing retrieval from both sides of the aisle. Finally, the HC-G12055D extends the length to 12 meters while maintaining the 5-tonne capacity and bilateral configuration, suited for extra-long structural steel or piping.

Beyond these standard models, Herochu emphasizes full customizability. Every parameter can be adjusted to your specific operation: load-bearing capacity (from 1 to 10 tonnes per layer or more), storage length (3m to 12m+), number of layers (typically 2 to 6), and layer height (adjustable in increments as fine as 75mm). Both manual and electrically operated versions are available. Manual systems rely on a smooth roller mechanism with positive locking, while electric systems use PLC-controlled motors with cushioned start-stop for gentle handling of sensitive materials. For operations handling mixed inventory – such as different pipe diameters or cut-offs – optional divider pins and structural trays can be integrated directly into the drawers.

The operational workflow with Herochu’s Profile Steel Pipe Racks Storage Racks transforms daily logistics. Instead of a forklift operator spending minutes maneuvering to extract a single pipe from a crowded pile, a single operator pulls out the appropriate drawer, uses an overhead crane or hoist to lift the required piece, and returns the drawer – all within seconds. The roll-out design eliminates the need for a second worker to guide or steady the load, reducing labor costs and injury risks. Moreover, because each drawer can be subdivided, inventory control becomes precise: you know exactly which drawer holds which size and grade of material, enabling FIFO (first-in, first-out) or LIFO as needed.

Safety benefits are equally compelling. Traditional profile and pipe storage often involves leaning bundles against walls or stacking in pyramids – both inherently unstable. Herochu’s system contains each layer within a steel drawer that cannot tip or shift unexpectedly. The locking mechanisms prevent accidental drawer movement during loading. The CE, UE, and ISO 9001 certifications confirm that these racks have passed rigorous testing for weld integrity, load cycling, and seismic stability. For operations subject to OSHA or EU-OSHA inspections, installing certified storage racks provides documented compliance.

Return on investment for Herochu Profile Steel Pipe Racks Storage Racks is typically realized within 12 to 18 months. Savings come from multiple sources: reduced floor space requirements (avoiding building expansion or new leases), faster retrieval times (improving throughput), lower product damage (pipes no longer scratch or bend from prying), and reduced workplace injuries (lower insurance premiums and lost-time incidents). Many users report that the rack system pays for itself within the first year simply by reclaiming space previously used for wide forklift aisles.

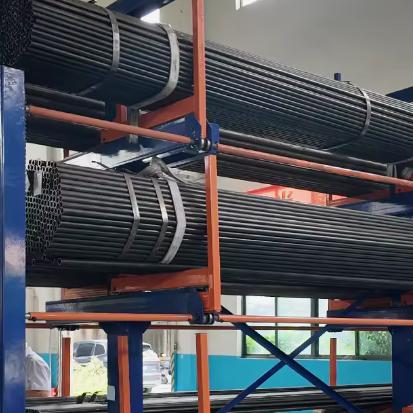

Industries that benefit most include steel service centers, tube and pipe distributors, automotive component manufacturers, construction material suppliers, and aerospace alloy warehouses. Any facility that regularly handles long, heavy, or irregularly shaped profiles will find Herochu’s system superior to static racks or ground storage. The telescopic cantilever principle is particularly effective for aluminum extrusions, stainless steel tubing, copper pipes, plastic conduit, and even timber beams – as long as the material is rigid enough to span the drawer length.

Herochu also provides full engineering support, including site surveys, CAD layout drawings, and installation supervision. The racks are shipped knocked down or fully assembled according to customer preference. Maintenance requirements are minimal: periodic cleaning of roller tracks and inspection of welds. Replacement parts – including rollers, locks, and drawer arms – are stocked for all current and discontinued models.

In summary, Herochu’s Profile Steel Pipe Racks Storage Racks represent a fundamental upgrade from traditional storage methods. With certified structural integrity, customizable dimensions, and the transformative roll-out drawer mechanism, these racks deliver measurable improvements in space utilization, operator safety, and material accessibility. Whether you choose the 3-tonne HC-G6053D or the extended 12-meter HC-G12055D, you are investing in a system designed to grow with your operations. Contact Herochu for a tailored proposal that matches your exact pipe, profile, and long product storage requirements.
