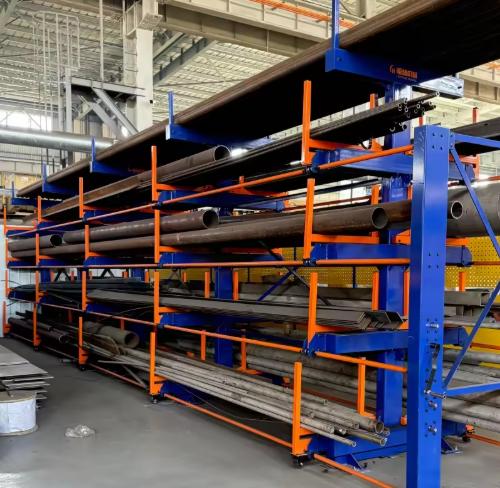

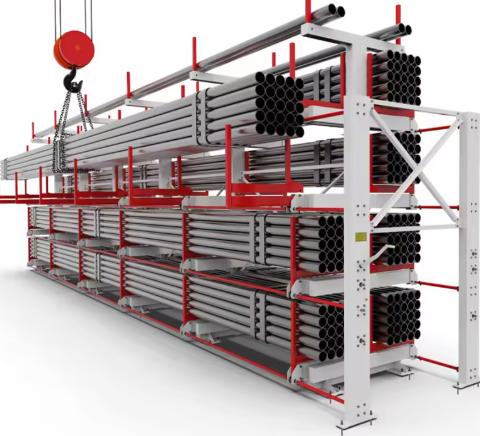

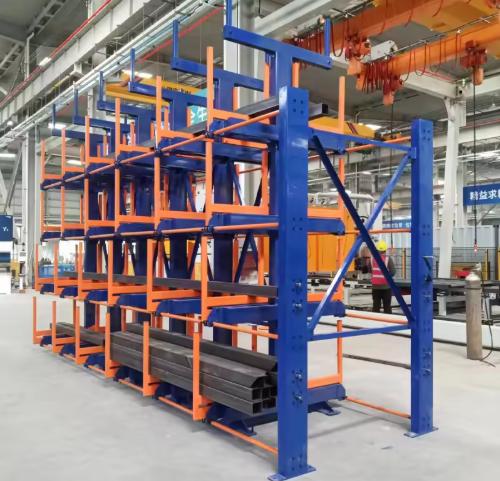

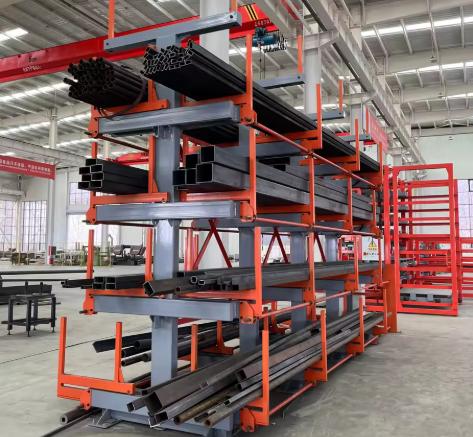

Durable Storage Rack for Long Materials – Herochu Corrosion-Resistant Cantilever Design

Long materials—whether steel pipes, aluminum profiles, timber planks, or fiberglass rods—demand storage solutions that resist two enemies: physical damage from improper support and environmental degradation from moisture or chemicals. A Durable Storage Rack for Long Materials must combine structural strength with long-term resistance to rust, wear, and impact. Herochu has developed a cantilever-based system that exceeds these requirements through meticulous material selection, surface finishing, and engineering redundancy.

Durability, in the context of industrial storage, means the rack maintains its rated load capacity and geometric integrity for decades, even under continuous use. Herochu’s durable storage racks achieve this through Q235B carbon steel construction, varnished or powder-coated finishes, and a plug-in design that eliminates weld fatigue points. Moreover, each rack is certified to ISO 9001 (quality management) and EU CE (safety), giving warehouse managers documented proof of reliability.

Material Science Behind Herochu’s Durability

The backbone of any durable storage rack is the steel grade. Herochu exclusively uses Q235B carbon steel, which offers a yield strength of 235 MPa and excellent elongation (26%). This means the steel bends slightly under extreme overload rather than fracturing suddenly—a critical safety feature. For coastal or chemical environments, we offer Q355B steel (355 MPa yield) at a surcharge.

Surface treatment is where many racks fail. Herochu provides three options, each matched to operating environments:

• Varnished (standard): A baked-on polyester varnish that resists abrasion and indoor humidity. Suitable for dry warehouses.

• Powder coated: Thicker (80–120 microns) than varnish, with superior chip resistance. Available in any RAL color.

• Galvanized (hot-dip): Immersion in molten zinc creates a metallurgical bond that protects even scratched areas through cathodic action. Recommended for outdoor or high-corrosion zones (e.g., fertilizer storage, salt-laden air).

Additionally, all telescopic components (if ordered) receive zinc plating or electroless nickel plating to maintain smooth movement without galling.

Structural Features That Enhance Long-Term Reliability

1. Plug-in installation: No welding or drilling on-site means no introduced corrosion points. Arms lock into uprights using gravity and a secondary safety clip. If an arm becomes damaged, it can be replaced individually without dismantling the rack.

2. Reinforced arm cross-section: Each cantilever arm features a tapered I-beam or rectangular tube profile with internal stiffeners. This prevents the arm from twisting under eccentric loads (e.g., a bundle of pipes resting near the tip).

3. Base plate anchoring: The upright base includes pre-drilled holes for chemical anchors or expansion bolts. For movable racks, the base incorporates a thick wear plate to resist deformation from forklift contact.

4. Impact protection: Herochu offers optional corner guards made from recycled rubber or polyurethane. These absorb accidental forklift impacts that would otherwise bend the upright column.

Load Testing and Certification for Long Material Storage

Every durable storage rack from Herochu undergoes a four-stage verification:

• Static load test: Loaded to 150% of rated capacity for 24 hours, measuring deflection at arm tip. Maximum allowable deflection is L/200 (e.g., 10 mm for a 2000 mm arm).

• Dynamic extension test (telescopic models): 10,000 full extension-retraction cycles under 75% load.

• Salt spray test (ASTM B117): 500 hours minimum for powder-coated samples; 1000 hours for galvanized.

• Seismic simulation: For racks installed in earthquake zones, we offer additional cross-bracing and base isolators.

The result is a rack that carries the CE mark and meets ISO 9001:2015 documentation. Herochu provides a detailed test report with each shipment.

Why Long Materials Specifically Require Durable Storage

Unlike palletized goods, long materials are prone to bending and surface scratching. A rack that sags under load will permanently deform stored pipes, rendering them unusable. Similarly, rust on the rack surface can transfer to moisture-sensitive materials like bare steel tubes. Herochu’s combination of high-strength steel, anti-rust finishes, and precision engineering ensures that:

• Arm tips remain level within 2 mm over 2000 mm span under full load.

• No sharp edges or weld spurs exist that could gouge soft aluminum or plastic.

• The varnished surface has a smooth, non-porous finish that resists dirt accumulation and is easy to clean.

Case Example: Pipe Distributor Reduces Damage by 90%

A Midwest US pipe distributor switched from ground stacking to Herochu durable storage racks. Previously, nested pipes suffered abrasion and ovalization. After installation, each pipe size had dedicated cantilever arms with padded liners (optional). The distributor reported a 90% reduction in product damage and a payback period of 11 months from lowered waste.

Customization for Specific Long Materials

Herochu’s racks are not one-size-fits-all. We offer:

• Arm spacing: Adjustable in 50 mm increments to match your material diameters.

• Arm pads: Snap-on polyurethane or rubber sleeves to protect delicate surfaces.

• Divider posts: Vertical separators on each arm to prevent rolling of round pipes.

• End stops: Removable pins or plates to secure bundles against sliding off the arm tip.

Conclusion

When your inventory consists of long, valuable, or safety-critical materials, settling for a standard rack is a false economy. Herochu’s Durable Storage Rack for Long Materials delivers verified strength, corrosion protection, and impact resistance through Q235B steel, advanced surface finishing (varnished, powder coated, or galvanized), and international certifications. Whether storing profiles, pipes, wood, or composites, these racks will outlast your facility’s lease. Contact Herochu for a durability assessment and sample testing.
